HP DL360 G5 - Rackmount Rail Guide

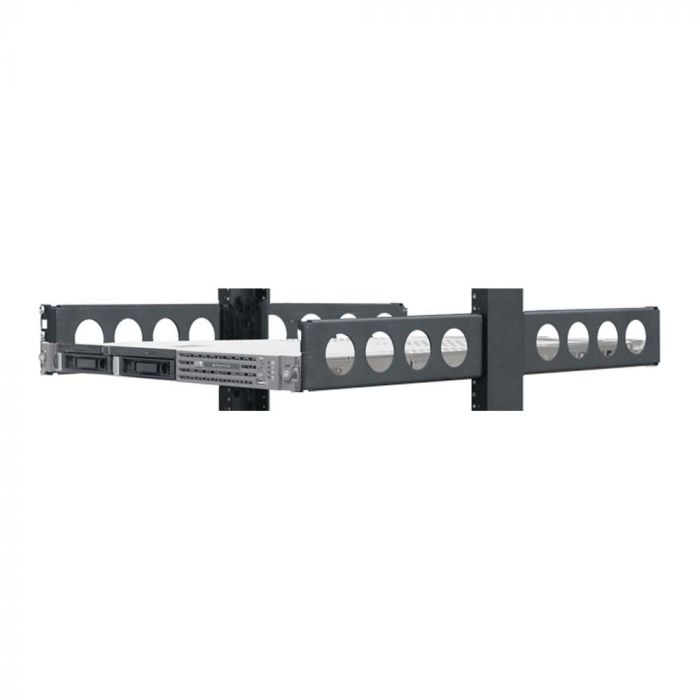

Our Rackmount Rail Guide serves to show how the HP DL360 G5 can be rackmounted in both 4 post and 2 post configurations. RackSolutions offers the 1UKIT-009 as an alternative to the HP rails for this server chassis, The rail kit mounts in 2 post racks.
Note: Your server may look different than the one pictured
+ HP Standard 1RU Universal Rail Kit
The standard rail kit supports square or round holed racks with an installation depth of 22.25" - 37.75"
+ 2Post center mount racks
Use fixed rail kit 1UKIT-009
+ 2Post flush mount racks
Use fixed rail kit 1UKIT-009
+ 4Post square hole racks
Use the HP standard 1U universal rail kit for HP square racks. (29.12" mounting depth)
Use the HP 3rd party rail kit for all other square racks
Cage nuts are required
+ 4Post round hole racks
Use the HP 3rd party rail kit
+ 4Post threaded hole racks
Use the HP 3rd party rail kit
+ Double 2Post racks
Use the HP 3rd party rail kit
+ Wall Mounting
Use HP Universal Rail Kit
Use 1URACK-110 Wall Mount Kit
Rack Issues, Problems
Call RackSolutions if you have racking issues or if your rack is not in the ranges listed above.
