HP DL380 G1 - Rackmount Rail Guide
Our Rackmount Rail Guide serves to show how the HP DL380 G1 can be rackmounted in both 4 post and 2 post configurations. RackSolutions offers the 3UKIT-109 and 2UKIT-009 as mounting solutions for this server chassis.

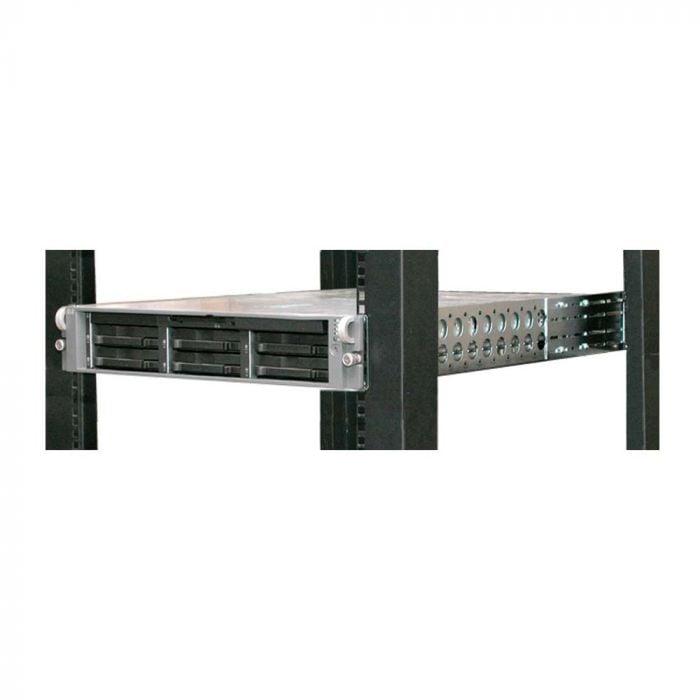

Note: Your server may look different than the one pictured
+ HP Standard Sliding Rails
Used for HP square hole racks only (29.12" mounting depth)
+ 2Post center mount
Use the 2UKIT-009 fixed rail kit and convert 2RU of 2Post rack to 4Post using 2POST-2UKIT (1 kit mounts 1 server)
+ 2Post flush mount
Use the 2UKIT-009
+ 4Post square hole racks
Use the standard rails for HP and 4Post square hole racks only. (Mounting depth range is 28 7/8" to 29 1/8")
Use the 3UKIT-109 for all other depth 4 Post square hole racks (mounting depth 3" to 31 9/16")
+ 4Post round hole racks
Use the 3UKIT-109 (mounting depth 3" to 31.56")
+ 4Post threaded hole racks
Use the 3UKIT-109 (mounting depth 3" to 31.56")
+ Double 2Post racks
Use the 3UKIT-109 (mounting depth 3" to 31.56")
+ Wall Mounting
Use HP Universal Rail Kit
Use 1URACK-110 Wall Mount Kit
Rack Issues, Problems
Call RackSolutions if you have racking issues or if your rack is not in the ranges listed above.
