HPE DL380 Gen 10 - Rackmount Rail Guide

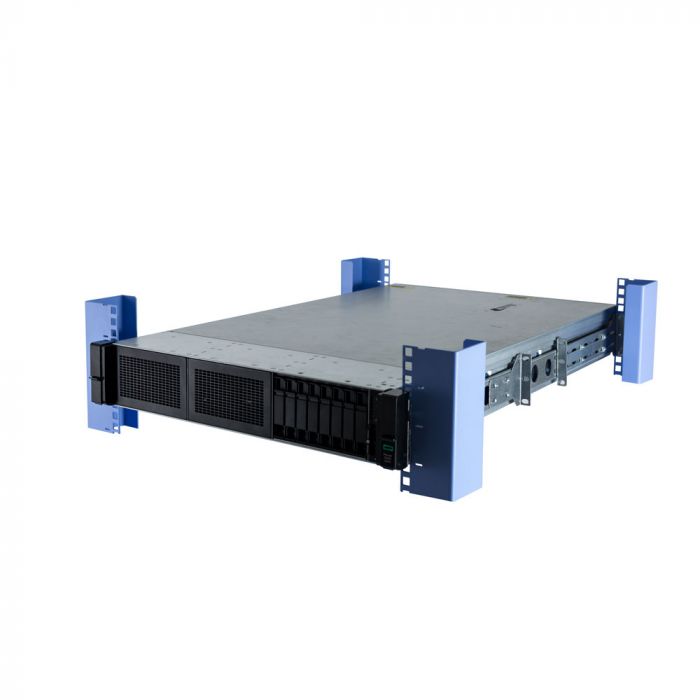

Our Rackmount Rail Guide serves to show how the HP DL380 Gen 10 can be rackmounted in both 4 post and 2 post configurations. RackSolutions offers the 122-2447 as an HP alternative rail for this server chasis, The rail kit mounts in both 4 post and 2 post racks.
+ HPE Standard 2RU Universal Rail Kit
Used for most 19" 4Post Racks.
Compatible with both square and round hole racks.
Rack mounting depth must be between 24" and 36" (610-914mm)
+ 2Post Center Mount Racks
Use HP standard 2RU universal rail kit.
Convert 2RU of 2Post rack to 4Post using 2POST-2UKIT (one kit mounts one server).
Compatible with 3" wide side channels. Alternative kits available for wider side channels.
+ 2Post Flush Mount Racks
Use the HP standard 2RU universal rail kit.
Convert 4RU of the 2Post rack to a 4Post rack using 4UKIT-003.
Compatible with 3" wide side channels. Alternative kits available for wider side channels.
+ Alternative Rails
2Post or 4Post Rail Kit 122-2447
Compatible with 2Post racks with side channel from 3" to 10".
Centermount or Flushmount configurations.
COmpatible with racks with installation depths from 24" to 32".
Compatible with all mounting interfaces: square, round or threaded holes.
+ Wall Mounting
Use HP Universal rail kit.
Use 2URACK-110 Wall Mount Kit
Rack issues, problems?
Call RackSolutions if you have racking issues or if your rack is not in the ranges listed above.
