HP DL380 G4 - Rackmount Rail Guide
Our Rackmount Rail Guide serves to show how the HP DL380 G4 can be rackmounted in both 4 post and 2 post configurations. RackSolutions offers the 2POST-2UKIT and 4UKIT-003 as mounting solutions for this server chassis.
Note: Your server may look different than the one pictured
+ HP Standard 2RU Universal Rail Kit
Used for Most 19" 4Post Racks.
Compatible with both square and round holed racks.
Rack mounting depth must be between 22" and 35 3/4"

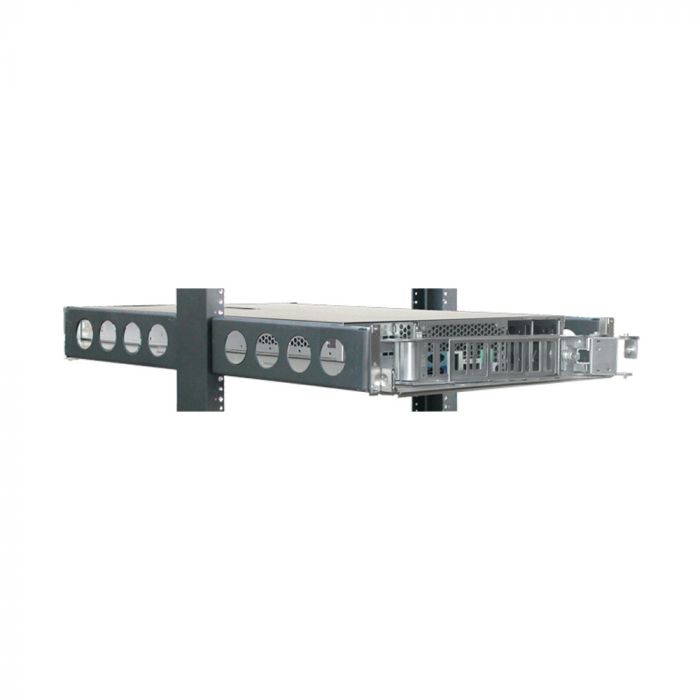

+ 2Post Center Mount
+ 2Post Flush Mount
+ 4Post Racks
Use the HP Standard 2RU Universal Rail Kit
Tool-free support for racks with square,round holes
Adjustable rack depth 22 - 35.7" (559 - 907 mm)
Fits square, round holes
Supports 10-31, 12-24, metric M5, unthreaded
+ Wall Mounting
Rack Issues, Problems
Call RackSolutions if you have racking issues or if your rack is not in the ranges listed above.
