HPE DL560 Gen 10 - Rackmount Rail Guide
Our Rackmount Rail Guide serves to show how the HPE DL560 Gen 10 can be rackmounted in both 4 post and 2 post configurations. RackSolutions offers the 122-2447 as an HP alternative rail for this server chasis, The rail kit mounts in both 4 post and 2 post racks.

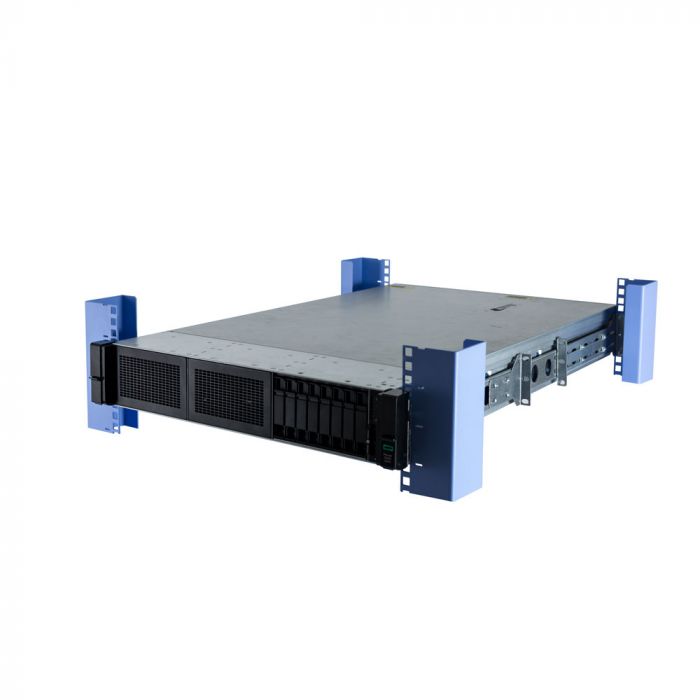

Note: Your server may look different than the one pictured
+ HPE Standard 2RU Universal Rail Kit
Used for most 19" 4Post Racks.
Compatable with both square and round hole racks.
Rack mounting depth must be between 24" and 36" (610-914mm)
+ 2Post Center Mount Racks
Use HPe standard 2RU universal rail kit.
Convert 2RU of 2Post rack to 4Post using 2POST-2UKIT (one kit mounts one server).
Compatible with 3” wide side channels. Alternative kits available for wider side channels.
+ 2Post Flush Mount Racks
+ Alternative Rails
2Post or 4Post Rail Kit 122-2447
Compatible with 2Post racks with side channel from 3" to 10". Centermount or Flushmount configurations.
Compatible with racks with installation depths from 24" to 32".
Compatible with all mounting interfaces: square, round, or threaded holes.
+ Wall Mounting
Rack issues, problems?
Call RackSolutions if you have racking issues or if your rack is not in the ranges listed above.
