HP DL580 G5 - Rackmount Rail Guide
Our Rackmount Rail Guide serves to show how to rack a HP DL580 G5 both 4 post and 2 post configurations. RackSolutions offers the 3UKIT-009 / 3UKIT-109 as an HP alternative rail for this server chassis, The rail kits mount in both 2 post and 4 post racks respectively.

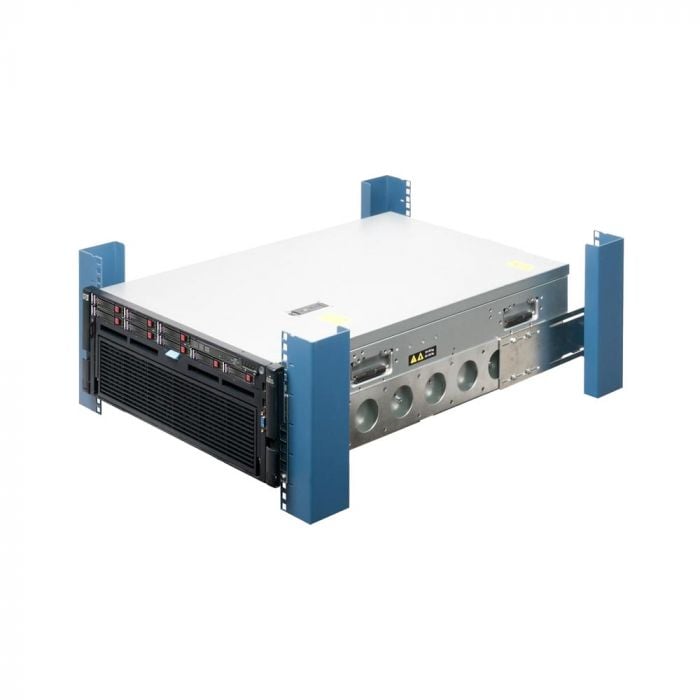

Note: Your server may look different than the one pictured
+ HP Standard 3RU-7RU Universal Rail Kit
Used for most square hole racks, round hole racks or threaded hole racks. Rack mounting depth must be between 24" and 36"
+ 4Post square hole racks
+ 4Post round hole racks
+ 4Post threaded hole racks
+ Double 2Post racks
Rack Issues, Problems
Call RackSolutions if you have racking issues or if your rack is not in the ranges listed above.
