HP DL580 G7 - Rackmount Rail Guide
Our Rackmount Rail Guide serves to show how to rack a HP DL585 G7 both 4 post and 2 post configurations. RackSolutions offers the 3UKIT-009 / 3UKIT-109 as an HP alternative rail for this server chassis, The rail kits mount in both 2 post and 4 post racks respectively.

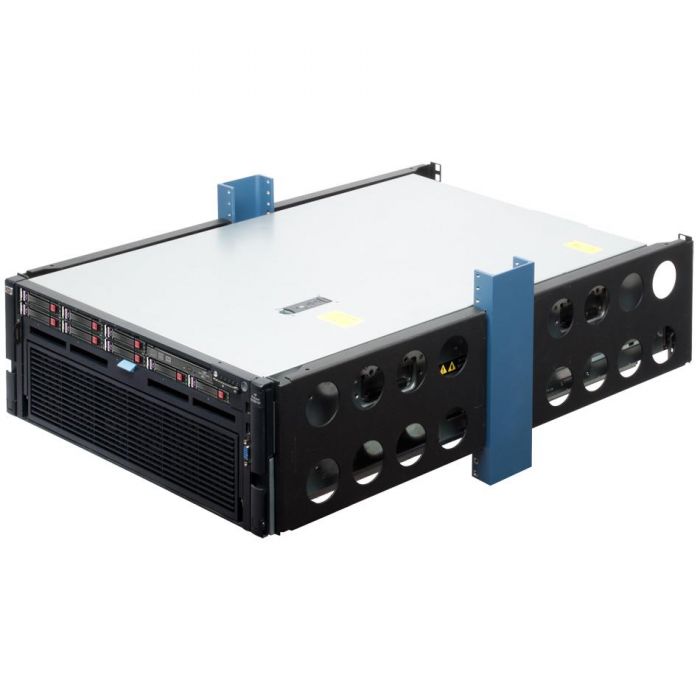

Note: Your server may look different than the one pictured
+ HP Standard 3RU-7RU Universal Rail Kit
Used for most square hole racks, round hole racks or threaded hole racks. Rack mounting depth must be between 28 1/8" - 36 1/2"
See HP's DL580 rail kit (opens in a new tab) details
+ 2Post center mount
Convert 4RU of 2Post rack to 4Post using HP's rails and a
2POST-4UKIT. One kit mounts one server.
Compatible with upright depths from 3 - 6" (76 - 152 mm)
If you don't have HP's universal rail kit, use RackSolutions' Universal Rails, 3UKIT-009
+ 4Post square hole racks
Use HP's standard 3RU - 7RU universal rail kit or RackSolutions' Universal Rails, 3UKIT-109
Call RackSolutions for depths less than 28 1/8"
+ 4Post round hole racks
Use HP's standard 3RU - 7RU universal rail kit or RackSolutions' Universal Rails, 3UKIT-109
Call RackSolutions for depths less than 28 1/8"
+ 4Post threaded hole racks
Use HP's standard 3RU - 7RU universal rail kit or RackSolutions' Universal Rails, 3UKIT-109
Call RackSolutions for depths less than 28 1/8"
+ Double 2Post racks
Use HP's standard 3RU - 7RU universal rail kit or RackSolutions' Universal Rails, 3UKIT-109
Call RackSolutions for depths less than 28 1/8"
Rack Issues, Problems
Call RackSolutions if you have racking issues or if your rack is not in the ranges listed above.
