HP DL580 G1 - Rackmount Rail Guide
HP Standard 2U Universal Rail KitUsed for most 19" 4Post Racks.
Our Rackmount Rail Guide serves to show how the HP DL580 G3 can be rackmounted in both 4 post and 2 post configurations. RackSolutions offers the 2POST-2UKIT and 4UKIT-003 as mounting solutions for this server chassis

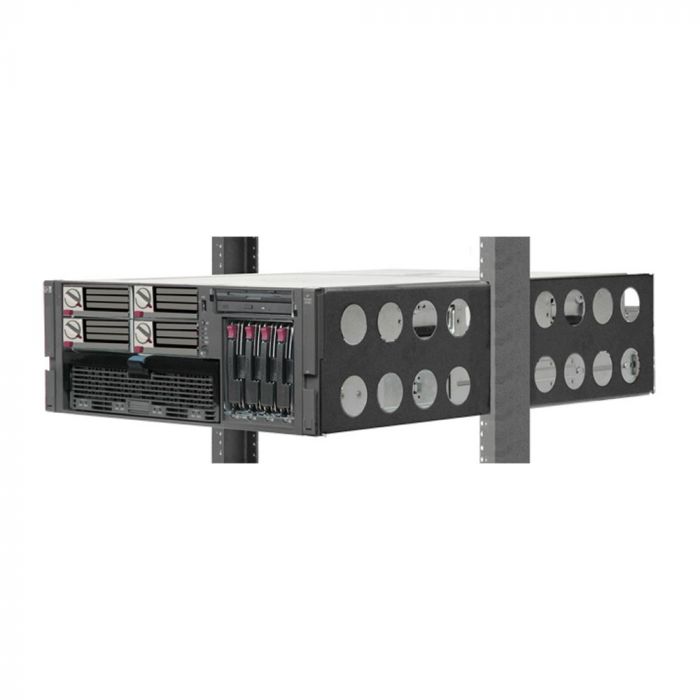

Note: Your server may look different than the one pictured
+ Rail Options
Call for Support
+ 2Post center mount
Convert 4RU of 2Post rack to 4Post using 2POST-2UKIT (one kit mounts one server)
Compatible with upright depths from 3 - 6" (76 - 152 mm)
+ 2Post flush mount
Convert 4RU of 2Post rack to 4Post using 4UKIT-003 (one kit mounts one server)
Compatible with upright depths from 3 - 6" (76 - 152 mm)
+ 4Post square hole racks
Use the HP standard 3RU - 7RU universal rail kit
Call RackSolutions for depths less than 23 3/4"
+ 4Post round hole racks
Use the HP standard 3RU - 7RU universal rail kit
Call RackSolutions for depths less than 23 3/4"
+ 4Post threaded hole racks
Use the HP standard 3RU - 7RU universal rail kit
Call RackSolutions for depths less than 23 3/4"
+ Double 2Post racks
Use HP Standard Quick-Rails
Call RackSolutions for depths less than 23 3/4"
Rack Issues, Problems
Call RackSolutions if you have racking issues or if your rack is not in the ranges listed above.
