2U Cobra 130-A Rail for Dell

$284.00 $258.18
Out of stock
SKU
122-9089

Mounts in 4 Post Racks

  • Only compatible with the Dell PowerEdge R760xd2
  • Mounting depth: 27 - 30" (686 - 762mm)
  • Slam latch fully secures the server into place
  • Sliding rack rails provides easy serviceability

Alternative to Dell OEM Rail Kits

  • High-quality dry slide that lasts longer than ball bearing kits
  • Works with all EIA 19” standard racks
  • Supports L and C rack upright shapes
  • Works with square, round, and #12 threaded holes racks
  • Original Dell rail kit not required

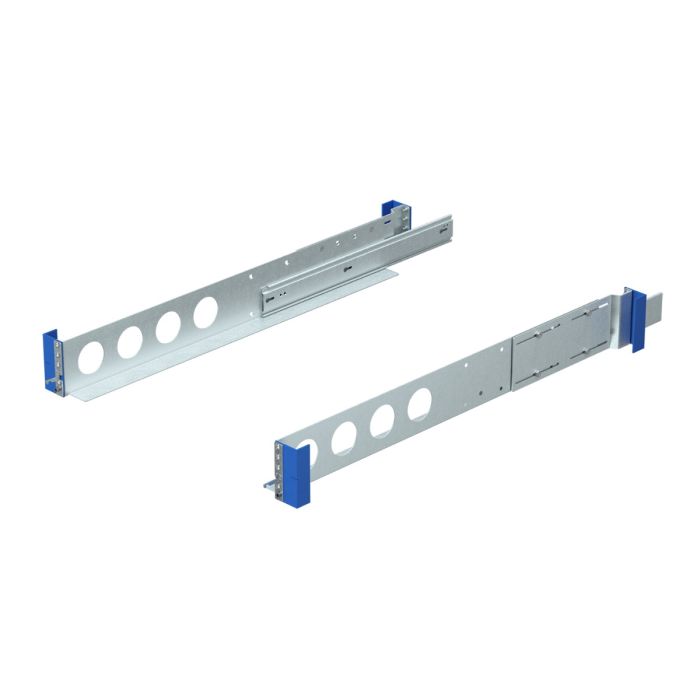

The RackSolutions 2U Cobra 130-A Rail for Dell provides a stable, sturdy and easy-to-install sliding rail solution for the Dell PowerEdge R760xd2. These slide rails are compatible with standard 19" EIA-310 server racks, and only mount in 4 post server racks with square, round, and #12 threaded holes. Designed to last longer than ball-bearing rail kits, the dry slides allow you to extend equipment in and out of your server rack for easier serviceability.


Dell Slam Latch Retaining Plate  (desktop image)Dell Slam Latch Retaining Plate  (mobile image)

Dell Slam Latch Retaining Plate

The 2U retaining plate allows the Dell PowerEdge R760xd2 server to be secured in place when using our server rail. The retaining plate provides full securement at the front of the chassis,

Rail Depth Does Not Exceed Server Depth (desktop image)Rail Depth Does Not Exceed Server Depth (mobile image)

Rail Depth Does Not Exceed Server Depth

These server rails do not exceed beyond the depth of the Dell PowerEdge R760xd2 server. This ensures that the rail kit does not obstruct the rear rack equipment such as PDUs.

Dell Compatibility (desktop image)Dell Compatibility (mobile image)

Dell Compatibility

The 2U Cobra 130-A Rail for Dell is specifically designed for the Dell PowerEdge R760xd2.

More Information
BABA Compliant Yes
RoHS Compliant Yes
TAA Compliant Yes
UL Compliant No
ETL Compliant No
Weight (lbs) 9.400000
Country of Manufacture United States
Included Hardware Kit Contents:
  • (2) Outer Rail (Left & Right)
  • (2) Inner Rail (Left & Right)
  • (2) Rear Bracket
Rear Bracket Hardware:
  • (9) 8-32 x .312 Flat Head Screw
  • (9) 8-32 Keps Nut
Mounting Hardware:
  • (22) 8-32 x .500 Pan Head Screw
  • (2) Latch Plate (Left & Right)
  • (2) Mounting Plate
Rail OEM Dell
Fixed/Sliding Sliding
Tool-less/Standard Standard
Mounting Depth Range 27 - 30" (686 - 762mm)
Rack Units 2U
Rack Type 4 Post
Hole Type Compatible with square, round, and #12 threaded holes racks
