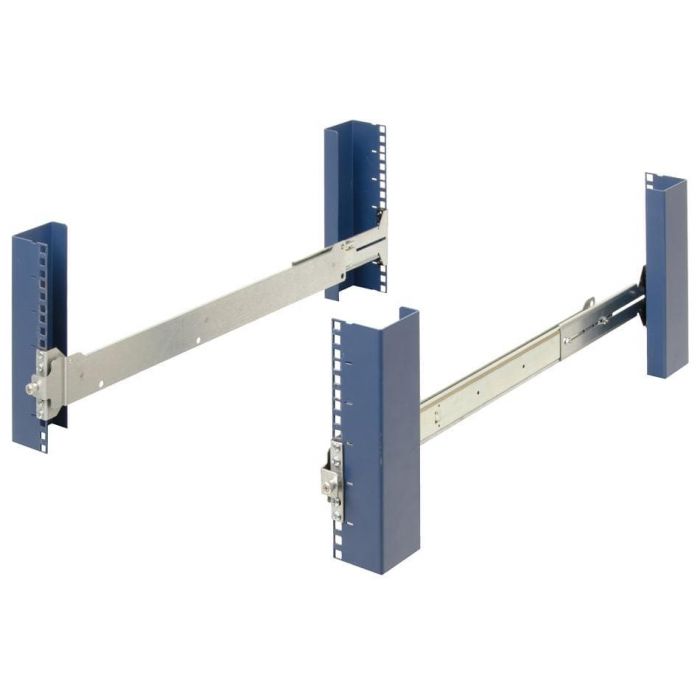

2U 115-D Fixed Rail for Dell (Ball Bearing)
$342.00
$310.91
Quote Now / Temporarily Out of Stock
SKU
120-3662
Fits any 4 Post rack
- Fits square, round, threaded holes
- Mounting depth: 12 - 31" (304 - 787 mm)
- All hardware for install is included
Rackmounts Dell T7600
- Computer chassis is secured to the rails
- Uses 5U of space once chassis has been mounted
- Rails are a ball-bearing slide type
- Thumbscrews allow the tower to be secured to the front of the rack
Dell Compatible Products
- Dell Precision T7600
- Dell Precision T7610
- Dell Precision T7910
The Sliding Rails for the Dell T7600, T7610 and T7910 mounts in any EIA-310, 19" rack with square, round or threaded holes. The tower is secured to the rails with screws on the side of the chassis. The Sliding Rails for the Dell T7600 has a mounting depth range of 12 - 31" (304 - 787 mm). Thumbscrews allow rails for the tower to be secured to the front of the rack. Cage nuts are required for square hole racks.
2Post Mounting
- 2Post Center Mount: Requires the 2POST-2UKIT
- 2Post Flush Mount: Requires the 4UKIT-003
| Made In America | Yes | BABA Compliant | No | RoHS Compliant | Yes | TAA Compliant | Yes | UL Compliant | No | ETL Compliant | No | Weight (lbs) | 8.450000 | Country of Manufacture | United States | OEM Compatibility | Dell | Product Line | Precision | Form Factor | Tower | U Height | 2U | Rack Type | 4 Post | Rack Hole Type | 10-32 Thread, 12-24 Thread, M6 Thread, Square Hole | Fixed/Sliding | Fixed | Weight Capacity | 30 - 100 lbs | Finish | Zinc plated | Dell Part Number | 120-3662 - A7512334 For a full list of Dell SKUs setup in the Dell ordering system visit our Dell SKU page. |
Ingram Part Number | 120-3662 - UQ0914 |
|---|
Kit Contents:
- (2) Rail Assembly (Left & Right)
- (2) Rear Bracket
Rail Hardware:
- (2) 6-32 x .250 Pan Head Screw
- (4) 8-32 x .375 Truss Head Screw
- (6) 10-32 x .312 Flat Head Screw
- (2) 10-32 Keps Nut
- (4) 8-32 Keps Nut
Mounting Hardware:
- (16) 10-32 x .500 Pan Head Screw
- (16) 12-24 x .500 Pan Head Screw
- (16) 12-24 Cage Nut
- (16) 12-24 Square Nut
- Precision T7600
- Precision T7610
- Precision T7910
