HP DL380 Gen 8, Gen 9 & Gen 10, DL560 Gen 8 & Gen 10 Rack Rails


Availability: In stock

HP DL380 Gen 8, Gen 9 & Gen 10, DL560 Gen 8 & Gen 10 Rack Rails

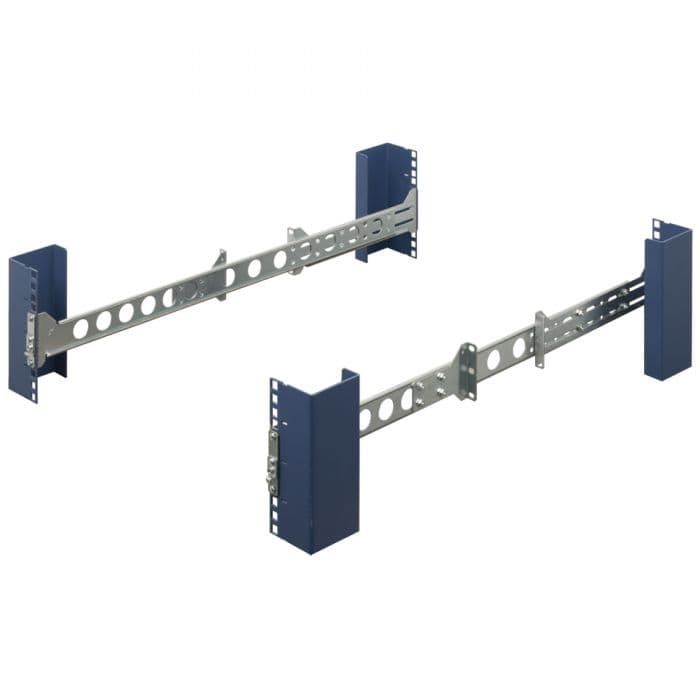

Fits any 4 Post rack

  • Non-ball bearing, slide rails
  • Square, round, threaded hole compatible
  • Adjustable mounting depth
  • HP rail kit not required
  • Mounting Depth Range: 3.0"-32.0"

Alternative to HP DL380 Gen 8, DL560 Gen 8, Gen 9 & Gen 10 rail kit

  • Mounts DL380 Gen 8 & Gen 9 in 4Post racks
  • Mounts DL380 Gen 8 & Gen 9 in any 2Post Relay Rack

Fits any 2 Post rack

  • Center mounts in 2 Post rack
  • Works with 3" - 6" uprights

HPE Servers
Rack Solutions Promise
Product Name SKU Price Qty
HP DL380 Gen 8, Gen 9 & Gen 10, DL560 Gen 8 & Gen 10 Rack Rails 122-2447
Excl. Tax: $135.00 Incl. Tax: $148.50



This slide rail kit allows the HP DL380 Gen 8 to be installed in any type of server rack. Works with DL380, Gen 8. These rails replace the HP rail kit that would normally come with the sever. This DL380 Gen 8,Gen 9 & Gen 10 rail kit allows the server to be installed in typical 4Post server racks as well as 2Post server racks. These rails are considered a dry slide type. They allow the server to slide in and out, but they are not ball bearing slides. Also, the rails do not include a stop catch mechanism that prevents the server from sliding completely out of the rack when removing it for servicing.

Additional Information

Additional Information

Compatibility HP DL380 Gen 8
HP DL380e Gen 8
HP DL560 Gen 8
HP DL380 Gen 9
HP DL560 Gen 9
HP DL180 Gen 9
HP DL 80 Gen 9
HP DL380 Gen 10
HP DL560 Gen 10
HP DL180 Gen 10
HPE DL385 Gen10 (Expected compatibility but server has not been tested)
Fixed/Sliding Sliding
Tool-less/Standard Standard
Rail Type Non-ball bearing slides
Mounting Depth Range 18.5" - 32" (469.9 mm - 812.8 mm)
Tech Notes This rail kit replaces the HP rail kit in installations where the HP rail kit is incompatible with the existing server rack
Finish Zinc plated
Rack Units 2U
Rack Type 2 Post , 4 Post
RoHS Compliant Yes
Hole Type Square, round, threaded
TAA Compliant Yes
