Lenovo/IBM System M5 Slide Rails


Availability: In stock

Lenovo/IBM System M5 Slide Rails

Fits any 4Post rack

  • Square, round, threaded holes.
  • Mounting depth of 3 - 30" (76.2 - 762 mm).
  • Lenovo/IBM rail kit not required.
  • Supports L, C, Z and ? rack upright shapes

Alternative to Lenovo/IBM rail kit

  • High quality, dry slide rail kit

Fits any 2Post rack

  • Center mounts in 2Post rack
  • Works with 3" - 6" uprights
Rack Solutions Promise
Product Name SKU Price Qty
Lenovo/IBM System M5 Slide Rails 122-4818
Excl. Tax: $125.00 Incl. Tax: $137.50

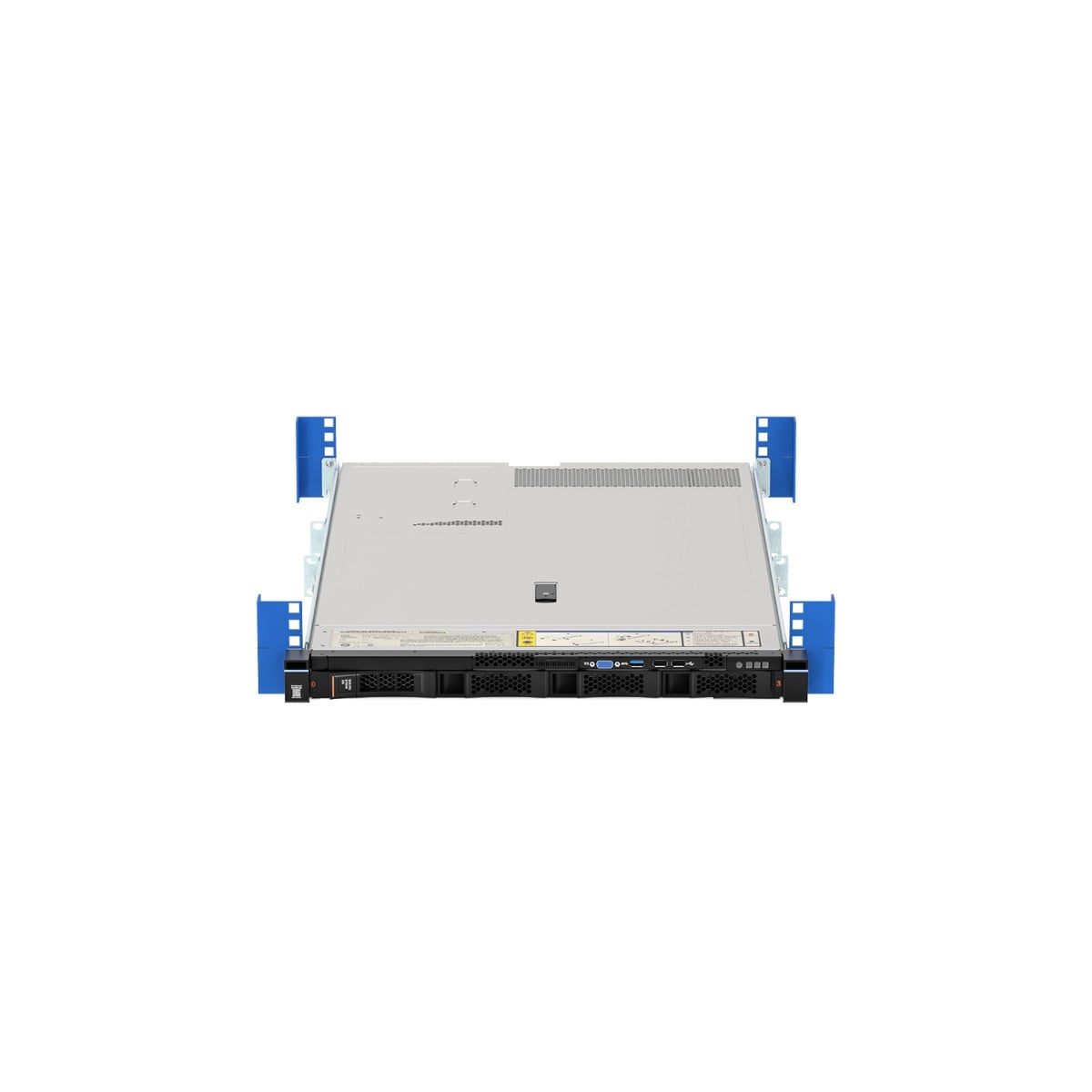

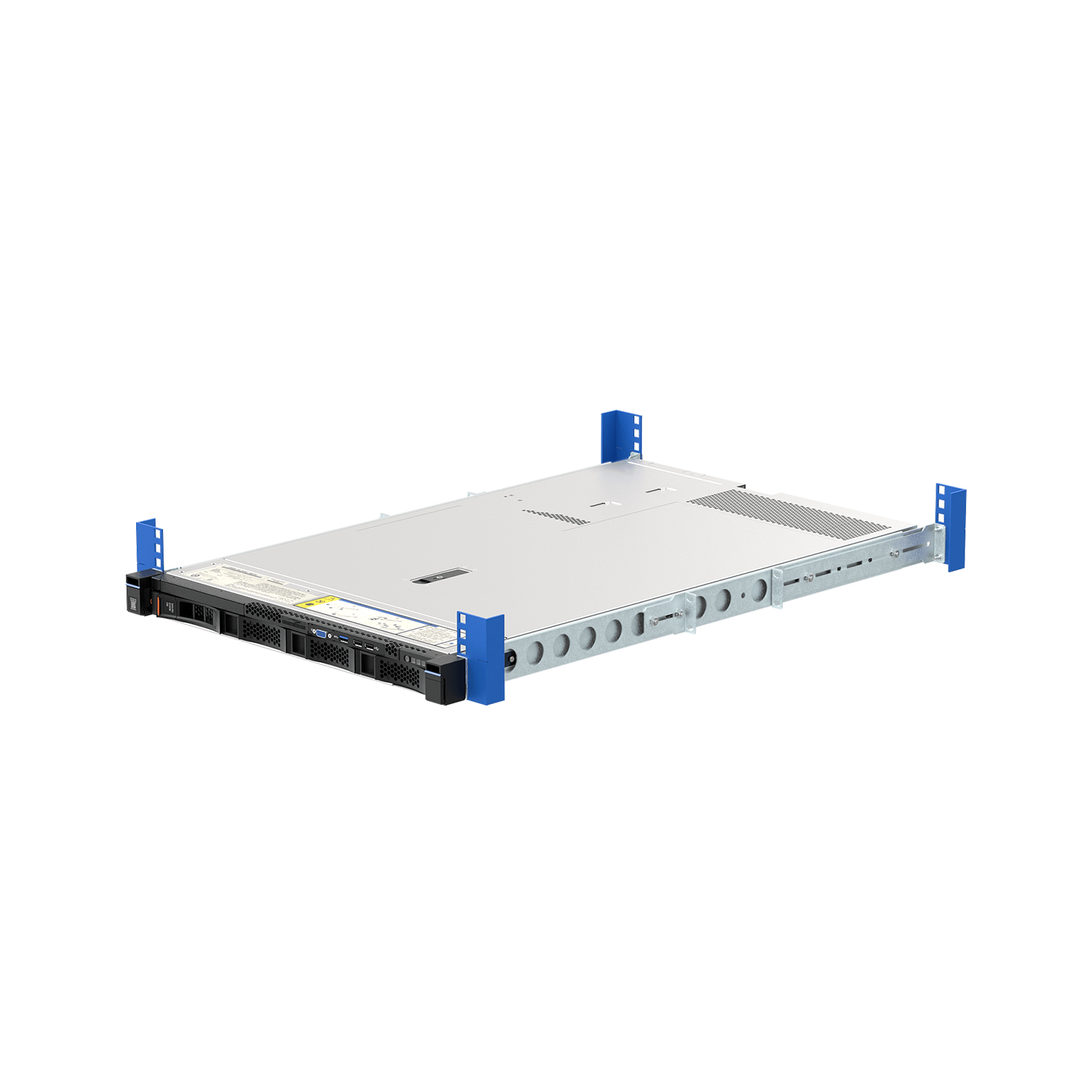

The Lenovo/IBM System x3250 M5, x3550 M5 and x3650 M5 Slide Rails can provide a stable, sturdy and easy-to-install sliding rail solution almost any server racks. Lenovo/IBM System M5 Slide Rails are compatible with standard 19" EIA-310 server racks, and can work with either 2 post or 4 post models. The device is designed to fit in racks using either standard square, round or threaded holes, and feature an adjustable mounting depth between 3” - 30" (76.2 - 762 mm). This rail kit is not a ball-bearing rail kit.

Additional Information

Additional Information

Compatibility Lenovo X3250 M5
Lenovo X3550 M5
Lenovo X3650 M5
IBM x3250 M5
IBM x3550 M5
IBM x3650 M5
Lenovo Converged HX 1000 Series
Lenovo Converged HX 2000 Series
Lenovo Converged HX 3000 Series
Lenovo Converged HX 5000 Series
Lenovo Converged HX 7000 Series
Rail OEM IBM, Lenovo
Fixed/Sliding Sliding
Tool-less/Standard Standard
Included Hardware Assorted hardware included
Assembly Notes Phillips head screwdriver required
Rail Type Dry Slide Rails
Mounting Depth Range 3” - 30" (76.2 - 762 mm)
Rack Units 1U
Rack Type 2 Post , 4 Post
Amazon ASIN B0146IN602
RoHS Compliant Yes
Hole Type Compatible with round, square and threaded holes.
TAA Compliant Yes
