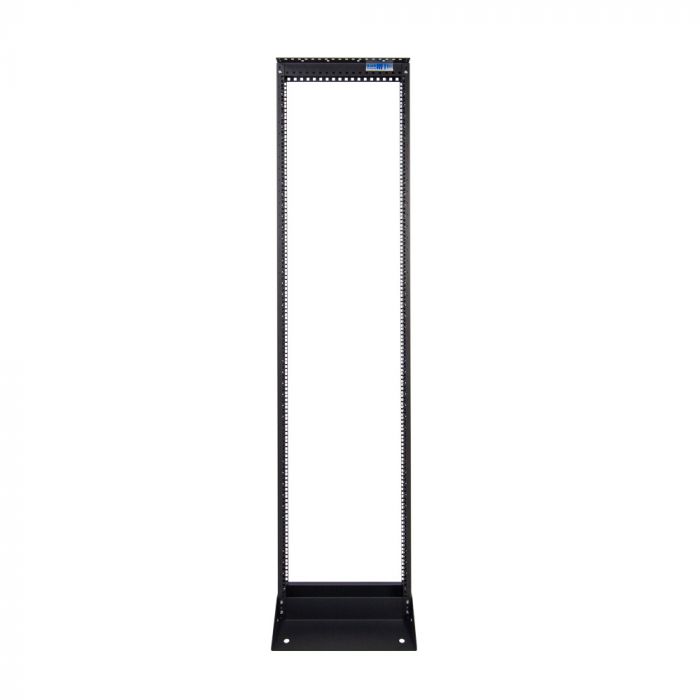

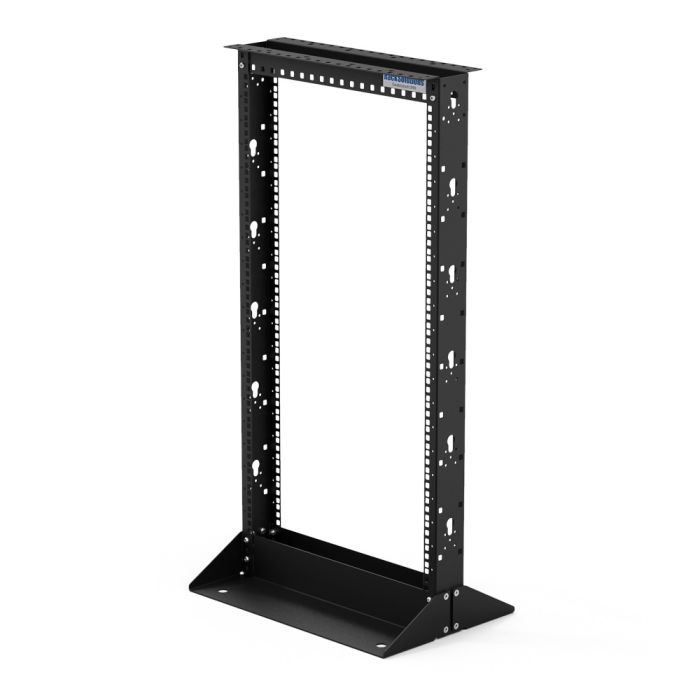

TechEdge 2Post Relay Racks
NOTE: P/N 131-6513 and 101-6724 and an additional rack required for 2-Post to 4-Post conversion
Relay Rack Designed for Versatility
- Universal square mounting holes
- 1000 lb load capacity
- Constructed from sturdy 13 GA steel
- Tool-less Button-Mounting Holes for PDUs and vertical cable management
- Self-squaring design for easy assembly
- Caster kit add-on available for added mobility

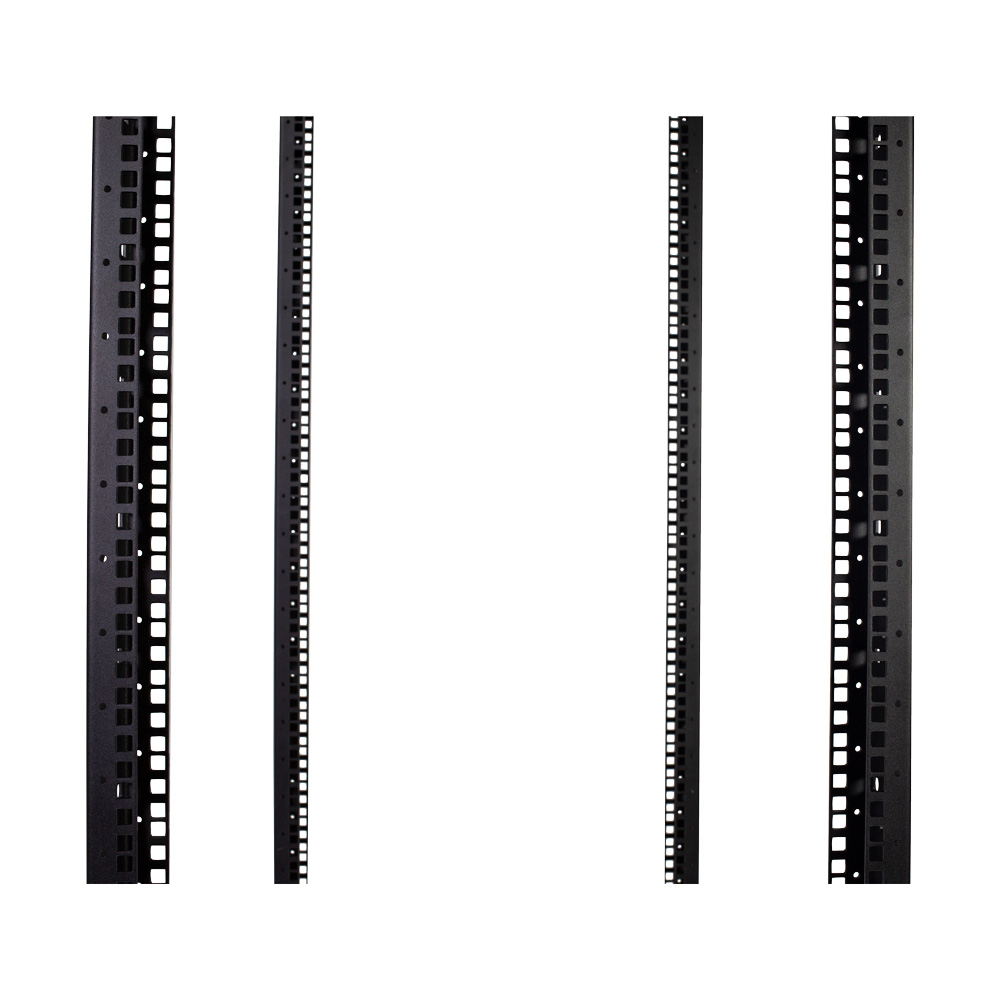

Universal Square Mounting Holes

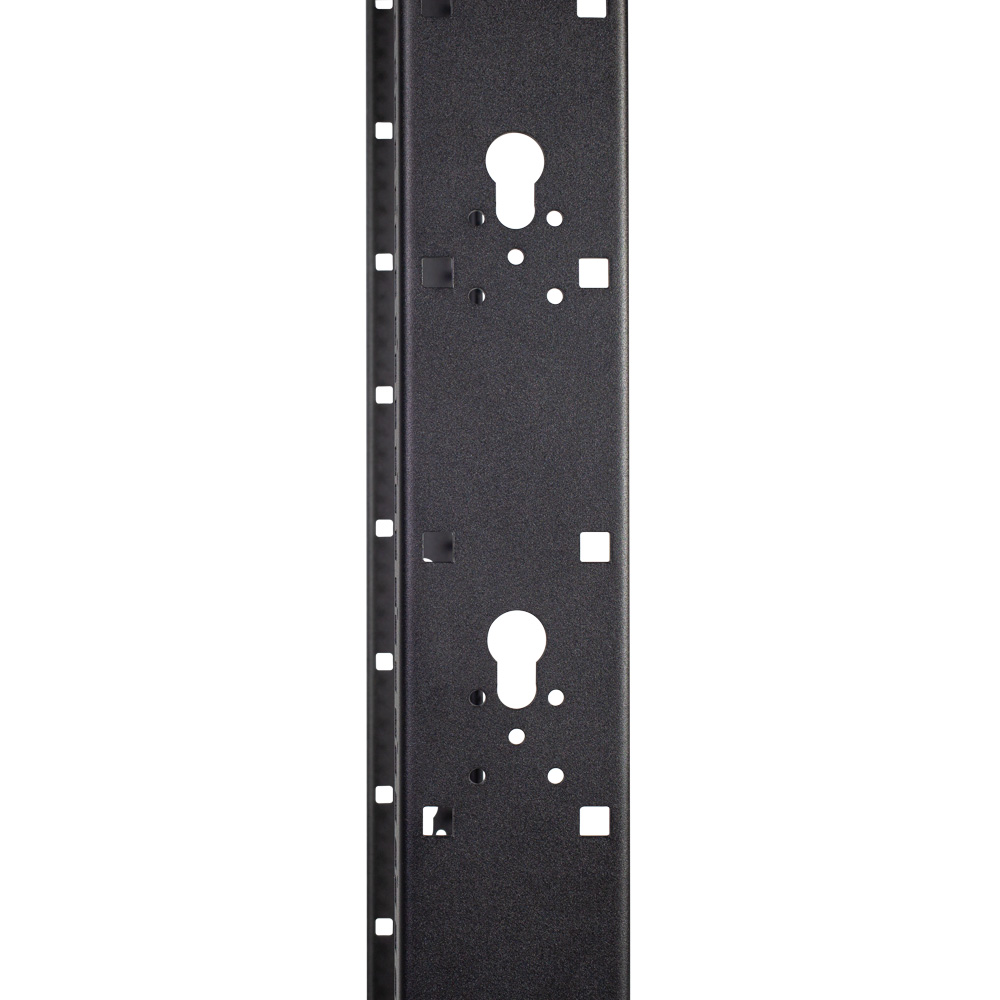

Tool Less Button Mounts

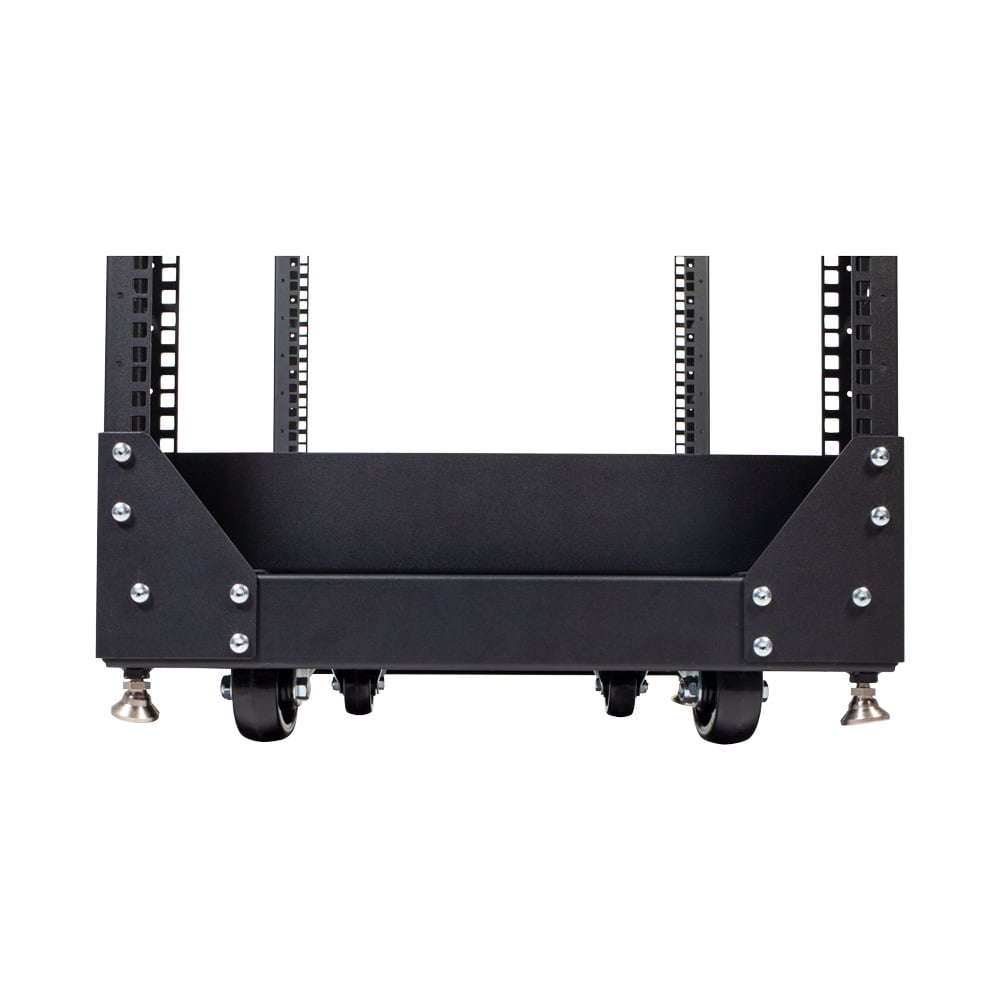

Casters
RackSolutions engineering team has custom designed a 2 post rack that can easily be converted into a 4 post rack. Our rack is constructed from 13 gauge steel, NOT aluminum, and features square mounting holes on the frame. Equipped with tool less button-mounting holes along the sides, vertical PDUs and cable managers can be easily installed. The TechEdge 2 Post Rack was designed with the capability of easily converting into a 4 post rack with the addition of our conversion kit available for the 25U and 45U. Our universal design is compatible with most rack equipment and stands out from the rest with the option to add on our caster kit for easy transportation in your server room, office, or studio. It’s easy to reposition or relocate the network rack in order to connect your rack-mounted equipment to other devices throughout your work space. If you're looking for a more permanent solution, the rack comes with a floor anchor kit to secure your rack to a certain area. The TechEdge 2 post rack is available in 25U and 45U with both racks having a load capacity of 1000 lbs and all assembly hardware included: (9) .250-20 Flat Head Torx Screws (13) .250-20 Pan Head Torx Screws (1) Floor Anchor Kit with drill bit.
RackSolutions TechEdge product line offers high-quality manufacturing in the USA at a low cost. Whatever your industry, we've got a TechEdge product with the quality you need, at an affordable price.
BABA Compliant | No |
---|---|
RoHS Compliant | Yes |
TAA Compliant | Yes |
UL Compliant | No |
ETL Compliant | No |
Country of Manufacture | United States |
Included Hardware | 121-6512 | 121-6522 | 121-8758
|
Rack Type | 2 Post Rack (Telco Rack) |
Dell Part Number | 121-6522 - AB399910 For a full list of Dell SKUs setup in the Dell ordering system visit our Dell SKU page. |
Synnex Part Number | 121-6512 - 6064690 131-6513 - 6064692 180-5257 - 5994429 |
Ingram Part Number | 106-6485 - 8JU433 121-6522 - 8PB562 121-6512 - 7BB559 131-6513 - 8JU432 180-5257 - 5DK724 |
Tech Notes | Constructed from 13 GA steel
Self squaring design 1000 lbs load capacity Button mounts along both sides of rack Cagenuts and screws NOT included |
Rack Height ( RU Height) | Available in 25U and 45U |
Finish | Black powdered coat |
