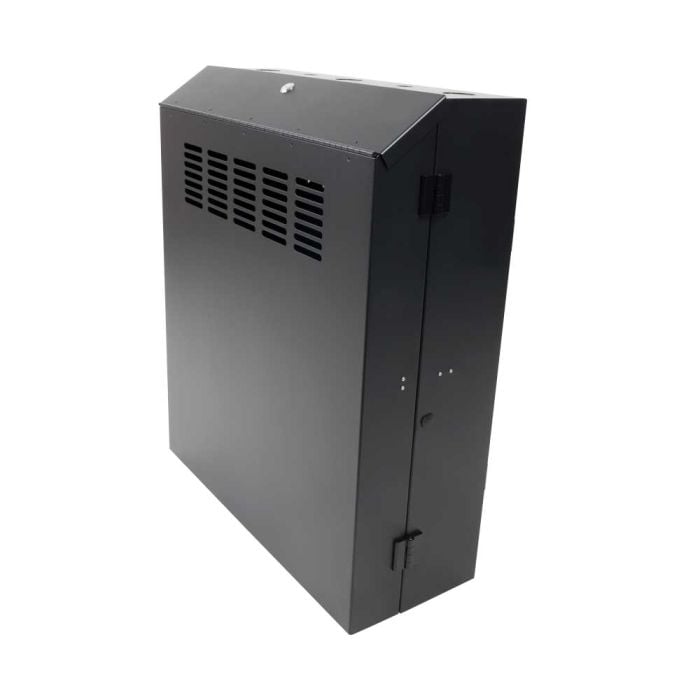

5U Secure Vertical Wall Mounts with Hinged Doors

RoHS Compliant (default) RoHS Compliant (hover)
As low as $709.01 $644.55
In stock

5U of Secure Rackable Space

  • Top cover and rack door are lockable
  • Vented bottom
  • Vented locking hinged cabinet door with latch
  • 12 punch outs for routing cables
  • Mount (2) 120mm fans to vented bottom for efficient airflow

Mounts 19" equipment

  • 180-5281 23” rack - overall length is 29.7”
  • 180-5282 30” rack - overall length is 36.7”
  • 2U of extra rack space designed for patch panels
  • Adjustable vertical mounting bracket
  • Load capacity: 150 lbs
  • Threaded holes for M6 or 12-24 screws

See "Additional Information" for Tech Specs.

Our secure 5U vertical wall mount rack is a perfect place to secure small amounts of rack equipment, extending less than 10 inches from the wall and saving space. Rack mount equipment such as servers, patch panels, UPS systems, and network switches are compatible with this vertical wall mount rack. The vertical rack features a vented hinged door and hinged top panel, both featuring lockable security and accessibility to equipment. The tab on the locking hinged cabinet door must be pressed down to avoid damaging the equipment.

There is an additional 2U mounting bracket, great for mounting patch panels up to 2.5 inches deep. The vented bottom of the server rack allows 2 standard 120mm fans to be mounted. The vertical wall solution is available in 23" and 30" vertical mount depths, the overall length of the racks are 29.7" and 36.7". The maximum weight capacity is up to 150 lbs of 19" equipment. The 5U vertical wall mount rack enclosure is PCI DSS compliant and ships fully assembled.

Security and Accessibility:

The top panel cover and front rack door are both separately lockable for when you need varying security access.

Rack Mount Equipment Without Losing Floor Space:

Inside the top of the rack is a patch panel mounting bracket with the horizontal mounting rails below. Air vents are located at the bottom of the rack ready for 120mm fans to be installed.

Security and Accessibility  (desktop image)Security and Accessibility  (mobile image)

Security and Accessibility

Top patch panel cover and front rack door provide lockable security and easy accessibility.
Saving Floor Space (desktop image)Saving Floor Space (mobile image)

Saving Floor Space

Inside the top of the rack is a patch mounting bracket with horizontal mounting rails below. Air vents are located at the bottom of the rack and allow for 1200mm fans to be installed.
Cable Access and Management  (desktop image)Cable Access and Management  (mobile image)

Cable Access and Management

12 total punch outs for routing cables. Circular punch outs located on the top (5) and bottom (5), rectangular punch outs (2) located on the back of the rack.

Vented Locking Hinged Cabinet Door With Latch (desktop image)Vented Locking Hinged Cabinet Door With Latch (mobile image)

Vented Locking Hinged Cabinet Door With Latch

Tab on the locking hinged door must be pressed down to avoid equipment damage.

Adjustable vertical mounting bracket (desktop image)Adjustable vertical mounting bracket (mobile image)

Adjustable Vertical Mounting Bracket

Adjustable mounting depths between 20-23” for 180-5281 and 27-30” for 180-5282, compatible with M6/12-24 screws.

Optional Patch Panel  (desktop image)Optional Patch Panel  (mobile image)

Optional Patch Panel

Additional 2U slide-out mounting bracket to secure patch panels for easy cable access.

More Information
BABA Compliant No
RoHS Compliant Yes
TAA Compliant No
UL Compliant No
ETL Compliant No
Country of Manufacture China
Included Hardware Included
Rack Type Enclosed, Wall Mount
Hole Type 12-24 Threaded mounting holes
Rack Internal Width EIA 19" Standard Rack
Rack Mount Depth 180-5281-23"
Dell Part Number 180-5282 - AA503081
Synnex Part Number 180-5281 - 5460292
180-5282 - 5460302
180-5416 - 4879336
Ingram Part Number 180-5281 - 5BM804
180-5282 - 6GR774
180-5416 - 6GT645
Rack Height ( RU Height) 5U
Finish Black
Rack Doors Vented locking hinged cabinet door with latch
Rack Ventilation Vented bottom
