Wall Mount Rack

As low as $142.99 $129.99
In stock

1RU-2RU of Rackable Space

  • Compatible with all 19" rackmount equipment
  • 35 - 105 lb load capacity
  • Includes 1 pair of brackets for mounting additional,
    network equipment. Extra brackets sold separately
  • Equipment's mounting rails are required

Perfect solution for small office or home office

  • When there's no room for a full size rack
  • Mounts flush against any flat surface
  • Fits in data closets
  • Great solution for remote sites

See "Additional Information" for Tech Specs.

Our wall mount server rack provides 1RU or 2RU or usable rack space anywhere its needed. The wall mount server cabinet rack can be used to mount equipment horizontally or vertically. The 1RU wall mount rack and 2RU wall mount rack allows 19" rack mount equipment to be mounted to a wall, under a desk or stacked on a desk or table.

The wall mount server rack vertical is compatible with most OEM slide rails: Dell, HP, IBM, Apple, Sun, Intel, Cisco, Juniper and 3Com. This wall mount data rack is compatible with round hole, threaded hole and square hole equipment and slides.

The wall server rack supports equipment up to 30" deep, including slide rails and cable management. The cover of the 1RU and 2RU wall mount protects the unit while allowing for proper ventilation. Airflow and cooling are handled with front and rear airspace openings above and below the servers and louvers on each side.

Wall mount hardware for the wall server rack mount is included. Extra 1RU and 2RU brackets are sold separately for mounting additional, network equipment. See 1URACK-110-REAR-BRKTS and 2URACK-110-REAR-BRKTS listed above.

We promise you’re going to have a great experience. We’ll help you figure out what you need, get it to you fast, and we’ll stand behind it.

Wall Mount Rack Features

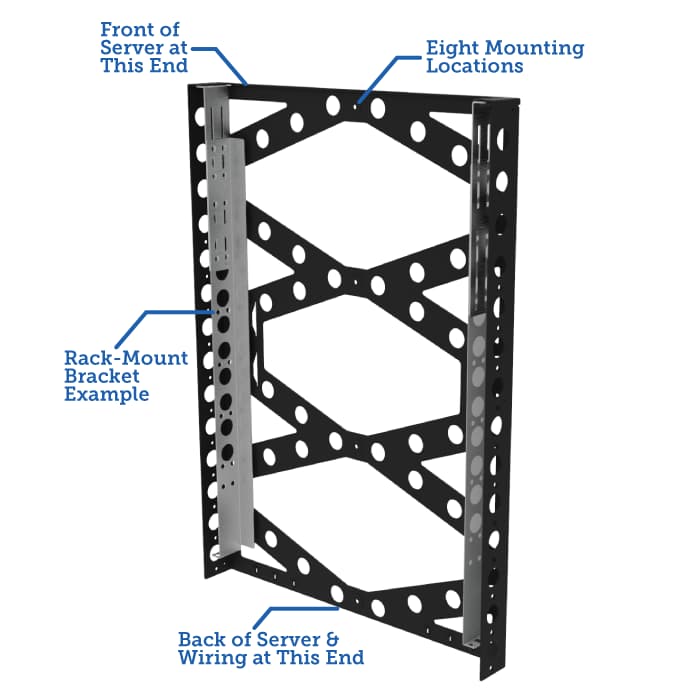

RackSolutions Wall Mount Rack features 8 mounting locations and side brackets.

Wall Mount Rack Server Features

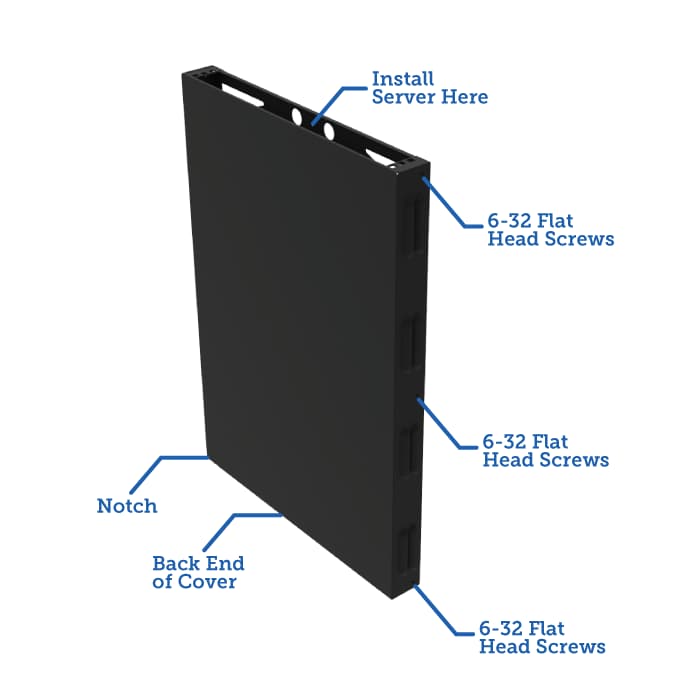

The Wall Mount Rack features a server cover that installs directly into the wall mount.

More Information
Country of Manufacture United States
Included Hardware 1URACK-110
  • Brackets: 1URACK-110 Metal Components:
    • (1 Rack Base
    • (1) Rear Angle Brackets
    • (1) Rack Cover
  • Wall-Mount Hardware Kit:
    • (8) Drywall Anchors
    • (2) 1 1⁄4" Anchor Screws
  • Rear Angle Hardware Kit:
    • (2) 8-32 Silver Flat Head Screws
    • (2) 8-32 Lock nuts
  • Cover Hardware Kit:
    • (6) 6-32 Black Flat Head Screws
  • Rack-Mount Hardware Kit:
    • (8) 12-24 Cage Nuts
    • (8) 12-24 Pan Head Screws
Rack Type Enclosed, Wall Mount
Rack Internal Width EIA 19" Standard Rack
Dell Part Number 1URACK-110: A0021853
Synnex Part Number 1URACK-110 - 4614594
2URACK-110 - 4614595
2URACK-110-REAR-BRKTS - 5015082
Ingram Part Number 1URACK-110 - 366075
2URACK-110 - E29992
Tech Notes 1) Wall mounting in any orientation (hardware and screws provided)
2) Under desk mounting (may require additional hardware depending on the desk design)
3) Stack-able on desktops
Eight anchors included in kit
Total shear strength, 540 lbs (vertical)
Total pullout strength, 160 lbs (horizontal)
Finish Black, textured powder coat
Assembly Notes Phillips head screwdriver required
Rack Units 1RU or 2RU
RoHS Compliant Yes
TAA Compliant Yes
Dimensions 1RU: 2.3" (58 mm) height x 28.5" (725 mm) depth x 20" (508 mm) width
2RU: 4.1" (104 mm) height x 28.5" (725 mm) depth x 20" (508 mm) width
