115-A Wall Mounts for Dell Wyse 5000 Series

As low as $19.99 $18.17
In stock

Creates an ultra compact work environment

  • Compatible with Wyse 5000 Series Thin Client PCs
  • Attaches to monitor using 75 mm and 100 mm VESA hole pattern
  • All required mounting hardware is included
  • PC, power supply & monitor not included

NOTE: See "Additional Information" below for compatibility with other models.

Dell Compatible Products

  • Wyse 5010 Thin Client
  • Wyse 5020 Thin Client
  • Wyse 5060 Thin Client

Customize to your needs

  • Compatible with almost any LCD monitor
  • Optional lock upgrade to prevent theft
  • Pair with a keyboard wall mount for a fully wall mounted solution
  • Add a tilt bracket to adjust your monitor as needed

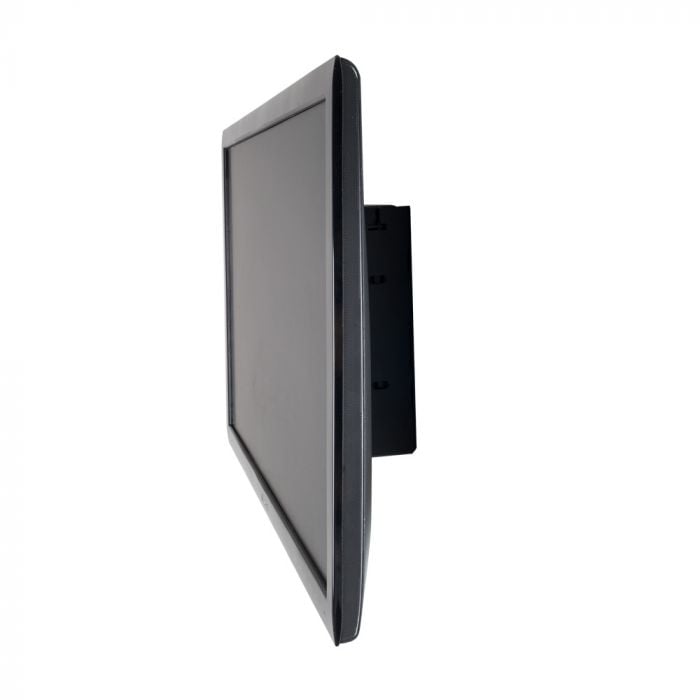

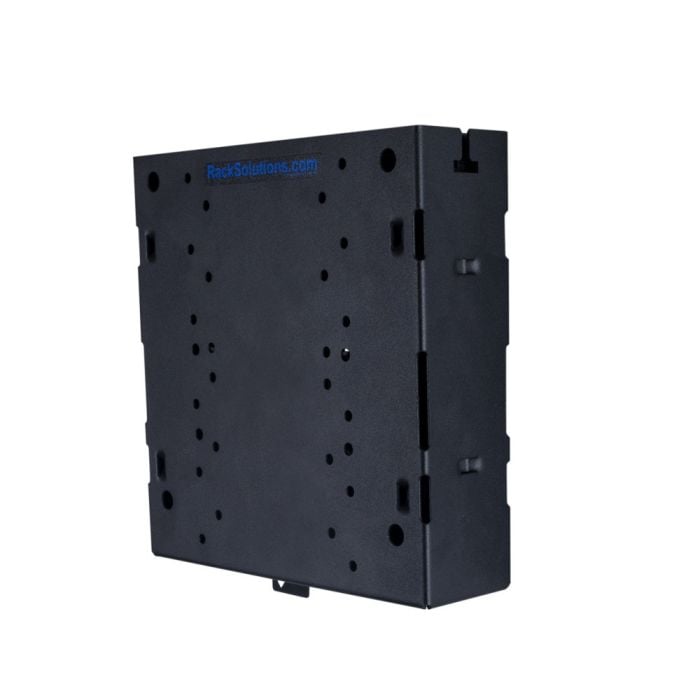

The Dell Wyse 5000 Series Wall Mount from RackSolutions is designed to create a compact wall mountable solution for Dell Wyse Thin Client PCs. The wall mount is dual mounting, which means the VESA hole pattern exists on both sides allowing it to attach to a VESA pattern on both sides, such as cases where a monitor arm might be used. Alternatively the wall mount can be attached to the underside of your desk at the expense of the VESA mounting. The 75 mm and 100 mm VESA hole pattern makes the wall mount compatible with most flat panel displays. The mount is made from 16 GA steel and black powder coated. All hardware required for wall and monitor mounting is included.


VESA StandardHole PatternMonitor WeightScreen Size
FDMI MIS-C75 x 35 mm≤ 10 lbs / ≤ 4.5 kg8" to 11.9"
FDMI MIS-D75 x 75 or 100 x 100 mm≤ 30.8 lbs / ≤ 14 kg12" to 23.9"
FDMI MIS-E200 x 100 mm≤ 50 lbs / ≤ 23.7 kg24" to 30.9"
VESA Specifications Guides (desktop image)VESA Specifications Guides (mobile image)

For more information on VESA Mounting Standards and what VESA stands for visit VESA Mounting Standards Explained. (opens in a new tab)

More Information
BABA Compliant No
RoHS Compliant Yes
TAA Compliant Yes
UL Compliant No
ETL Compliant No
Country of Manufacture United States
Included Hardware 104-5806
  • Assembly Components:
    • (1) Mount Bracket
    • (1) Tilt Monitor Bracket (104-5201 Only)
    • (1) Hook and loop strap
  • Wall Mount Hardware Package:
    • (4) Drywall Anchors
    • (4) 8-32 x 1.250 Pan Head Screws
  • Tilt Monitor Bracket Hardware Package (104-5201 Only):
    • (4) 8-32 x 0.375 Pan Head Screws
  • Fixed Monitor Mount Hardware Package:
    • (8) Spacers
    • (4) M4 x 0.7 x 10mm Pan Head Screws
    • (4) M4 x 0.7 x 18mm Pan Head Screws
    • (4) M4 x 0.7 x 25mm Pan Head Screws

104-5483
  • Kit Contents:
    • (1) VESA Bracket Plate
    • (1) Pivot Bracket
  • Mounting Hardware:
    • (4) 8-32 x .375 Pan Head Screw
    • (8) Spacers
    • (4) M4 x 0.7 x 10mm Pan Head Screws
    • (4) M4 x 0.7 x 18mm Pan Head Screws
    • (4) M4 x 0.7 x 25mm Pan Head Screws

101-5205
  • Kit Contents:
    • (1) Locking Bracket
    • (1) Security Lock
    • (1) Security Lock Key
Compatibility Dell
Synnex Part Number 104-5806 - 5472050
Ingram Part Number 104-5806 - 8WY264
Rack Type Wall Mount
Finish Black powder coat
