135-B Wall Mount for Dell Pro Slim
Wall Mount For Dell Pro Slim PCs
- Creates a compact all-in-one solution
- Uses 75 mm and 100 mm VESA hole pattern
- All required mounting hardware is included
- PC and Monitor not included
- Compatible Devices: Dell Pro Max Slim, Dell Pro Slim, Dell Pro Slim Plus
Customize To Your Needs
- Compatible with most flat panel displays
- Pairs well with one of our keyboard wall mounts
- Optional Tilt Bracket to position monitor as needed
- Saves space in tight business environments
Â
Note: Pro Max Slim exhaust fan must face away from the wall

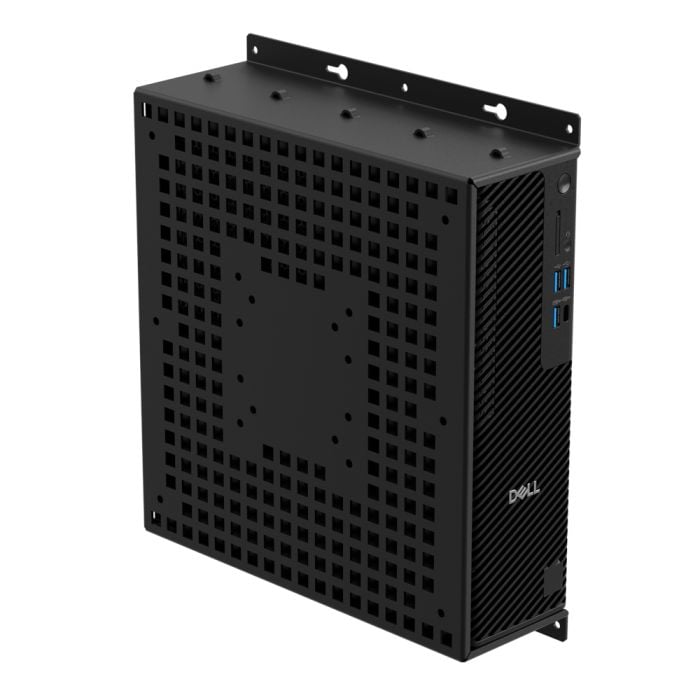

The RackSolutions Dell Slim Pro Wall Mount is designed to seamlessly pair your PC with a monitor and be mounted to a wall, creating a compact all-in-one solution that is suitable for business environments. This Dell PC wall mount is ideal for users looking to save space, improve airflow and cooling, minimize cable clutter, and maintain a clean, professional workspace. Only compatible with the Dell Pro Max Slim, Dell Pro Slim, and Dell Pro Slim Plus.
This wall mount includes all required mounting hardware for easy installation. It uses both 75 mm and 100 mm VESA hole patterns, making it compatible with most standard monitors. For more information on VESA Mounting Standards and what VESA stands for visit VESA Mounting Standards Explained.

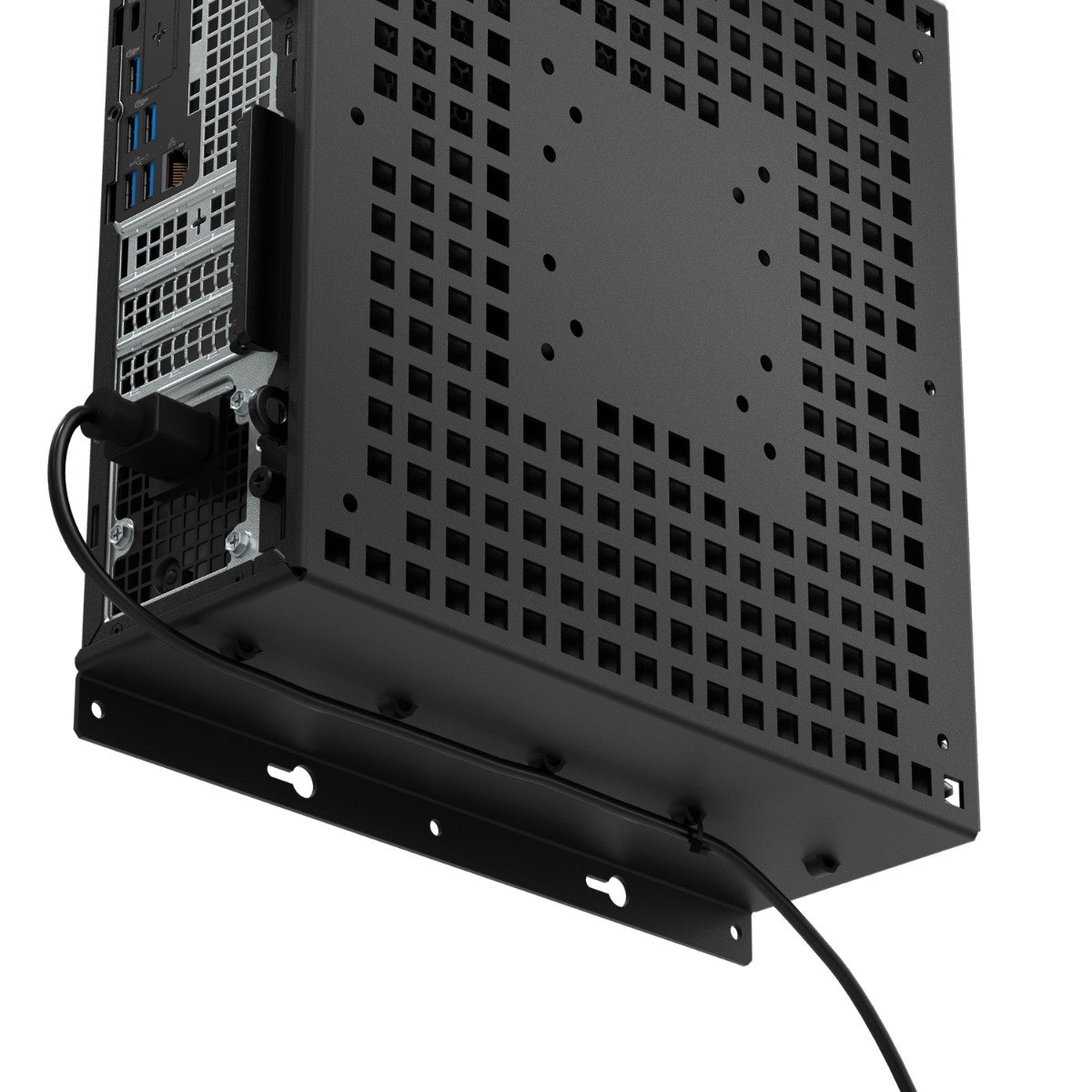

Built-In Cable Management
This wall mount includes integrated cable lances at the top and bottom of the bracket to help you maintain a clean, organized setup. Cables can be neatly routed and secured using zip ties.

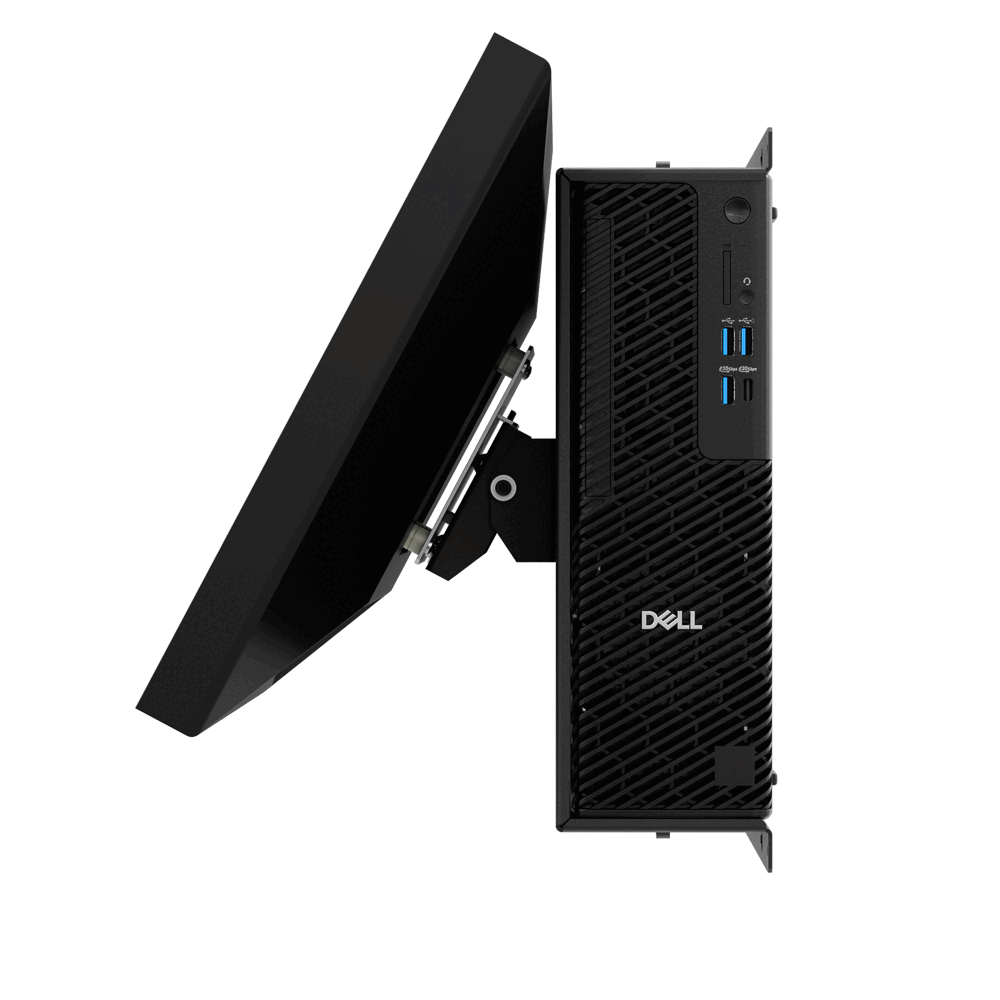

Tilt Bracket Add-On
For added flexibility, an optional tilt bracket is available. The tilt bracket allows you to easily adjust your monitor’s angle for improved usability and visibility.
VESA Compatible
The Dell Pro Slim Wall Mount is compatible with almost any flat panel display using 75 mm and 100 mm VESA hole patterns.
| Made In America | Yes | BABA Compliant | Yes | RoHS Compliant | Yes | TAA Compliant | Yes | UL Compliant | No | ETL Compliant | No | Country of Manufacture | United States | OEM Compatibility | Dell | Product Line | Pro | Form Factor | Small | Finish | Black Powder Coat | Material | Cold-Rolled Steel |
|---|
Kit Contents:
- (1) Main Bracket
Monitor Hardware Package:
- (8) Nylon Spacers
- (5) M4 x 10mm Flat Head Screws
- (5) M4 x 12mm Flat Head Screws
- (5) M4 x 20mm Flat Head Screws
Wall Mount Hardware Package:
- (4) Pan Head Screw
- (4) Anchors
Kit Contents:
- (1) VESA Bracket Plate
- (1) Pivot Bracket
Mounting Hardware:
- (4) 8-32 x .375 Pan Head Screw
- (8) Spacers
- (4) M4 x 0.7 x 10mm Pan Head Screws
- (4) M4 x 0.7 x 18mm Pan Head Screws
- (4) M4 x 0.7 x 25mm Pan Head Screws
- Pro Max Slim
- Pro Slim
- Pro Slim Plus
