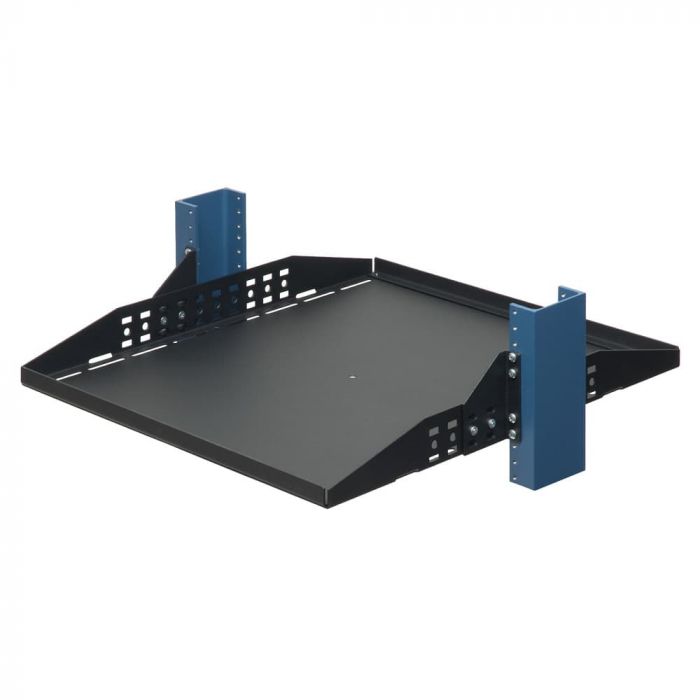

2U 2Post Adjustable Center Mount Rack Shelf 20in Depth

RoHS Compliant (default) RoHS Compliant (hover)
TAA Compliant (default) TAA Compliant (hover)
As low as $110.00 $100.00
In stock

Center Mounted 2 Post Shelf Configurable to Your Needs

  • Shelf position configured along the mounting bracket
  • Equipment stops easily adjusted or removed
  • Vented or solid shelf options
  • Rack shelves can mount upside down

Compatible With 2 Post Racks

  • Weight Capacity: 150 lbs (68 kgs)
  • Shelf Depth: 20" (508 mm)
  • Compatible with 3" to 8" uprights
  • Compatible with round, threaded, or square rack holes

See "Additional Information" for Technical Specifications.

RackSolutions' center mounted configurable 2Post rack shelves can be adjusted to fit a wide variety of mounting needs. The shelf's mounting position can be adjusted along the attachment ears using the holes along the sides of the shelf. Slots for equipment straps are also found along the side of the rack, which can be used for securing equipment to the shelf. The flanges, or equipment stops, can be adjusted along the entire length of the shelf in 1" increments, or removed altogether. This 2 post rack shelf has a shelf depth of 20 inches (508 mm) and a weight capacity of 150 lbs (68 kgs), making it perfect for mounting a large variety of electronic equipment in a 2 post rack that might not ordinarily rack mountable. Our relay rack shelves are compatible with any Standard EIA 19" (opens in a new tab) 2 post relay or telecommunications rack.

2U Configurable 2 Post Relay Rack Shelf - 20" depth Fully Configurable (desktop image)2U Configurable 2 Post Relay Rack Shelf - 20" depth Fully Configurable (mobile image)

Fully Configurable

The shelf can be adjusted and configured to best suit your needs.

Features at a Glance  (desktop image)Features at a Glance  (mobile image)

Features at a Glance

The 20” configurable relay rack shelf is designed to fit a variety of needs. The shelf’s position can be adjusted along the center mounting brackets and comes with equipment stops that can easily be moved or removed altogether.

More Information
BABA Compliant No
RoHS Compliant Yes
TAA Compliant Yes
UL Compliant No
ETL Compliant No
Country of Manufacture United States
Included Hardware 2USHL-020FULL-20V | 2USHL-020FULL-20S
  • Assembly Hardware:
  • (1) Shelf
  • (1) Attachment Flange Right
  • (1) Attachment Flange Left
  • (2) Equipment Stop/Stiffener Flange
  • (4) 10-32 Pan Head Screws
  • (4) 12-24 Pan Head Screws
  • (6) 8-32 Flat Head Screws
  • (4) 10-32 Flat Head Screws
Dell Part Number 2USHL-020FULL-20V - A8169465
Synnex Part Number 2USHL-020FULL-20S - 5050854
2USHL-020FULL-20V - 5050852
Ingram Part Number 2USHL-020FULL-20S - E93434
2USHL-020FULL-20V - NA1117
Fixed/Sliding Fixed
Finish Black, textured powder coat
Shelf Depth 19"-24" (483mm-610mm)
Material 16 GA Steel
Tech Notes The relay rack shelf can be installed in a 4Post server rack
Shelf depth is measured from front to rear excluding flanges
