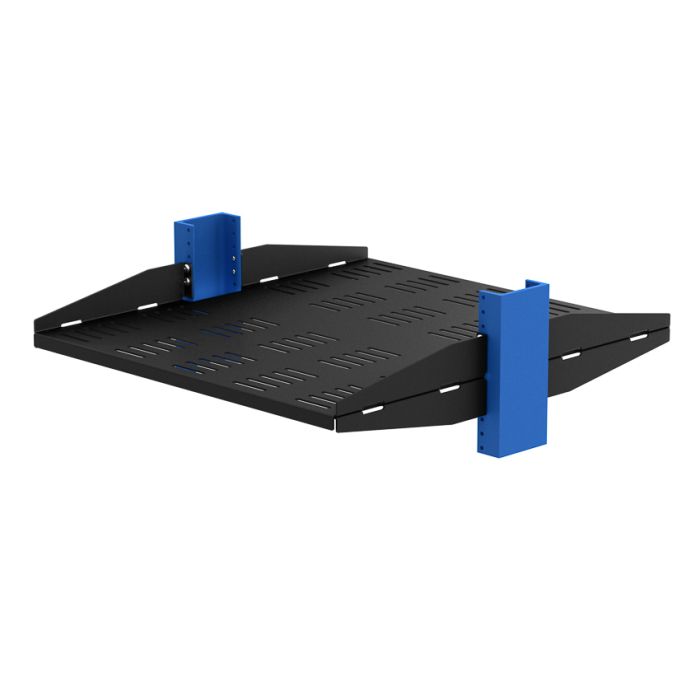

2U 2Post Heavy Duty Center Mount Vented Shelf 21in Depth
Heavy Duty Rack Storage Solution
- May be mounted up-side-down
- Center mounted construction to allow heavy duty capacity in 2U
- High quality 14 GA steel and solid rivet construction
Fits Any 2 Post Rack
- Weight Capacity: 300lbs (136kgs)
- Shelf Depth: 21" (533 mm)
- Compatible with 3" uprights
- Compatible with round, threaded, or square rack holes
Want something more versatile? Check out our configurable or adjustable version.
See "Additional Information" for Technical Specifications.
The RackSolutions 2Post rack shelf is compatible with most 19" EIA standard 2Post rack (opens in a new tab). This 2Post rack shelf has a 300 lb (136 kgs) equipment capacity and will support a wide variety of electronic equipment. Electronic devices up to 21" (533 mm) deep can be supported on this 2Post rack shelf. Transport and seismic options are available for the 2Post rack shelf if the installation requires. Constructed of high quality 14 GA cold-rolled steel and providing the ability to hold up to 300lbs (136kgs) of equipment, this is a durable solution for storing large, non-rackmount pieces of equipment, heavy tools or peripherals in your rack or cabinet. RackSolutions vented server rack shelf improves air flow and helps lower temperatures in your cabinet.
| BABA Compliant | No |
|---|---|
| RoHS Compliant | Yes |
| TAA Compliant | Yes |
| UL Compliant | No |
| ETL Compliant | No |
| Weight (lbs) | 13.740000 |
| Country of Manufacture | United States |
| Included Hardware | 107-2852
|
| Dell Part Number | 107-2852 - A9026667 |
| Synnex Part Number | 107-2852 - 5157896 |
| Ingram Part Number | 107-2852 - 4F2602 |
| Fixed/Sliding | Fixed |
| Finish | Black textured powder coat |
| Hole Type | 10-32 or 12-24 threaded holes Square hole relay racks will require cage nuts |
| Shelf Depth | 19"-24" |
| Material | 14 GA steel |
| Tech Notes | Shelf depth is measured from front to rear including flanges |
