2U Raven 180-A Rail for HPE
Alternative for 2U Servers Using HPE Rail Kits 2, 3, and 8
- Compatible with HPE Proliant Server Generation 11
- Sliding rack rails provide easy serviceability
- High-quality dry slide rack rails
- Original HPE rail kit is not required
Installs in 2-Post and 4-Post Racks
- 4-Post: Mounting depth of 12” - 34” (304.8 - 863.6 mm)
- 2-Post: Center mounting depth of 3” - 6” (76.2 - 152.4 mm) depth uprights
- Flush mount installation requires the Conversion Bracket 4-Pack (opens in a new tab)
- Compatible with square, round, and threaded holes
- Supports L, C, and ? rack upright shapes
Compatible HPE Proliant Servers
- DL380 Gen11 (SFF and LFF Drive Configurations)
- DL385 Gen11 (SFF, LFF, E3.S Drive, and Accelerator-Optimized Configurations)
- DL345 Gen11 (SFF, LFF, E3.S Drive, and GPU-Optimized Configurations)
- DL560 Gen11 (SFF Drive Configuration)
- DL380a Gen11 (SFF, E3.S Drive, and GPU-Optimized Configurations)
- DL380 Gen12 (SFF and LFF Drive Configurations)
- DL340 Gen12 (SFF, LFF, and E3.S Drive Configurations)
- DL384 Gen12

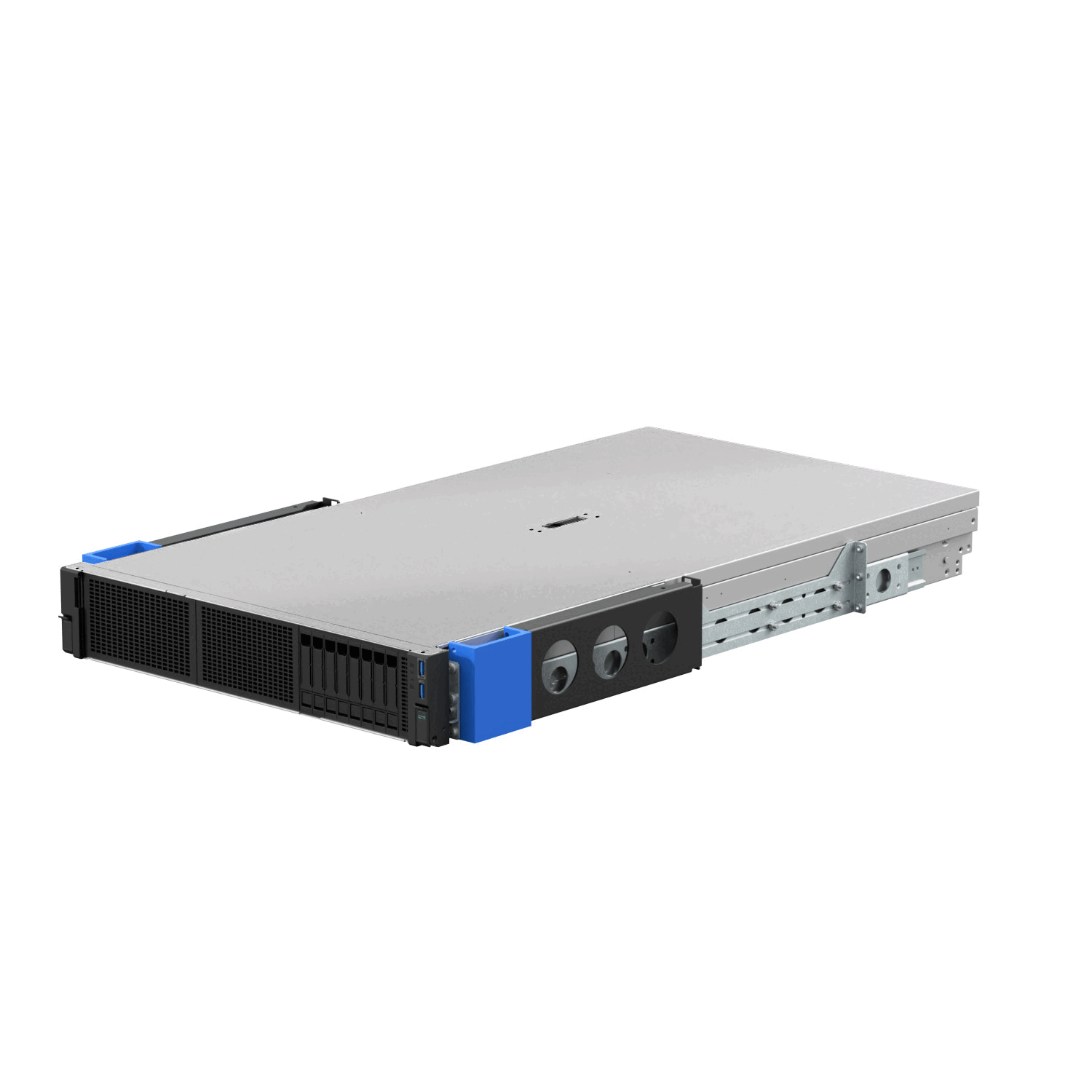

RackSolutions 2U Raven 180-A Rail for HPE Proliant servers is an alternative to HPE OEM rail kits. The sliding rack kit is compatible with select 2U HPE Proliant rack servers from the 11th generation. Our sliding rack rails are compatible with HPE Proliant DL380 Gen11 (SFF), DL380 Gen11 (LFF), DL385 Gen11 (SFF), DL385 Gen11 (LFF), DL385 Gen11 (E3.S), DL385 Gen11 (Accelerator-Optimized), DL345 Gen11 (SFF), DL345 Gen11 (LFF), DL345 Gen11 (E3.S), DL345 Gen11 (GPU-Optimized), DL560 Gen11 (SFF), DL380a Gen11 (SFF), DL380a Gen11 (E3.S), and DL380a Gen11 (GPU-Optimized) servers. Learn more about the Raven rack rails here.
HPE Slam Latch Retaining Plate
The 2U retaining plate allows the HPE Proliant server to be secured in place when using our server rail. The retaining plate provides full securement at the front of the chassis, ensuring the server maintains a fixed position when completely installed.
Mounts in 2-Post and 4-Post Racks

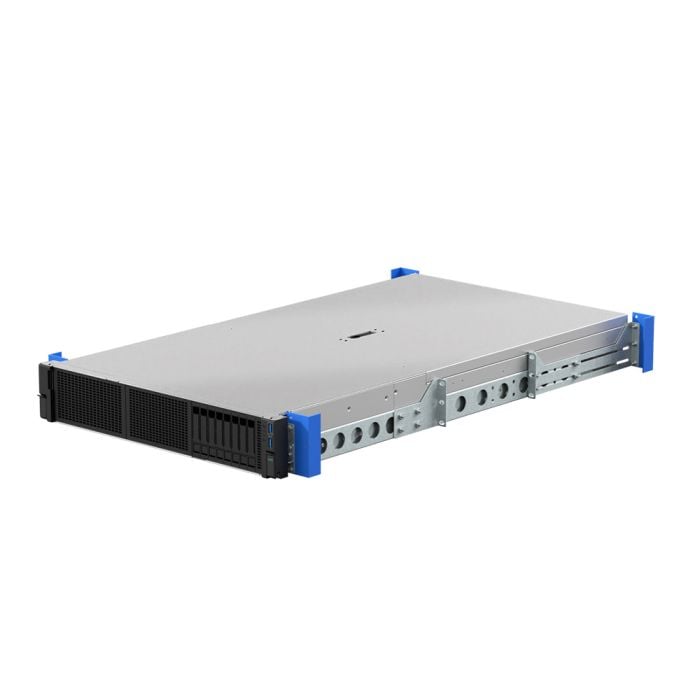

Unlike the HPE OEM Rail Kit, our sliding rack rail kit mounts in 2-Post and 4-Post racks that meet 19” EIA-310 standards. Designed to last longer than ball-bearing rail kits, the dry slides allow you to easily extend equipment in and out of your server rack. For 4-Post Racks, the rack rails feature an adjustable mounting depth between 12” - 34” (304.8 - 863.6 mm). A flush mount kit (opens in a new tab) is required for flush mount rail installation. The conversion brackets must match the corresponding rail’s U height (e.g., 1U rail = 1U Conversion Bracket).
Rack Hole Type
The sliding rack rails occupy 2U of rack space and are compatible with threaded, round, and universal square holes.
| Made In America | Yes | BABA Compliant | Yes | RoHS Compliant | Yes | TAA Compliant | Yes | UL Compliant | No | ETL Compliant | No | Weight (lbs) | 4.650000 | Country of Manufacture | United States | OEM Compatibility | HP / HPE | Generation | Gen11, Gen12 | Product Line | ProLiant | Form Factor | Server | U Height | 2U | Rack Type | 2 Post , 4 Post | Rack Hole Type | 10-32 Thread, 12-24 Thread, M6 Thread, Square Hole | Fixed/Sliding | Sliding | Weight Capacity | 30 - 100 lbs | Material | Galvanized Steel and Cold-Rolled Steel | Finish | Galvanized and Clear Zinc |
|---|
Kit Contents:
- (2) Outer Rail (Left & Right)
- (2) Inner Rail
- (2) Rear Bracket (Left & Right)
Rear Bracket Hardware:
- (8) 8-32 x .312 Flat Head Screw
- (8) 8-32 Keps Nut
Mounting Hardware:
- (12) 8-32 x .500 Pan Head Screw
- (2) Retainer Plate (Left & Right)
- (2) Mounting Plate
- (2) Latch Plate (Left and Right)
Rack Mount 8x:
- (8) 10-32 x .500 Pan Head Screw
- (8) 12-24 x .500 Pan Head Screw
- (8) 12-24 x Square Nut
- (8) 12-24 x Cage Nut
Rack Mount 4x:
- (4) 10-32 x .500 Pan Head Screw
- (4) 12-24 x .500 Pan Head Screw
- (4) 12-24 x Square Nut
- (4) 12-24 x Cage Nut
- DL340 Gen12 (E3.S)
- DL340 Gen12 (LFF)
- DL340 Gen12 (SFF)
- DL345 Gen11 (E3.S)
- DL345 Gen11 (GPU-Optimized)
- DL345 Gen11 (LFF)
- DL345 Gen11 (SFF)
- DL380 Gen11 (LFF)
- DL380 Gen11 (SFF)
- DL380 Gen12 (LFF)
- DL380 Gen12 (SFF)
- DL380a Gen11 (E3.S)
- DL380a Gen11 (GPU-Optimized)
- DL380a Gen11 (SFF)
- DL384 Gen12
- DL385 Gen11 (Accelerator-Optimized)
- DL385 Gen11 (E3.S)
- DL385 Gen11 (LFF)
- DL385 Gen11 (SFF)
- DL560 Gen11 (SFF)
