2U 4Post Rackmount Sliding KVMs
Monitor, keyboard, trackpad
- Use your own 15 - 19" VESA (opens in a new tab) monitor
- 19" monitor available
- Space saving trackpad
- Keyboard plug is 54 1/2" long
- Cable included prerouted
- Cable management arm
- Compatible with KVM switches, USB, PS/2
NOTE: Belkin or Raritan KVM Switches are not compatible with these products.
Install in any 4Post, 19" rack
- Square, round, threaded holes
- Mounting depth 15.5 - 31.5" (394 - 800 mm)

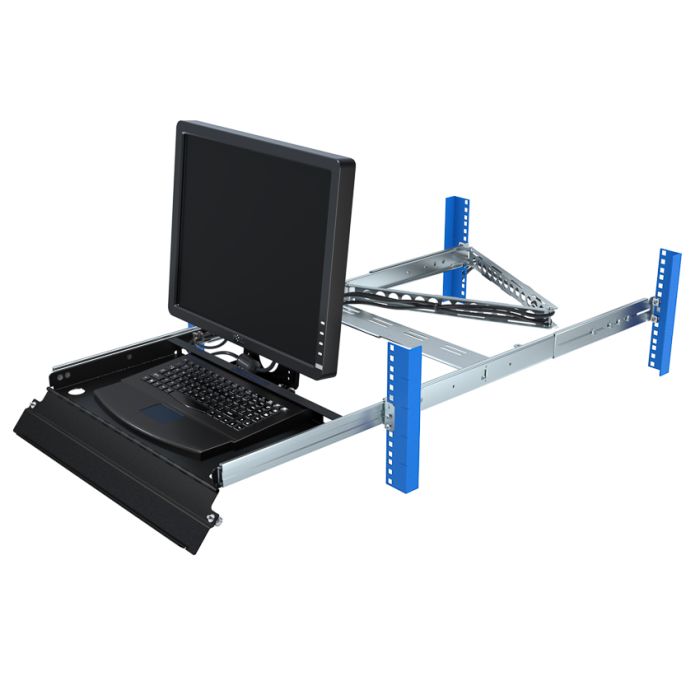

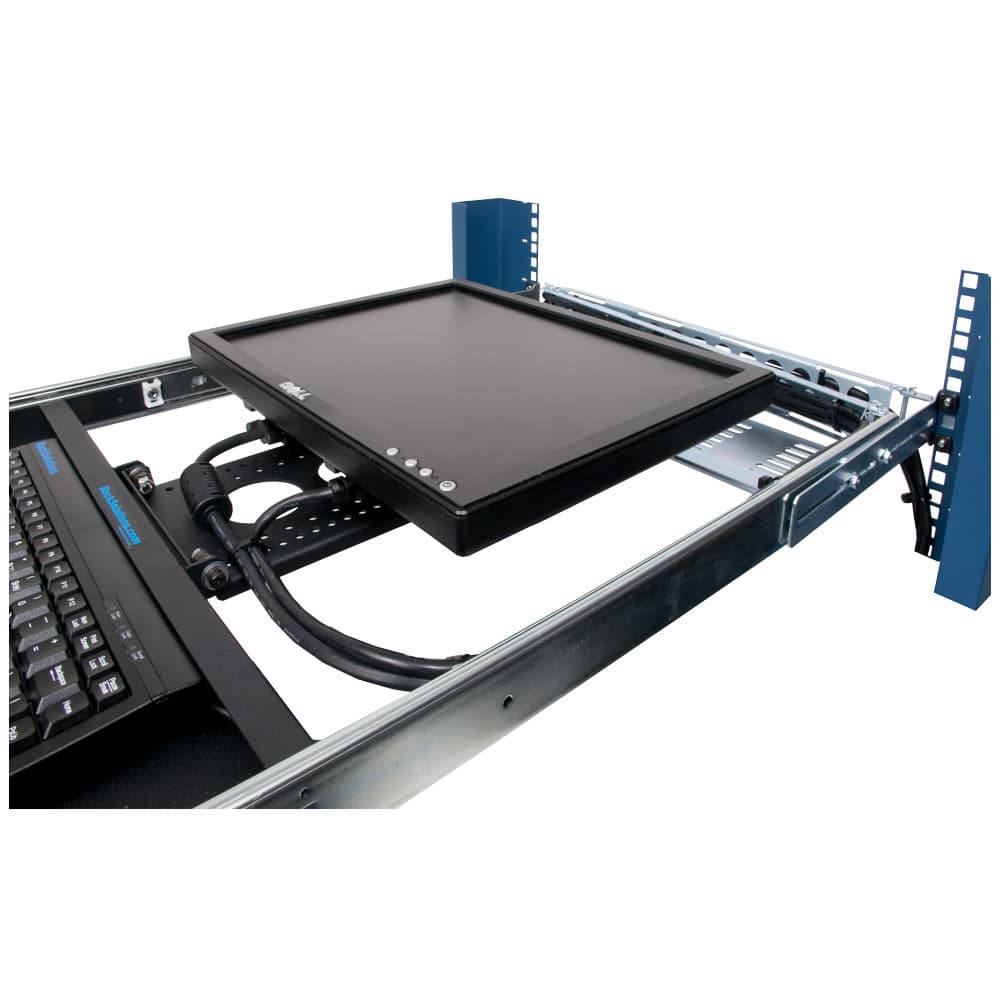

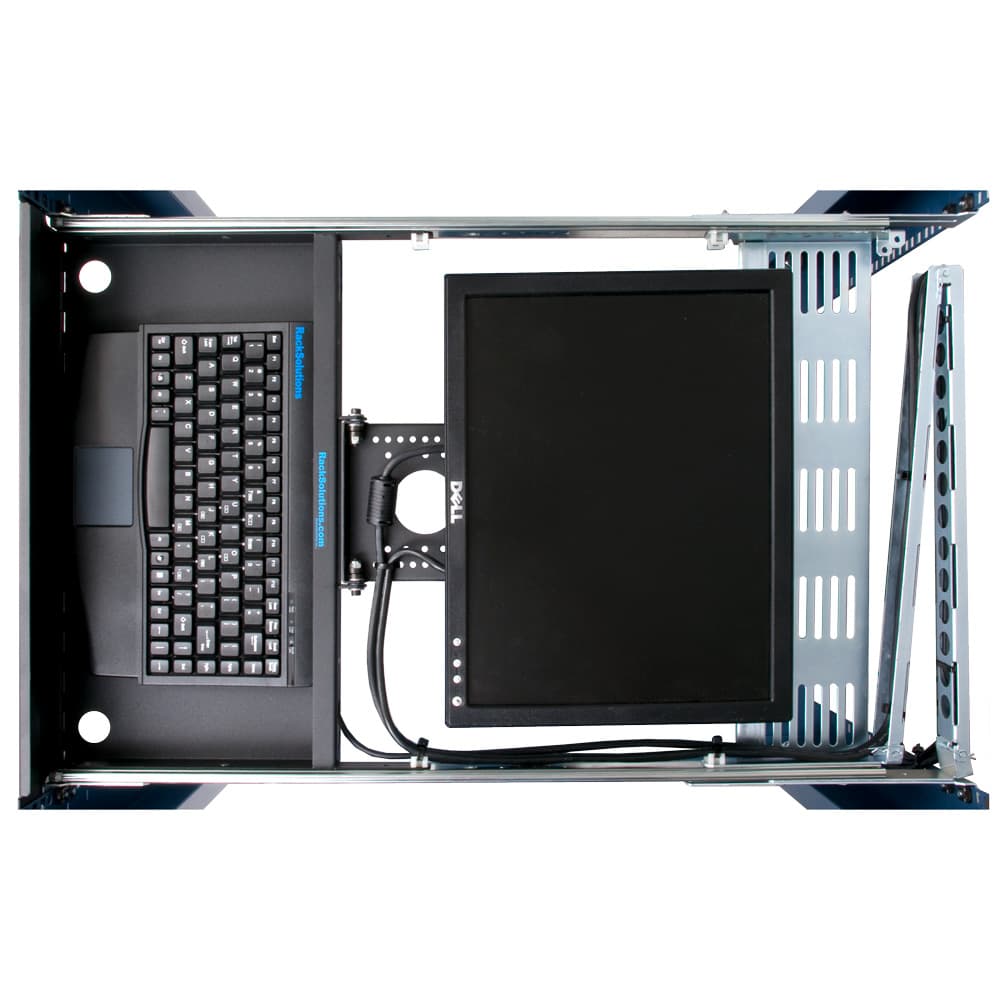

The RackSolutions Rackmount KVM lets users efficiently mount a keyboard and monitor in server racks with installation depths of 15.5" to 31.5".
The Rackmount KVM is designed to support monitors ranging from 15" to 19", making it a suitable platform for users to install their own flat panel computer monitors. For installation purposes, the monitor must also feature 75 mm or 100 mm holes.
The rail used to support the Rackmount KVM is a 28" travel server rack rail equipped with ball bearings for extra support and easy slide control.
The optional keyboard features a standard PS2 cable and a USB adapter. It also supports the full functionality of a standard rackmount keyboard and features a standard embedded number pad with numerical keys and 12 function keys. The keyboard's plug is 54 1/2 " long.
The Rackmount KVM is compatible with most KVM devices and will ship with the hardware necessary for installation.
VESA Compatible Design
Supports 15” - 19” monitors with standard 75mm - 100mm VESA hole patterns for installation. For more information on VESA Mounting Standards and what VESA stands for visit VESA Mounting Standards Explained (opens in a new tab).
Optimized Rack Space Usage
Designed to fit flat within your rack, the monitor only occupies only 2U of rack space, freeing up valuable space for other IT equipment. This allows you to maximize rack efficiency with minimal U space usage.
Rack Hole Type
The 2U 4Post Rackmount Sliding KVM is compatible with threaded, round, and universal square holes.
| Made In America | Yes | BABA Compliant | No | RoHS Compliant | Yes | TAA Compliant | Yes | UL Compliant | No | ETL Compliant | No | Country of Manufacture | United States | U Height | 2U | Rack Type | 4 Post | Rack Hole Type | 10-32 Thread, 12-24 Thread, M6 Thread, Square Hole | Fixed/Sliding | Sliding | Weight Capacity | 30 - 100 lbs | Ingram Part Number | 2POST-2UKIT/2 - 8W3425 |
|---|
Kit Contents:
- (1) Partially Assembled Shelf w/Door
- (2) Rear Brackets
- (1) Cable Management Bracket
- (2) Cable Management Arms
- (8) 11" Tie Straps
- (1) 6ft USB Cable
- (1) 10ft HDMI Cable
Rack Mount Hardware x8 Bag::
- (8) 12-24 x 1/2" Pan Head Screws Zinc
- (8) 10-32 x 1/2" Pan Head Screws
- (8) 12-24 Cage Nuts
- (8) 12-24 Square Nuts
Generic Monitor Hardware Bag::
- (4) 1/8" White Nylon Spacers
- (4) 1/4" White Nylon Spacers
- (4) Pan Head Screws M4x6mm
- (4) Pan Head Screws M4x25mm
- (4) Pan Head Screws M4x30mm
Dell 17V/19V Monitor Hardware::
- (4) 1/4" White Nylon Spacers
- (4) Pan Head Screws M4x14mm
Rear Hardware Bag::
- (4) 8-32 x 3/8" Pan Head Screws
- (4) 8-32 Nuts
Kit Contents:
- (1) Left Conversion Brackets
- (1) Right Conversion Brackets
Bracket to Rack Hardware Kit:
- (8) 12-24 Slotted Hex Bolts
Equipment Install Hardware Kit:
- (5) M6x0.1mm Pan Head Screws
- (6) M6x0.1mm Cage Nut
Kit Contents:
- (1) Dell 19" LCD Monitor
