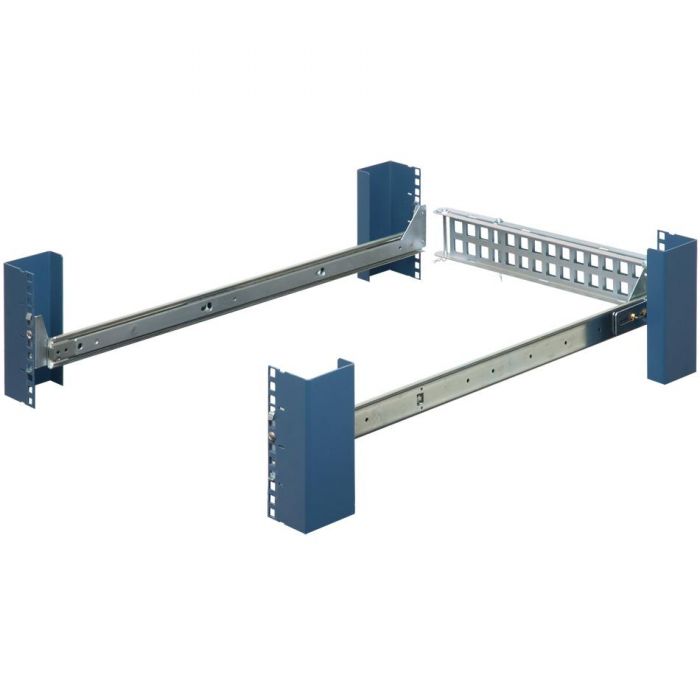

2U 100-J Ball Bearing Rail for Dell with Cable Management Arm

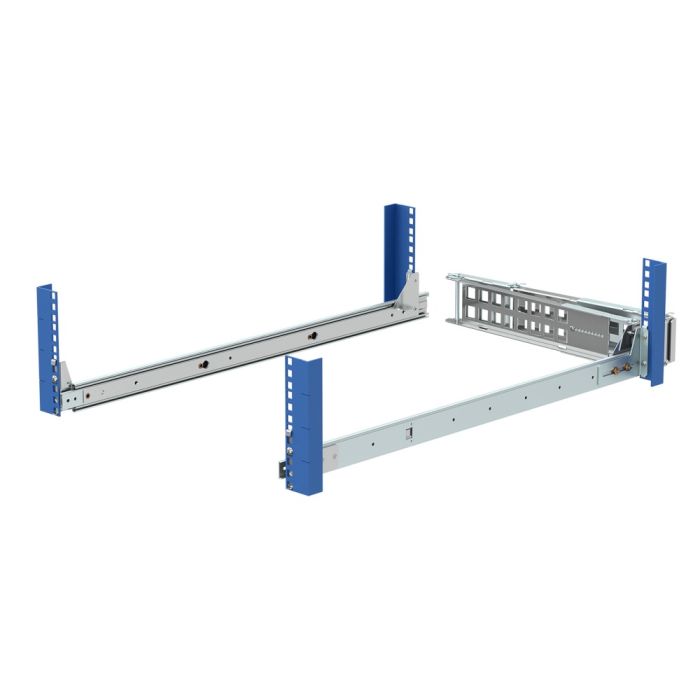

main product photo
RoHS Compliant (default) RoHS Compliant (hover)
TAA Compliant (default) TAA Compliant (hover)
Be the first to review this product
$219.99 $199.99
Limited Stock
SKU
QUICKRAIL-2950

Fits 4Post rack

2Post Mounting

Get custom bezels for this server.

This kit reduces the overall mounting depth of the PE2950 from 36" (914 mm) down to 30.8" (782 mm). This QUICKRAIL-2950 kit replaces the original Dell OEM Ready Rails. This kit is designed to quickly snap into square hole racks without tools. This QUICKRAIL-2950 kit resolves some of the common issues associated with the Dell OEM Ready Rail kit such as obstructions with the frame of the rack as well as problems with the installation depth range. This QUICKRAIL-2950 kit comes with complete cable management. This cable management arm reduces the installation depth required by the PE2950 by a full 5.2" (132 mm).

More Information
BABA Compliant No
RoHS Compliant Yes
TAA Compliant Yes
UL Compliant No
ETL Compliant No
Weight (lbs) 8.634000
Country of Manufacture United States
Included Hardware QUICKRAIL-2950
  • Kit Contents
    • (1) Cable Management Arm Assembly
    • (2) Rail Assembly
  • Cable Arm Brackets:
    • (1) Long CMA Bracket
  • Rail Hardware:
    • (7) 10-32 x .375 Truss Head Screws
    • (2) 8-32 x .188 Phil Pan Head
    • (2) 8-32 x .375 Phil Pan Head
Compatibility Dell
Compatibility Dell PowerEdge 9th Generation Servers
Dell PowerEdge 2950
Dell PowerEdge 2970
Dell PowerEdge 2950 III

Dell Precision Servers
Dell Precision R5400
Dell Part Number A0952773
Ingram Part Number QUICKRAIL-2950 - L77847
Rail OEM Dell
Fixed/Sliding Sliding
Tool-less/Standard Tool-less
Cable Management Articulated cable management arm included.
Rail Type Ball bearing
30" travel (762 mm)
Mounting Depth Range Mounting depth 25.2" - 31" (640 - 787 mm) without CMA
Mounting depth 29.6" - 30.8" (752 - 782 mm) with CMA
Tech Notes This rail kit replaces the Dell rail kit in situations where the Dell rail kit is incompatible with the rack
Finish Zinc plated
Rack Units 2U
Rack Type 4 Post
Hole Type Compatible with the industry standard 3/8" (10 mm) square hole racks
Cage nuts included for square hole mounting
Compatible with all standard round (non-threaded) holes
Compatible with all standard threads including 10-32, 12-24 and metric M6
