1U Sliding Shelf Rail Kit for Dell Precision 3680 Tower Workstation
Fits any 4 Post Server Rack
- Compatible with Dell Precision 3680 Tower Workstation
- Ideal for transport applications and scenarios
- Works with square, round, and threaded holes
- Mounting depth: 10 - 31.50" (254 - 800mm)
- Includes cabling crossbar (installation is optional)
Rackmounts Dell Precision 3680 Tower Workstation
- Computer chassis is secured to the shelf
- Uses 4U space once chassis has been mounted
- Rack shelf is a dry slide type
- Rails are static, shelf slides on top of rail flanges
- Thumbscrews allow the shelf to be secured to the front of the rack
- Secures PC into place and prevents accidental damage

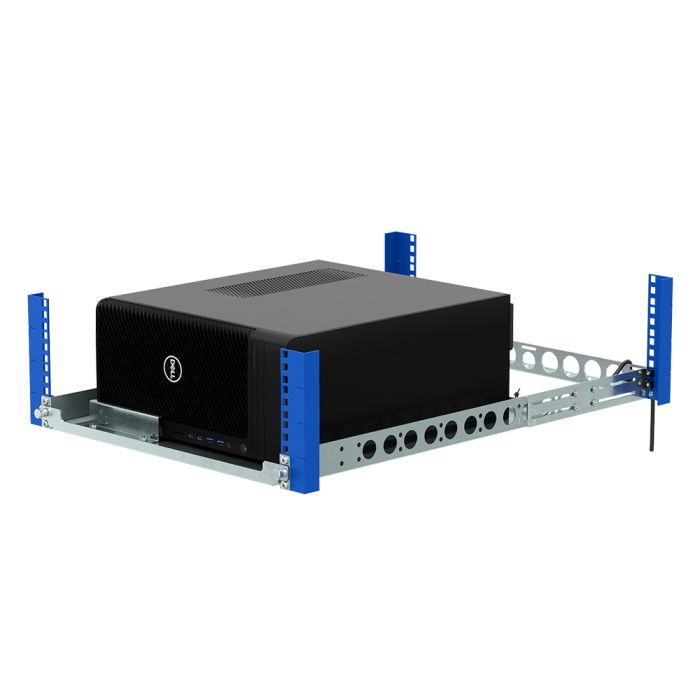

The RackSolutions Sliding Shelf Rail is specifically designed for the Dell Precision 3680 Tower Workstation. This rail kit mounts in any EIA-30, 19” 4 post server rack with square, round, or threaded holes. The Precision 3680 Tower Workstation is secured to the rack shelf with a front and rear bracket, allowing the shelf to dry slide on top of the metal flanges found on both sides of the mounting rails. Prevents equipment from moving or falling during transit, reducing the risk of damages or accidents.
It features a mounting depth of 10 - 31.50" (254 - 800mm) and includes a cabling crossbar that is optional for installation. Additionally, the thumbscrews allow the shelf to be secured to the front of the rack. For square hole racks, cage nuts are required.
PC Mounting Cable Management
To keep the workstation’s power cable in place, the sliding shelf features obround cutouts for cabling.
Transport Mount for Dell Precision 3680
The 1U Sliding Shelf Rail Kit provides a PC mounting solution for situations that require transportation. The workstation is firmly clamped down and positioned into place on the shelf. Ensures that your workstation used in transportation scenarios is safe, accessible, and protected during movement. This is beneficial for relocating equipment between rooms or long-distance transportation.
Dell Precision Compatibility
This sliding shelf rail kit is only compatible with the Dell Precision 3680 Tower Workstation.
| BABA Compliant | Yes |
|---|---|
| RoHS Compliant | Yes |
| TAA Compliant | Yes |
| UL Compliant | No |
| ETL Compliant | No |
| Weight (lbs) | 14.000000 |
| Country of Manufacture | United States |
| Included Hardware |
|
| Compatibility | Dell |
| Fixed/Sliding | Sliding |
| Hole Type | Works with square, round, and threaded holes |
