1U Rail Kit for Dell PowerEdge R340, R440, R640 Servers

122-2579

Availability: Out of stock

1U Rail Kit for Dell PowerEdge R340, R440, R640 Servers

Replaces Dell ReadyRails

Installs in both 2-Post and 4-Post racks

  • 4-Post Mounting: 3 - 30" (76.2 - 762 mm) Mounting Depth
  • 2-Post Mounting: Center mounts in 2-Post racks with 3 - 6" (76.2 - 152.4 mm) uprights
  • Works with universal square, round, and threaded hole racks
  • Supports L, C, Z and ? rack upright shapes
  • Occupies 2U of rack space

Compatible Dell PowerEdge Servers

  • Dell PowerEdge Gen 14: R240, R340, R440, R640
  • Dell PowerEdge Gen 13: R230, R330, R430, R630
  • Dell PowerEdge Gen 12: R320, R420, R620
  • Dell PowerEdge Gen 11: R410, R415
  • Dell PowerVault: NX300, NX400
Get custom bezels for this server.
Rack Solutions Promise
Product Name SKU Price Qty
1U Rail Kit for Dell PowerEdge R340, R440, R640 Servers 122-2579
Excl. Tax: $160.00 Incl. Tax: $176.00

Out of stock

Description

Details

Alternative to Dell ReadyRails

The Dell PowerEdge R320, R420, R430, R620, R630, NX300, NX400, R230 Slide Rails can provide a stable, sturdy and easy-to-install sliding rail solution for Dell-compatible server racks. These slide rails are compatible with standard 19" EIA-310 server racks, and can work with either 2 post or 4 post models. In terms of server compatibility, the slide rails are designed for the Dell PowerEdge R320, R330, R410, R415, R420, R620, R630, R230, NX300 and NX400. The device is designed to fit in racks using either standard square, round or threaded holes, and feature an adjustable mounting depth between 3” - 30" (76.2 - 762 mm). This rail kit is not a ball-bearing rail kit.

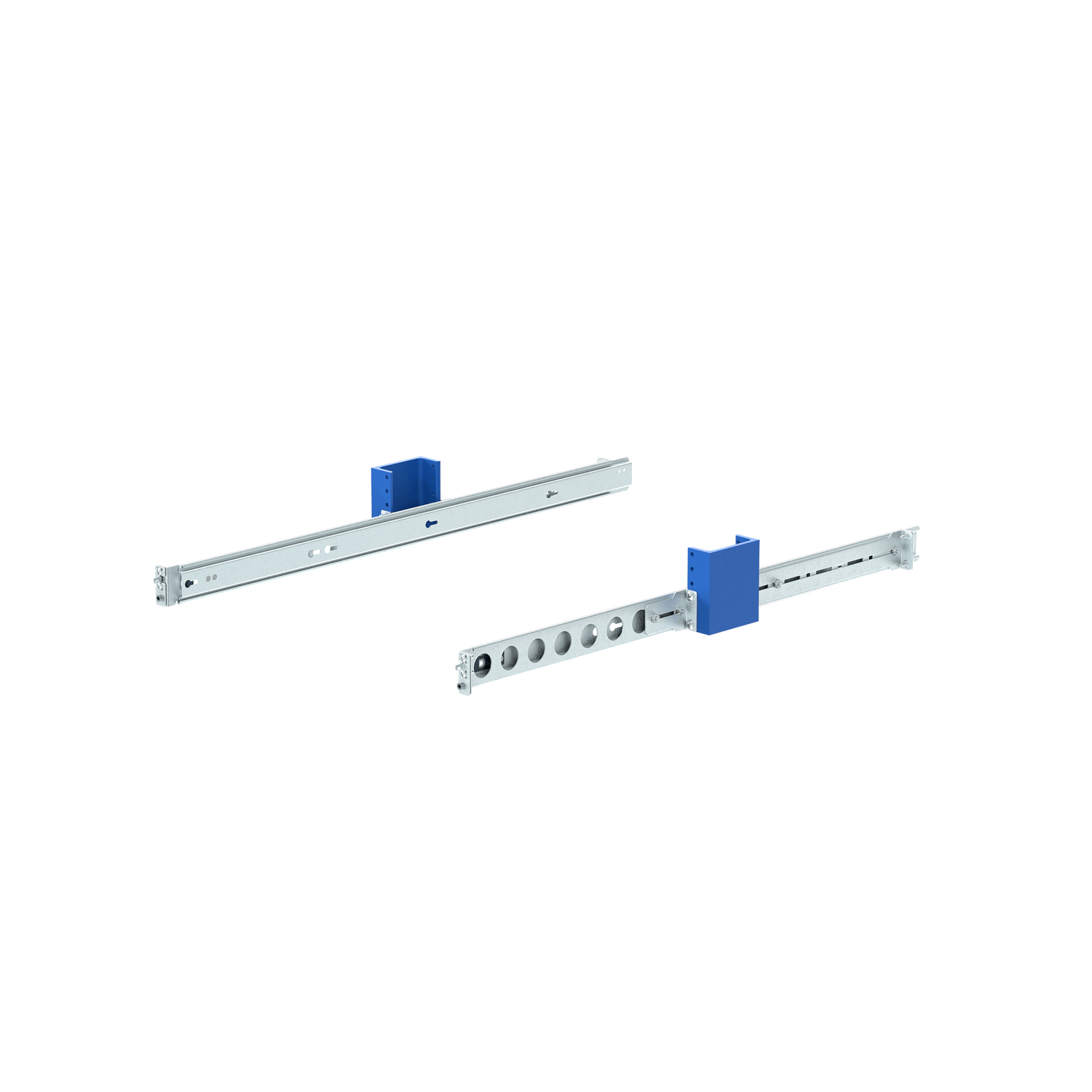

2-Post and 4-Post Compatibility

Unlike the Dell OEM Rail Kit, RackSolutions' rail kit rack mounts in both 2-Post and 4-Post racks as long as they are 19" EIA 310 server racks. The rail kit also works with threaded, round, and universal square holes. In 4-Post Racks, the mounting depth is adjustable 3 - 32" (76.2 - 812.8 mm).

Built to Last

RackSolutions Rail Kits are constructed from high-quality zinc plated cold-rolled steel. This rail kit also features a high-quality dry slide rather than a ball bearing slide. Unlike a ball bearing slide, these rails will last much longer. Ball bearings often fall out of the rail kit and get lost and can quickly wear over time.
RackSolutions is a Dell Technology Partner

Easy Installation

Additional Information

Additional Information

Compatibility Dell PowerEdge 14th Generation Servers
Dell PowerEdge R240
Dell PowerEdge R340
Dell PowerEdge R440
Dell PowerEdge R640

Dell PowerEdge 13th Generation Servers
Dell PowerEdge R230
Dell PowerEdge R330
Dell PowerEdge R430
Dell PowerEdge R630

Dell PowerEdge 12th Generation Servers
Dell PowerEdge R320
Dell PowerEdge R420
Dell PowerEdge R620

Dell PowerEdge 11th Generation Servers
Dell PowerEdge R415
Dell PowerEdge R410

Dell PowerVault
Dell PowerEdge NX300
Dell PowerEdge NX400
Dell Part Number A6289666
Rail OEM Dell
Fixed/Sliding Sliding
Tool-less/Standard Standard
Included Hardware Assorted hardware included
Assembly Notes Phillips head screwdriver required
Rail Type Dry slide rails
Mounting Depth Range 3” - 30" (76.2 - 762 mm)
Rack Units 1U
Rack Type 2 Post , 4 Post
Amazon ASIN B0093H6S4I
RoHS Compliant Yes
Hole Type Compatible with round, square and threaded racks.
TAA Compliant Yes
