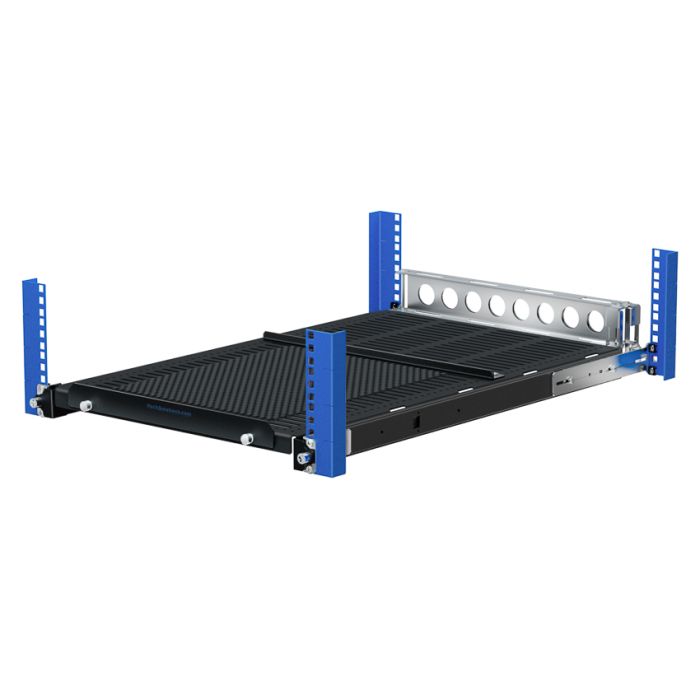

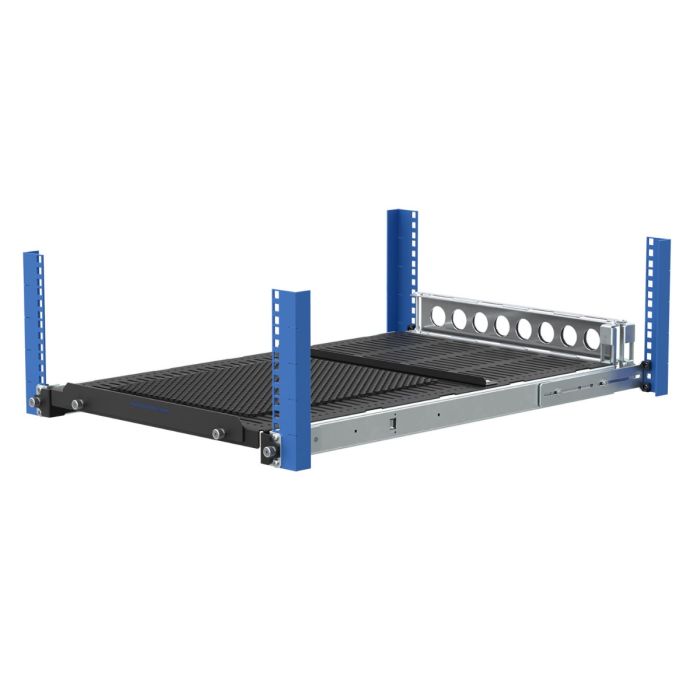

1U 115 Sliding Equipment Shelf 27in Depth
Tower Server and Desktop Ready
- Front and back equipment stops included
- Thumb screws lock the shelf into place
- High quality ball bearing slides
- Tower-to-Rack conversion
- Compatible with round, threaded, and square rack holes
RackSolutions Sliding Equipment Shelves are compatible with most 19" EIA standard server racks. Our equipment shelves have a 95 lbs (43kgs) weight capacity and will support a wide variety of IT equipment.
Computers up to 27" (685mm) deep can be supported on a 19 inch equipment shelf in any 4Post rack. Constructed of 14 GA steel, the RackSolutions Sliding Equipment Shelf is designed for storing your non-rack mountable equipment safely.
The slide rails extend a full 30" (762mm) on this equipment shelf model. Cable management is a standard feature of equipment shelves providing a method to professionally route and secure the cables. Your purchase includes a removable front equipment stop bar, adjustable rear equipment stop bar, anti-slip mat, and optional straps for securing equipment for transport or seismic applications.
| Made In America | Yes | BABA Compliant | No | RoHS Compliant | Yes | TAA Compliant | Yes | UL Compliant | No | ETL Compliant | No | Country of Manufacture | United States | U Height | 1U | Rack Type | 4 Post | Rack Hole Type | 10-32 Thread, 12-24 Thread, M6 Thread, Square Hole | Shelf Type | Vented | Shelf Depth | 25"- 30" (635mm-762mm) | Fixed/Sliding | Sliding | Weight Capacity | 30 - 100 lbs | Finish | Textured, black, powder coated | Dell Part Number | 1USHL-115 - A0134097
101-0914 - AA107473
115-1526 - AB250753 For a full list of Dell SKUs setup in the Dell ordering system visit our Dell SKU page. |
Synnex Part Number | 1USHL-115 - 4614584 115-1526 - 5161481 | Ingram Part Number | 101-0914 - TJ7572 1USHL-115 - 658374 115-1526 - LE6485 |
|---|
Data Sheet
1U 115 Sliding Equipment Shelf 27in Depth with Cable Management Arm (1USHL-115)
Open PDF

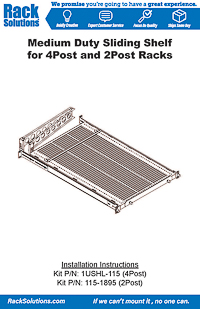

Installation Instructions
1U 115 Sliding Equipment Shelf 27in Depth with Cable Management Arm (1USHL-115)
Open PDF
Dimensional Drawings
1U 115 Sliding Equipment Shelf 27in Depth with Cable Management Arm (1USHL-115)
Open PDF
Kit Contents:
- (1) Partially Assembled Shelf
- (1) Anti-Slip Mat 12”x15”
Brackets:
- (2) Rear Rack Brackets
- (1) Removable Front Stop
- (1) Adjustable Rear Stop
Assembly Hardware Kit:
- (6) 8-32 x 3/8” Pan Head Screws
- (6) 8-32 Nuts
Rack Mount Hardware Kit:
- (8) 12-24 x 1/2” Screws
- (8) 10-32 x 1/2” Screws
- (8) 12-24 Square Nuts
- (8) 10-32 Cage Nuts
Kit Contents:
- (1) Partially Assembled Shelf
- (1) Anti-Slip Mat 12”x15”
- (1) 50” Hook and Loop for Cable Arm
Brackets:
- (2) Rear Rack Brackets
- (1) Removable Front Stop
- (1) Adjustable Rear Stop
- (1) Arm Extension Bracket
- (2) Cable Management Arms
- (2) Arm Attachment Brackets
Assembly Hardware Kit:
- (4) 8-32 x 3/8” Flat Head Screws
- (6) 8-32 x 3/8” Pan Head Screws
- (6) 8-32 Nuts
- (3) 2.5” Clevis Pins & Cotter Pins
Rack Mount Hardware Kit:
- (8) 12-24 x 1/2” Screws
- (8) 10-32 x 1/2” Screws
- (8) 12-24 Square Nuts
- (8) 10-32 Cage Nuts
Kit Contents:
- (1) Left Conversion Bracket
- (1) Right Conversion Bracket
Bracket to Rack Hardware Kit:
- (8) 12-24 Slotted Hex Bolts
Equipment Install Hardware Kit:
- (5) M6x0.1mm Pan Head Screws
- (6) M6x0.1mm Cage Nut

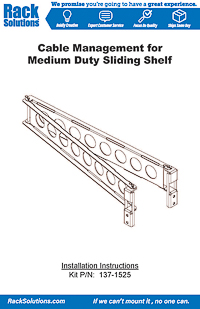

Kit Contents:
- (1) CMA Assembly
CMA Hardware:
- (4) 8-32 x .375 Flat Head Screws
Kit Contents:
- (1) Metal Front Stop Bracket
