Rack Mount Sliding Shelves

Availability: In stock

Rack Mount Sliding Shelves
  • Front view - Sliding Rack Mount Shelf with CMA
    Front view - Sliding Rack Mount Shelf with CMA
    close
  • Side view - Sliding Rack Mount Shelf with CMA
    Side view - Sliding Rack Mount Shelf with CMA
    close
  • Rear view - Sliding Rack Mount Shelf with CMA
    Rear view - Sliding Rack Mount Shelf with CMA
    close
  • Top view - Sliding Rack Mount Shelf with CMA
    Top view - Sliding Rack Mount Shelf with CMA
    close
  • Closeup view - Sliding Rack Mount Shelf
    Closeup view - Sliding Rack Mount Shelf
    close
  • Front view with server - Sliding Rack Mount Shelf with CMA
    Front view with server - Sliding Rack Mount Shelf with CMA
    close

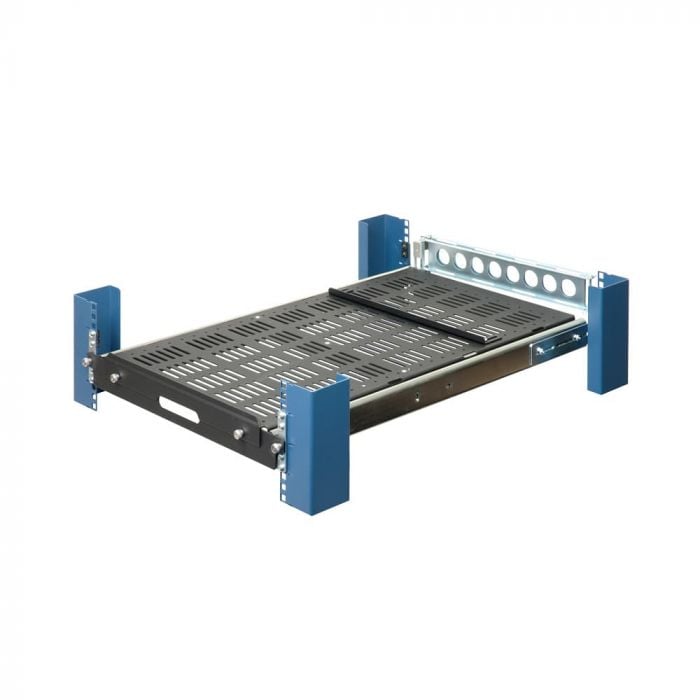

Heavy Duty Sliding Equipment Shelf

  • Professionally route wires with cable management arm
  • Constructed of 13 GA steel
  • Front and rear equipment stops
  • Two anti-slip mats are included with your purchase

Fits Any 4 Post Rack

  • Weight Capacity: 235lbs (107kgs)
  • Shelf Depth: 29" (737 mm)
  • Mounting Depth:19" - 31" (483mm - 787mm)
  • Compatible with round, threaded, or square rack holes
See "Additional Information" for Technical Specifications.
Rack Solutions Promise
Product Name SKU Price Qty
Heavy Duty, Sliding Rack Mount Shelf without CMA 115-1529
Excl. Tax: $288.99 Incl. Tax: $317.89

Out of stock

Heavy Duty, Sliding, Rack Mount Shelf with CMA 2USHL-130
Excl. Tax: $299.99 Incl. Tax: $329.99
Description

Details

The RackSolutions Sliding Rack Mount Shelves are an ideal solution for environments where servers, computers and other equipment needs to be stored on a sturdy shelf that can be slid forward for easy access during operation. The Sliding Rack Mount Shelves are compatible with square, threaded and round hole-based server racks, and feature an extension reach of 29". The shelf itself is 28" deep, allowing users to safely store most computers and other equipment. The versatile solution is also durable, as it is constructed of cold rolled steel and capable of holding 235 lbs of hardware. In terms of compatibility, the Sliding Rack Mount Shelves will fit on almost any standard EIA standard server racks. For sliding shelves, the supplementary accessories are also critical, and the RackSolutions product has them all. The slide is fitted with ball bearings and stops to ensure stable and secure operations. It also boasts a built-in cable management arm to help users professionally route wires regardless of what device they store on the shelf. Two anti-slip mats also come with any purchase to ensure equipment does not slide when the shelf is moved.

Additional Information

Additional Information

Equipment Depth 29" (737 mm)
Shelf Type Vented
Rack Type 4 Post
Fixed/Sliding Sliding
Shelf Surface Area 17.6" W x 28" L (447 x 711 mm)
Finish Black, textured powder coat
Mounting Depth Range 19" - 31" (483 - 787 mm)
Included Hardware 10-32 & 12-24 screws

Cage nuts included for square hole racks
Weight Capacity 235lbs (107kgs)
Rack Units 2U
Tool-less/Standard Standard
Overall Installation Depth 30.5" (775 mm) from front thumb screw to rear cable management arm
Hole Type Compatible with round, threaded, or square rack holes
Material 13 GA Steel
Amazon ASIN 115-1529 = B00UVKA37E
2USHL-130 = B00UVKA08Q
TAA Compliant No
RoHS Compliant Yes
Tech Notes 3U is required when CMA is in use
Shelf height: 2.2" (1.25U) (56 mm)
235 lbs (106.5 kgs) for 4Post mounting
Capacity is set by rail capacity

Tested to 400+ lbs (181.4 kgs) at full rail extension
