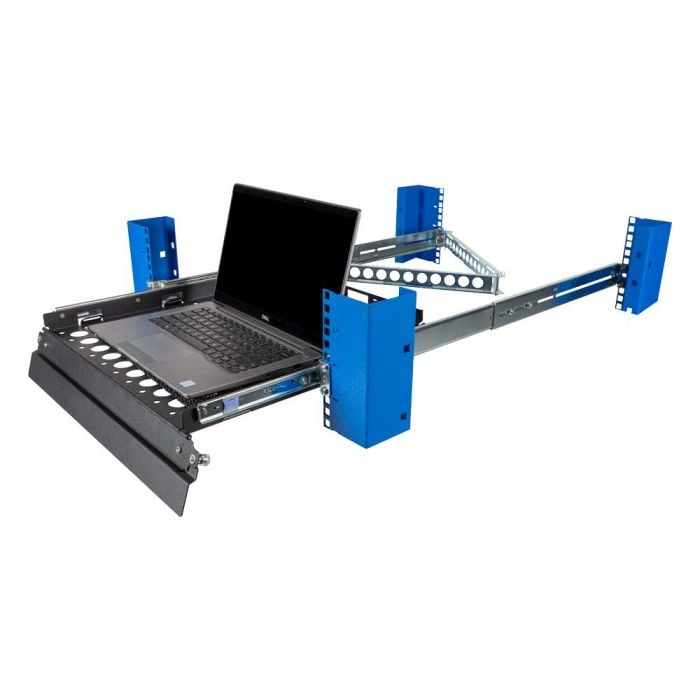

2U Sliding Laptop Shelf 17in Depth
Use Your Laptop Right at Your RackÂ
- High-quality ball bearing slide rails provide 20" of extension
- Made from 16 Gauge US Steel
- Front cover takes up 2U of spaceÂ
- Cable management arm included
Fits in Any 4Post Rack
- Capacity 75 lbs (35 kgs)
- Supports laptops up to 16.3" (414 mm) deep
- Adjustable mounting depth: 10 - 30" (254 - 762 mm)
- Fits square, round, threaded holes
Optional Transport Upgrade for Laptop Sliding Shelf (SKU: 1USHL-139-TRNS-UPGRD)
Includes:
- Two, 72" heavy-duty straps
- Additional anti-slip mat
See "Additional Information" for technical specifications.
The RackSolutions laptop shelf allows you to install your laptop in a 19" server rack. You can use this shelf, along with a laptop, as a replacement for your KVM.
The high quality ball bearing slide rails provide 20" of extension and have a safety lock-out feature. The notebook shelf comes standard with a 1U and a 2U front cover. There is extra room in the rear of the laptop shelf to secure any cabling or AC adapter.
Our rackmount laptop shelf can support up to 75 lbs of equipment. The Transport Upgrade for Laptop Sliding Shelf is available with transport straps and anti-slip mats for the notebook shelf if required.
Rear Shelf Stop
The built-in shelf stop keeps equipment from sliding off the shelf and has cable tie pass-throughs for cable management.
2U Built in Blanking Panel
The shelf's design enables air flow with the use of a filler panel to cover the space occupied by the shelf. Captive fasteners secure the built in blanking panel.
| BABA Compliant | No |
|---|---|
| RoHS Compliant | Yes |
| TAA Compliant | Yes |
| UL Compliant | No |
| ETL Compliant | No |
| Country of Manufacture | United States |
| Included Hardware | 1USHL-139
|
| Dell Part Number | 1USHL-139-TRNS-UPGRD - AA507392 1USHL-139 - A1195458 For a full list of Dell SKUs setup in the Dell ordering system visit our Dell SKU page. |
| Synnex Part Number | 1USHL-139 - 4786733 1USHL-139-TRNS-UPGRD - 5556101 |
| Ingram Part Number | 1USHL-139 - M65273 1USHL-139-TRNS-UPGRD - PQ8280 |
| Fixed/Sliding | Sliding |
| Finish | Black textured powder coat |
| Hole Type | Compatible with the industry standard 3/8" (10 mm) square hole racks Compatible with all standard round (non-threaded) holes Compatible with all standard threads including 10-32, 12-24 and metric M6 |
| Material | 16 Gauge US Steel |
