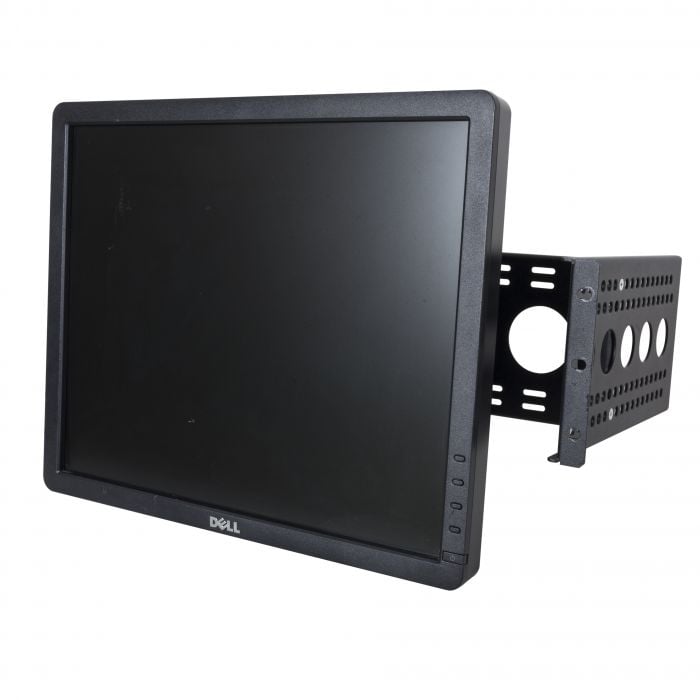

3U Adjustable Monitor Rackmount with Pan & Tilt (No Monitor)
Universal Pivot Monitor Mount for Server Racks
- Four way pivot arm for the most comfortable viewing angle
- Adjustable depth from 0.44" - 9.5" (11.2 - 89 mm)
- 75mm - 100 mm VESA hole pattern
- Flush Mounting is compatible with most monitors up to 19"
- Note: Overall width cannot exceed 16.85"
- Wider displays can be mounted in front of rack post depending on door clearance
- Great for control rooms, AV labs, and data centers
Monitor not included.
Compatible with standard EIA 19" racks
- Fits square, round, threaded holes
- Easily installed in 4 post and 2 Post
- Dell, HP, IBM, APC compatible
RackSolutions Pivot LCD Flushmount Kit lets you mount an LCD monitor into any EIA standard 19" server rack and position your monitor at the most convenient and comfortable position. The pivot bracket allows four directional movement of the monitor, making it easy to find the perfect viewing angle. Rack mounting a monitor is perfect for displaying server console data and any other video feed you would need in a data center, AV lab, control rooms, and more.All mount assembly hardware and rack mounting hardware included. Pair with a rackmount keyboard for a complete solution.
For more information on VESA Mounting Standards and what VESA stands for visit VESA Mounting Standards Explained (opens in a new tab).

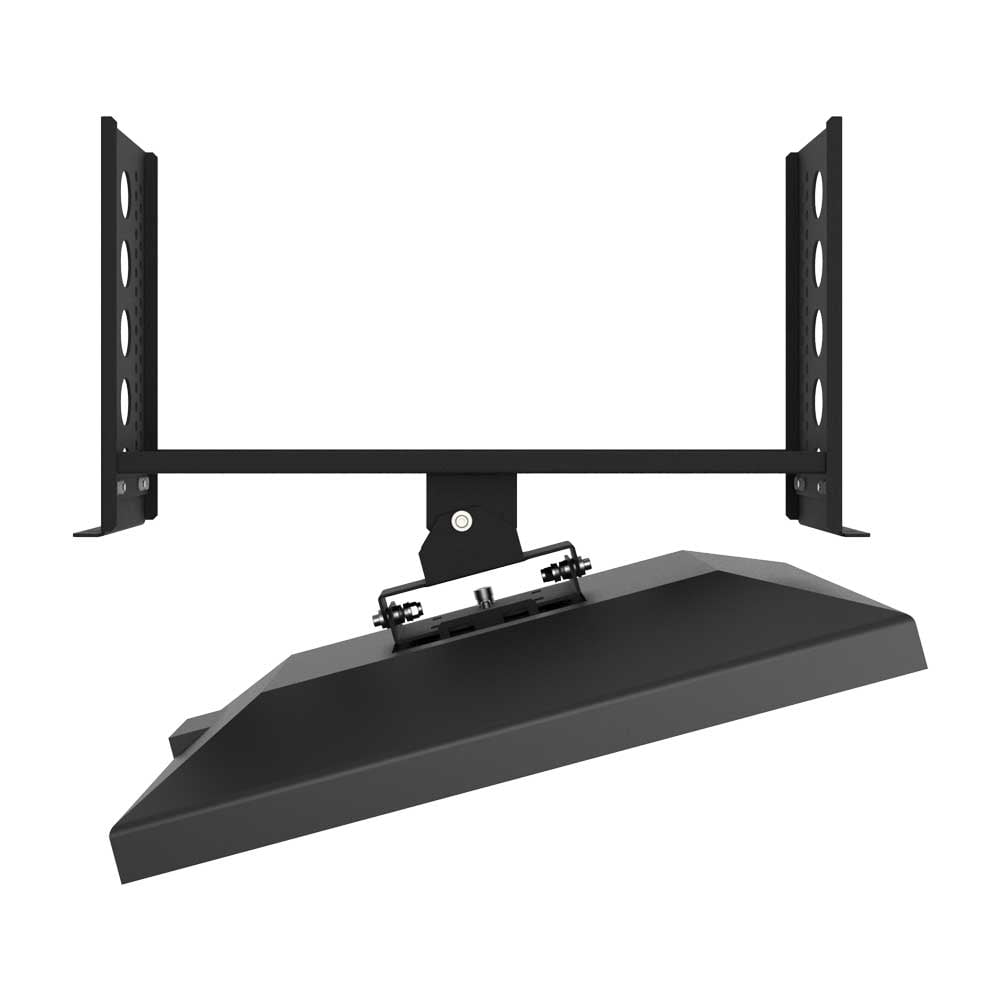

Adjusts to needed equipment depth
Our bracket can mount from 9.5" depth to 0.44" depth in increments of 0.25"

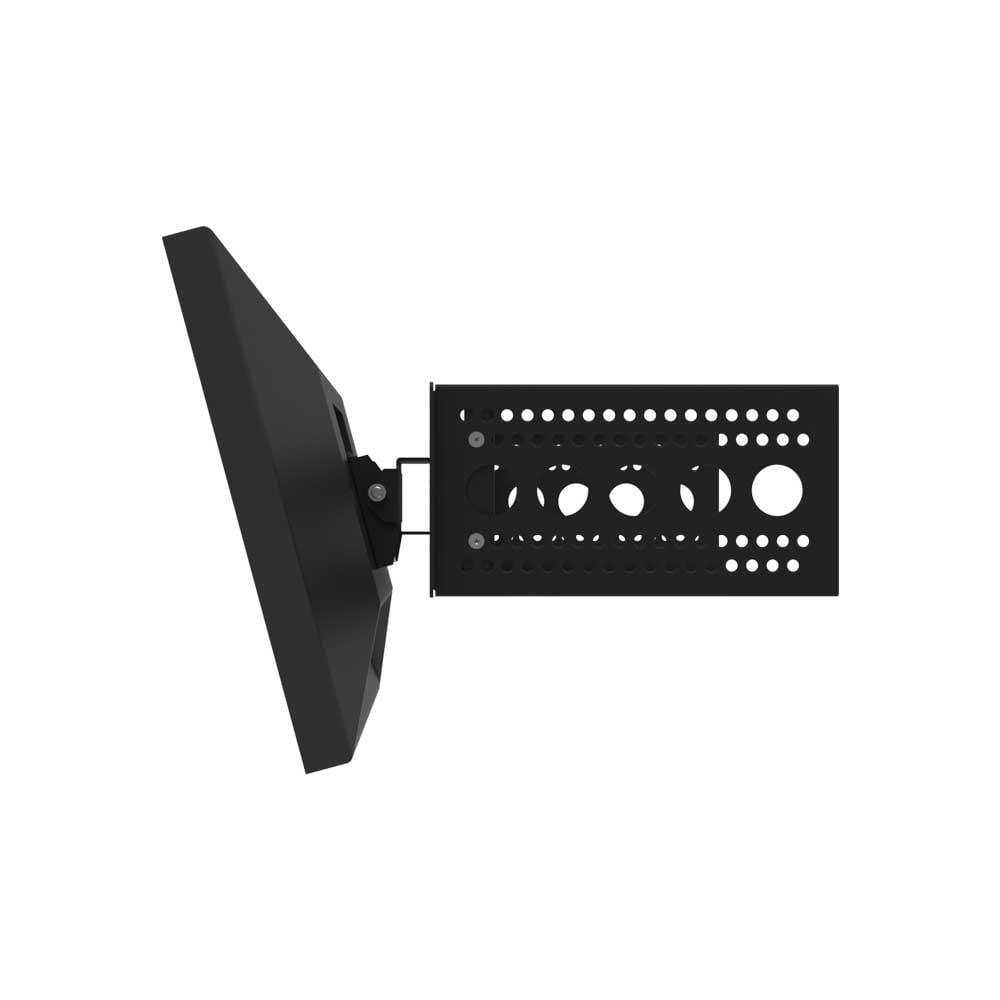

The type of tilt you want
Four way pivot arm for the most comfortable viewing angle
| VESA Standard | Hole Pattern | Monitor Weight | Screen Size |
| FDMI MIS-C | 75 x 35 mm | ≤ 10 lbs / ≤ 4.5 kg | 8" to 11.9" |
| FDMI MIS-D | 75 x 75 or 100 x 100 mm | ≤ 30.8 lbs / ≤ 14 kg | 12" to 23.9" |
| FDMI MIS-E | 200 x 100 mm | ≤ 50 lbs / ≤ 23.7 kg | 24" to 30.9" |
For more information on VESA Mounting Standards and what VESA stands for visit VESA Mounting Standards Explained. (opens in a new tab)
| Weight (lbs) | 7.810000 |
|---|---|
| Country of Manufacture | United States |
| Included Hardware | 163-6008
|
| KVM Type | Monitor Mount |
| Mounting Depth Range | Max bracket depth - 9.5" Min bracket depth - 0.44" Adjustable depth increments - 0.25" |
| Rack Type | 2 Post Rack (Telco Rack), 4 Post Rack |
| Tech Notes | Installation is flush with rack post, the width cannot exceed: 16.85" (428 mm) Wider displays can be mounted in front of rack post depending on door clearance. 15" - 19" (381 - 483 mm) displays will typically mount flush with rack post. |
| Overall Installation Depth | Center mounting bracket: 0.44" - 9.5" (11.2 - 89 mm) adjustable in 0.25" (6.35 mm) increments |
| Hole Type | Compatible with the industry standard 3/8" square hole racks Cage nuts included for square hole mounting Compatible with all standard round (non-threaded) holes Compatible with all standard threads including 10-32, 12-24, and Metric M6 |
| Assembly Notes | Phillips head screwdriver required |
| VESA Mount | Compatible with 100 mm or 75 mm VESA hole patterns |
| Finish | Black, Powder coated |
| Synnex Part Number | 163-6008 - 5772013 |
| Ingram Part Number | 163-6008 - 7MQ131 |
| RoHS Compliant | Yes |
| TAA Compliant | Yes |
