Server Cabinet Enclosures
This Product Ships Freight
Please call for shipping rates to Hawaii, Alaska and Puerto Rico.

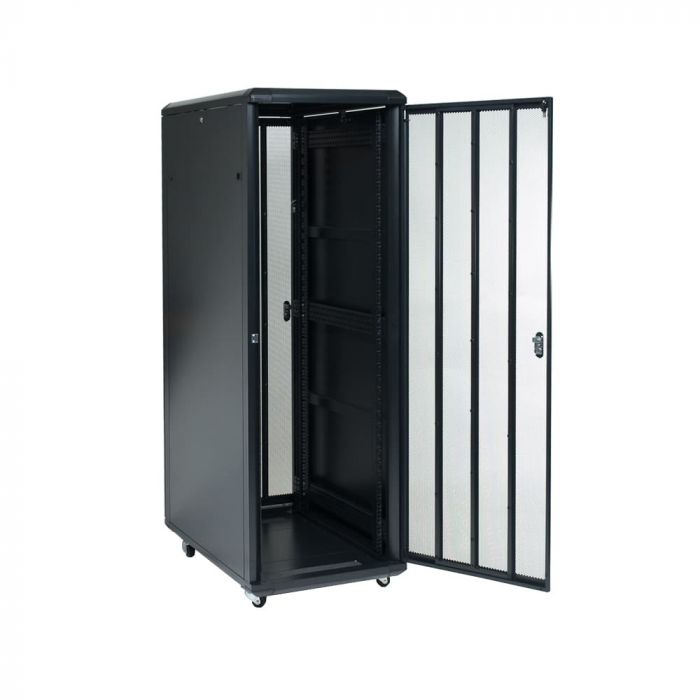

The RackSolutions Rack Model 151 server racks are compatible with Dell, HP and IBM servers and computers. They are also compatible with most other standard brands as well. These server racks meet the EIA standards for 19" server racks. The fully enclosed server racks range in size from an 18U server rack to a 42U server rack, perfect for most any server room or data center. The Rack Model 151 also ships fully assembled and ready to roll into place and start using immediately. Security has been addressed as well, with our locking front and back doors and locking side panels.
18U - 42U of rackable space
- Adjustable mounting depth of 6" - 30" (152 - 762 mm)
- Overall rack depth, 39" (990 mm)
- Universal square holes, cage nuts included
- Dell, HP, IBM compatible
Secure rack made for servers
- 63% perforation on doors exceeds OEM air flow requirements
- Doors and sides are removable and lockable
- 1680 lbs (762 kgs) capacity
- Casters, leveling feet included
- Cable pass-throughs in top & bottom of rack

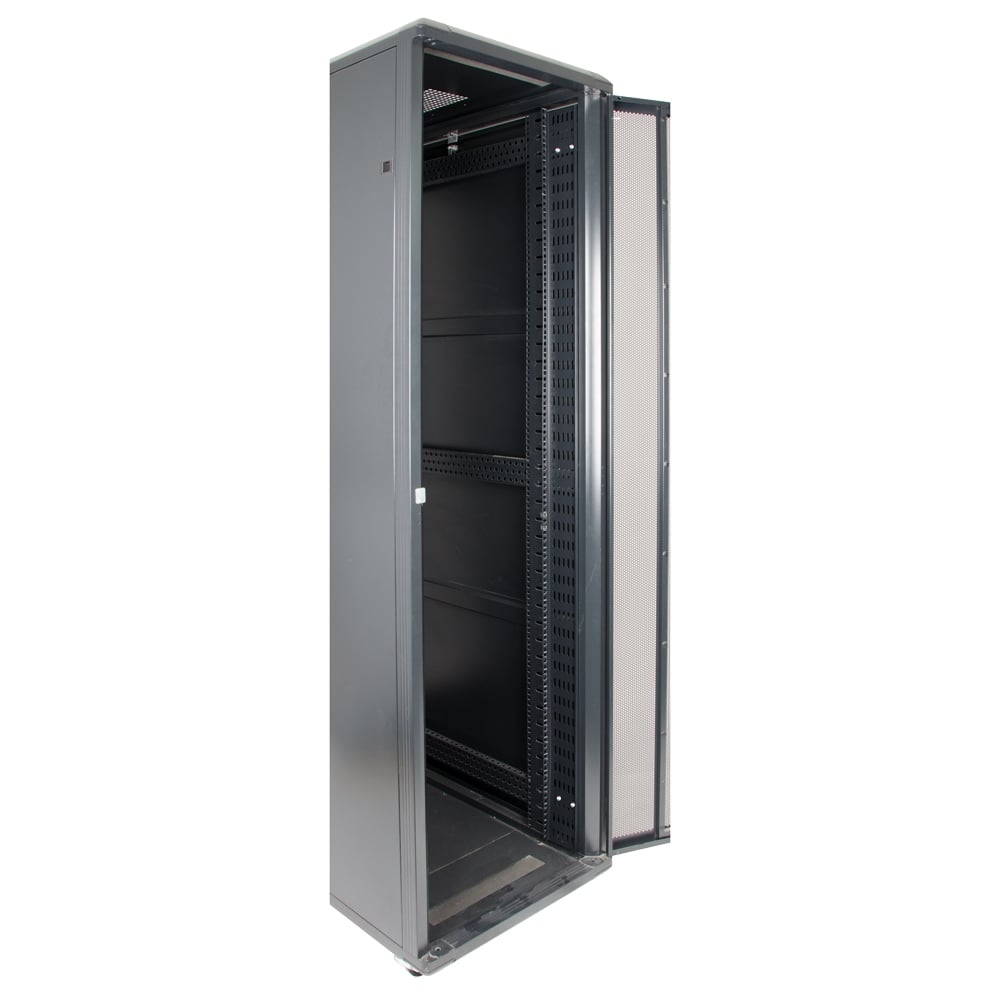

Vertical Cable Management Bar
The Vertical Cable Management bar works exclusively with these Rack-151 server enclosure. These trays run vertically from the top to the bottom of the server rack and allow you to route cables to data switches or UPS devices in a structured manner. They come in 6 different sizes to complement our range of premium server cabinets, and you can mount one on either side of the cabinet.

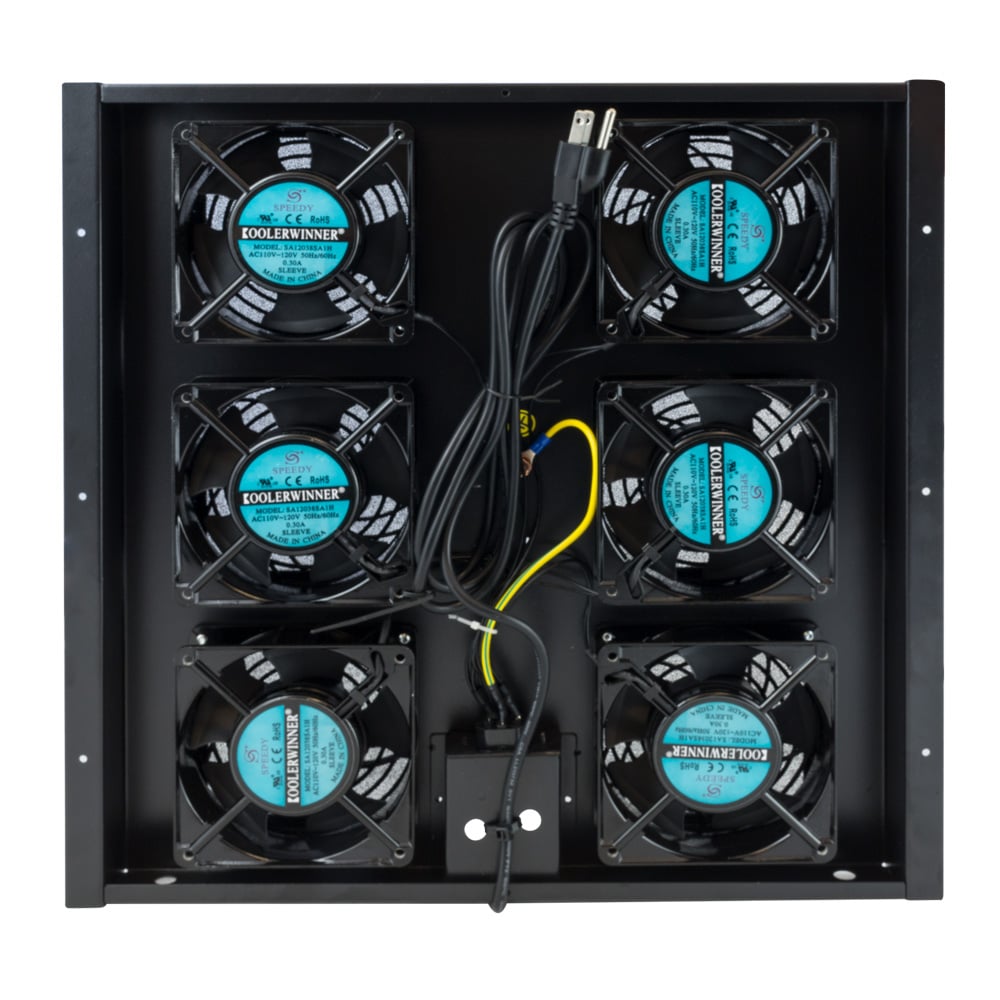

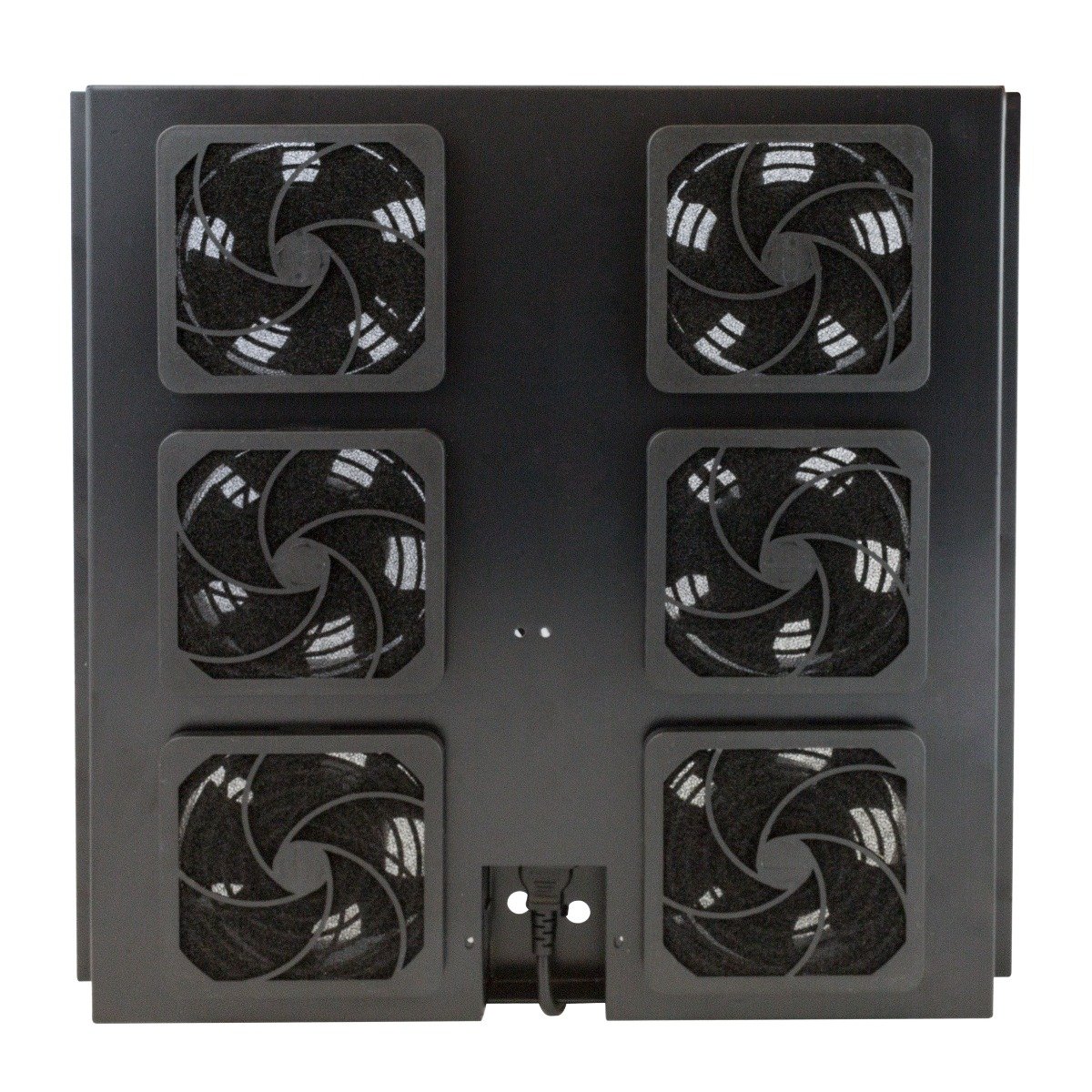

Fantray
Fans: (6) Axial AC Fans
Fan Dimensions: 120 mm x 120 mm x 38 mm
Fan Tray Dimensions: 17.2" W (435mm) X 17.3" (439mm)D
Power: 100-125VAC 50/60 Hz 0.20A per fan (1.2A Total)
Speed: 2000/2400 rpm
Noise: 36/40 dBA
Air Flow: 61/75 CFM per fan (366/450 CFM Total)
The fan tray is powered with a standard 110 power cable that may be plugged into a power strip or PDU.

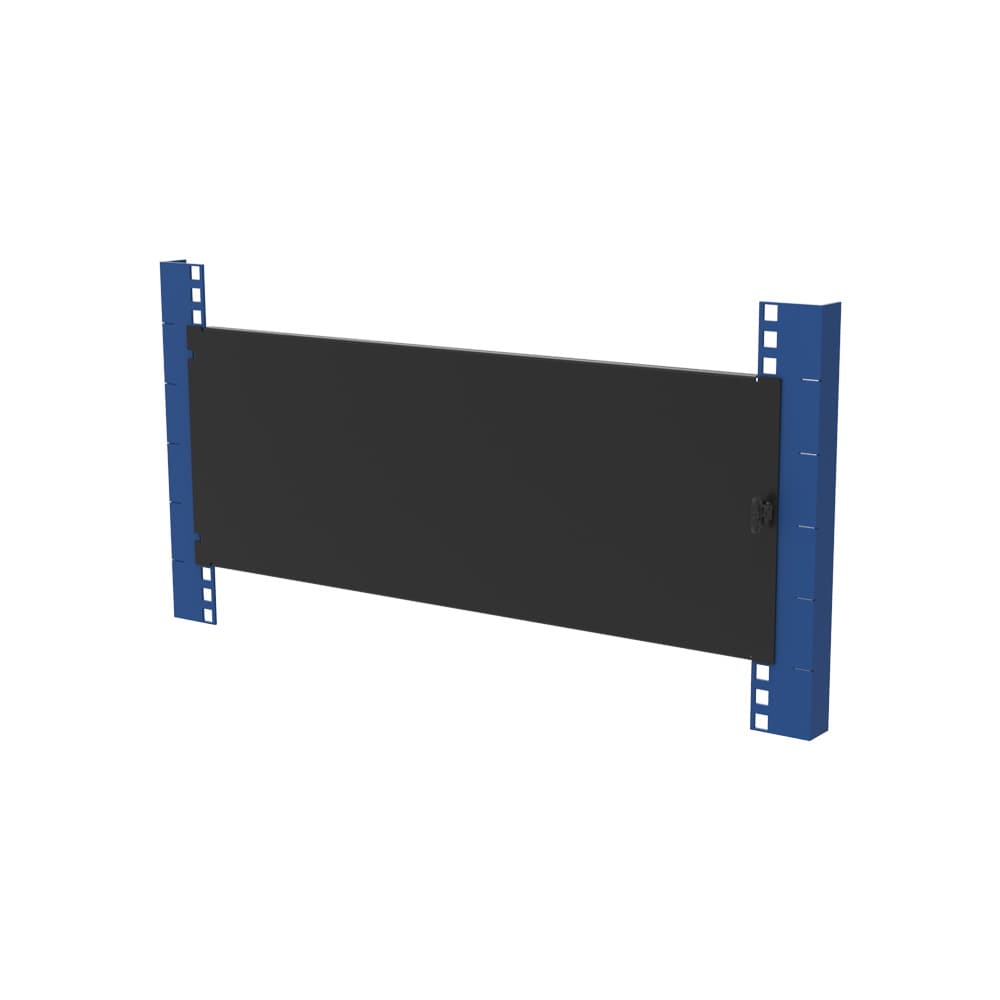

Filler Panels- 10 Packs
The Filler Panels- 10 Packs are designed to work with these racks specifically up to rack 151 42u. Use these 10 packs to fill the space not occupied by your equipment.
Baying Kit
For added stability, the Rack Model 151 may be coupled together with other Rack Model 151 units. This is accomplished with a Baying Kit. The Baying Kit requires the removal of the side panels of the server enclosure, but locks multiple racks together. This is a great way to keep your data center clean and uniformed with all your data center enclosure lined up in a row.
BABA Compliant | No |
---|---|
RoHS Compliant | Yes |
TAA Compliant | No |
UL Compliant | Yes |
ETL Compliant | No |
Country of Manufacture | China |
Included Hardware |
|
Rack Type | 4 Post Rack, Enclosed |
Dell Part Number | RACK-151-18U: A0943327 RACK-151-22U: A0942002 RACK-151-27U: A0964368 RACK-151-32U: A7475140 RACK-151-37U: A1621220 RACK-151-42U: A1149815 RACK-151-BAY: AB391528 RACK-151-FANTRAY-6: A2919081 For a full list of Dell SKUs setup in the Dell ordering system visit our Dell SKU page. |
Synnex Part Number | RACK-151-18U - 4614613 RACK-151-22U - 4614612 RACK-151-27U - 4614611 RACK-151-37U - 4614609 RACK-151-42U - 4614608 RACK-151-32U - 4614610 RACK-151-FANTRAY-6 - 4852152 137-4273 - 4614638 137-4274 - 4614639 137-4275 - 4614640 137-4276 - 4614641 137-4277 - 4614642 137-4278 - 4614643 |
Ingram Part Number | RACK-151-18U - L76331 RACK-151-22U - L76332 RACK-151-27U - L76333 RACK-151-37U - L76335 RACK-151-42U - L76336 RACK-151-32U - L76334 RACK-151-FANTRAY-6 - BG5773 RACK-151-FANTRAY-6-INSTALL - 8UF342 RACK-151-BAY - YP1608 137-4273 - ZN3843 137-4274 - ZN3842 137-4275 - ZN3841 137-4276 - ZQ5068 137-4277 - ZN3840 137-4278 - ZN3839 |
Tech Notes | UL certified |
Rack Height ( RU Height) | 18U-42U |
Finish | Black, textured powder coat |
