Rackmount Storage Boxes

Starting at $87.99 $79.99

In stock
Grouped product items
Product Name SKU Qty
2U Rackmount Box
$87.99 $79.99
3U Rackmount Box
$93.49 $84.99
4U Rackmount Box
$98.99 $89.99
Out of stock

Keep all your networking tools on-hand

  • Why put drawers & boxes in a server rack?
  • 2U, 3U, and 4U sizes
  • Store patch cables, tools, and equipment guides in a rack
  • Cable access holes in rear
  • Install 2 boxes within the same U Space back to back
  • EIA 19" compatible
  • Up to 1,500 cubic inches of storage
  • 100 lb (45 kgs) weight capacity

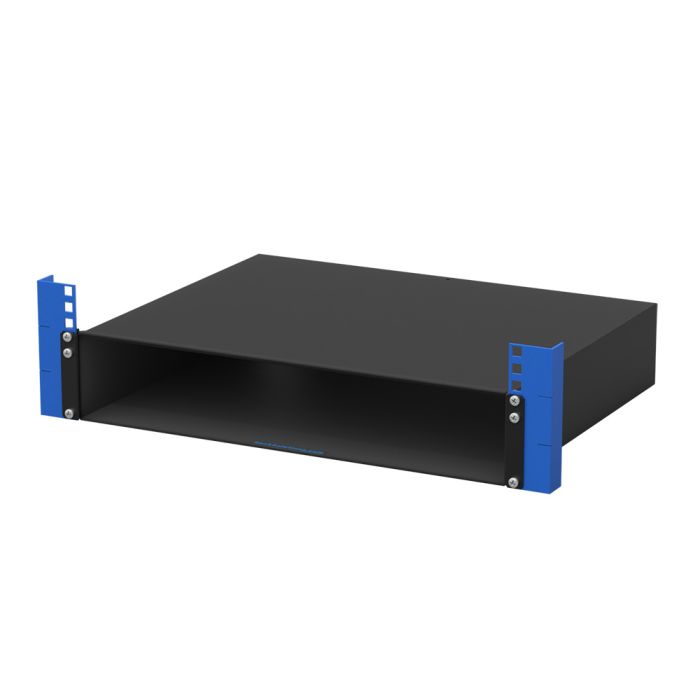

RackSolutions Rackmount Storage Box provides an easy access location to store equipment needed on-hand including mice, spare patch cables, USB drives, or networking tools. This rack-mountable storage box is available in three different sizes ranging from 2U to 4U. The open front provides quick and easy access to your equipment. Rear access holes allow cables to be routed to any equipment that might be stored in the box.

Other storage options are available, including lockable storage boxes, as well as shallow and deep rack-mounted drawers.

More Information
Visbility Bypass Enabled Yes
Assembly Notes Phillips head screwdriver required
Dimensions 2U Dimensions (W x H x D):
19" x 3.45" x 14.25" (483 mm x 88 mm x 362 mm)
3U Dimensions (W x H x D):
19" x 5.2" x 14.25" (483 mm x 132 mm x 362 mm)
4U Dimensions (W x H x D):
19" x 6.95" x 14.25" (483 mm x 177 mm x 362 mm)

Weight Capacity: 100 lbs (45 kgs)
Cable Access Hole: 1.25" (32 mm)
Inside Width: 17.45" (444 mm)
Finish Black, textured powder coat
RoHS Compliant Yes
Included Hardware Assembly Components:
  • (1) Storage Box

Rackmount Hardware:
  • (8) 12-24 Nuts
  • (8) 10-32 Pan Head Screws
  • (8) 12-24 Pan Head Screws
  • (8) 12-24 Cage Nuts
Amazon ASIN 2UBOX-160 = B003JHOEMG
4UBOX-160 = B003E91DT6
TAA Compliant Yes
