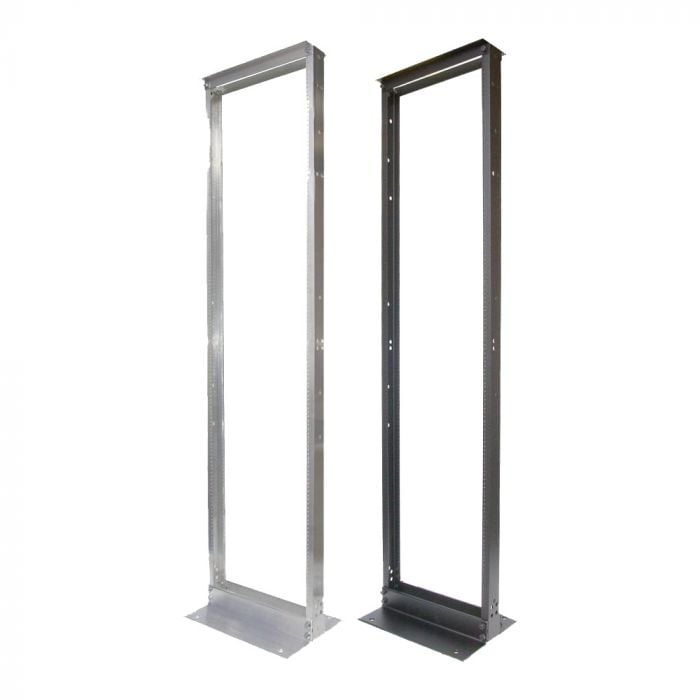

Relay racks are also commonly called Telco racks or 2 Post racks. Relay racks are primarily used to install communication and network equipment. Computing equipment can be installed in Telco racks with the use of specialized rail kits. These rail kits allow the equipment to be installed in either a center mount or a flush mount configuration. The standard rail kits can be used to install computing equipment in a 2 Post rack with the addition of a relay rack conversion kit. Telco racks are manufactured using two different methods. The highest quality 2 Post racks are extruded. This means that the aluminum is formed and not bent. The second method used to manufacture relay racks is to bend flat sheets of aluminum or steel. These Telco racks are of a lesser quality than the extruded 2 Post racks. All of the relay racks sold by RackSolutions are made from extruded aluminum and are the highest quality available.
- Additional Information
Rack Type 2 Post Rack (Telco Rack), Open Frame Rack Internal Width EIA 19" Standard Rack Hole Type 10-32 or 12-24 threads Tech Notes High strength, 6005-T5 aluminum extrusion Floor mounting holes front and rear.
Use 1/2" bolts with a large washer to mount to the floor.
These relay racks must be anchored to the floor, wall or ceiling.
Finish Clear or black, textured powder coat Rack Post Shape C Shape Assembly Notes 3/4" wrench required Mounting Depth Range 3" side channels (76.2 mm) Rack Outside Dimensions Footprint: Width x Depth 20.25" (514.4 mm) x 15" (381 mm) Rack Mount Depth 3" side channels (76.2 mm) RoHS Compliant Yes
