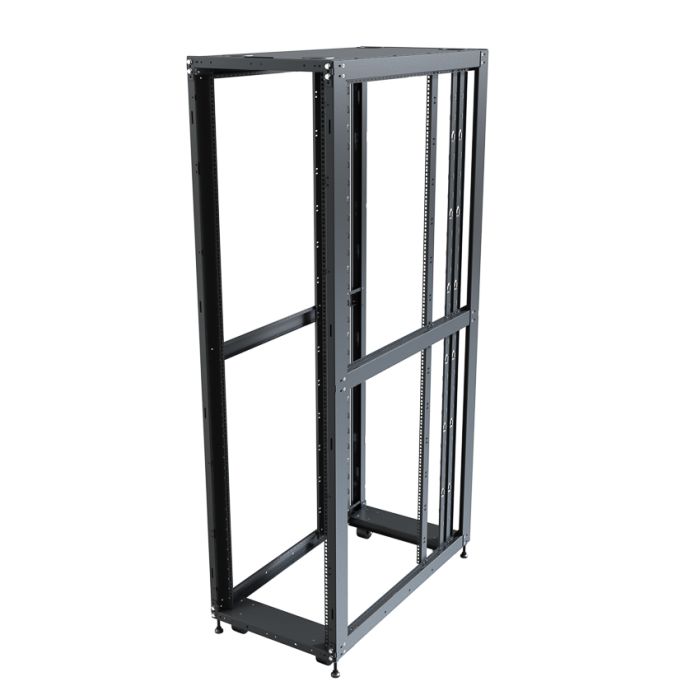

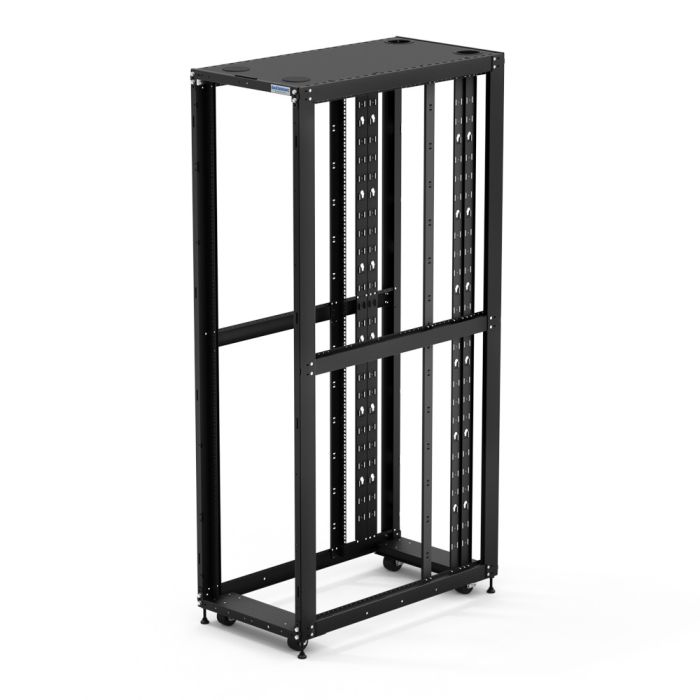

RS148 Open Frame Data Center Server Cabinet

As low as $1,967.90 $1,789.00
In stock

This Product Ships Freight

48U of Rackable Space

  • 48” of physical depth will easily accommodate modern equipment
  • 48U rack dimensions with casters : 90.25” H x 48” D x 24” W
  • Usable depth: ranges from 2” - 42”
  • Cold Rolled Steel, 13 GA
  • Meets EIA 19” Standard Rack

Easy access to IT equipment and cabling

  • 4 vertical cable management bars included
  • Casters, leveling feet included
  • Marked rack units on EIA uprights of rack
  • Compatible with overhead cabling and raised floor cabling systems
  • Static and dynamic load: 3,000 lbs

The RS148 Data Center Open Frame Rack provides an easy solution to control and monitor rack-mount equipment in IT environments. Our open frame rack is ideal for rack-mount servers, networking, and telecommunications equipment from Dell, HP, IBM, and more. Perfect for data centers and server rooms, the open frame rack is available in 48U height.

Constructed from 13 GA steel, the rack frame is finished with a matte black powder coat. The racks come fully assembled and meet EIA standards for 19” server racks. The 48U rack comes with 4 vertical cable management bars to organize cables, support power distribution, and maximize airflow pass through. Mounting points on the rack allow for custom solutions and additional accessories to be used.

Cable Management Bars (desktop image)Cable Management Bars (mobile image)

Cable Management Bars

Each of these open frame racks come standard with 4 adjustable cable management bars. Compatible with tool-less button style PDUs, the 2.5" width of the cable management bars create enough room to mount 2 standard PDUs side by side. Lances are included for making cabling easier.

Casters & Leveling Feet Kit (desktop image)Casters & Leveling Feet Kit (mobile image)

Casters & Leveling Feet Kit

The 48U rack comes built with recessed casters, allowing for clearance through a standard height doorway. The casters have the ability to move while fully populated with 3000lbs. Once the Data Center Open Frame Rack is rolled into place, it can then be set on the leveling feet.

Call to Customize (desktop image)Call to Customize (mobile image)

Call to Customize

Customization of the rack is available via phone or chat with our sales team, including removal of sides, doors, etc. As an example, if you are purchasing racks in bulk for a data center we can work with you to only include side panels on the two end racks. Contact us (opens in a new tab) so we can discuss your custom order today.

Bulk Shipping Available

If you have more than three racks, bulk savings are available to save on shipping costs. For bulk shipping, the racks come partially assembled and ship 5 per pallet.

Note: Racks are only partially assembled for bulk shipping on a pallet.

More Information
BABA Compliant No
RoHS Compliant Yes
TAA Compliant Yes
UL Compliant No
ETL Compliant No
Country of Manufacture United States
Rack Type 4 Post Rack, Open Frame
Hole Type Compatible with square, round and threaded holes
Rack Height ( RU Height) 48U
Rack Casters Casters, leveling feet included
Rack Units 48
