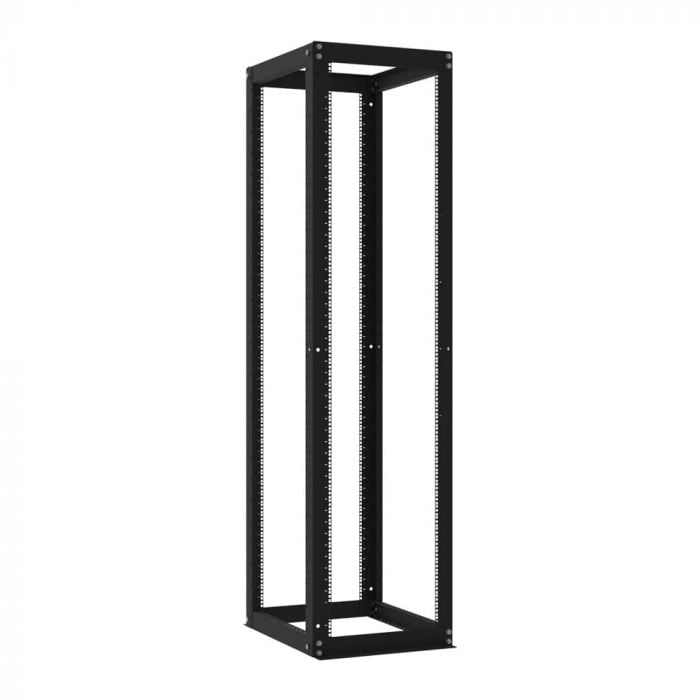

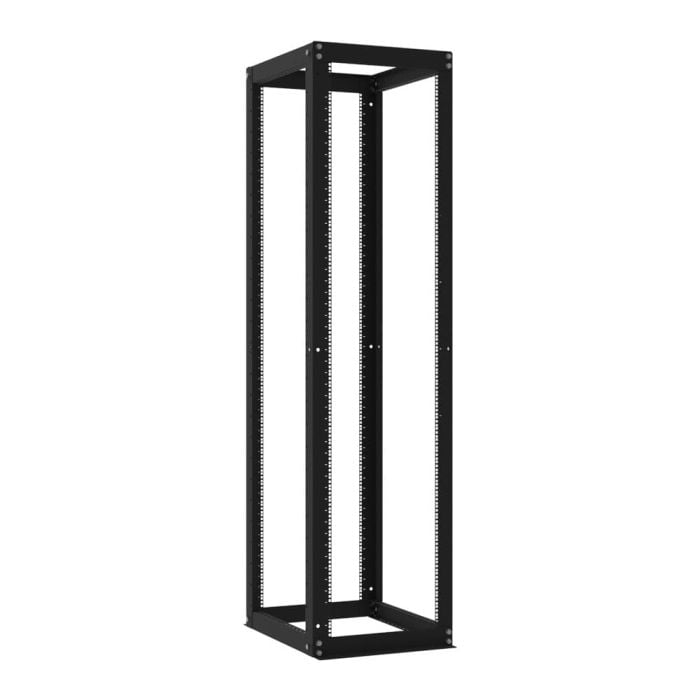

Open Frame Server Racks

As low as $409.60 $372.36
In stock
UL-Listed-Symbol (desktop image)UL-Listed-Symbol (mobile image)
RoHS-Symbol (desktop image)RoHS-Symbol (mobile image)
TAA Compliant (desktop image)TAA Compliant (mobile image)

Rack height 5RU - 58RU

  • Universal square holes, cage nuts included
  • Dell, HP, IBM, Cisco compatible
  • 58RU, 55RU, 52RU, 50RU, 44RU, 36RU, 30RU, 24RU, 16RU, 5RU
  • 3000 lbs (1360 kgs) capacity
  • Meets EIA, 19" standards

Optimizes cooling and makes wiring easy

  • 5" Vertical cable organizer included with all sizes (excluding 5RU, 50RU, 52RU, 55RU, and 58RU)
  • Streamlined support for power strips, PDUs
  • Ships FedEx (except 55RU and 58RU) Not expensive, non palletized freight
  • Quick and easy assembly

Designed for data centers

  • 24" width is perfect for data centers
  • Flush floor mount spreads load on floor tiles
  • Optional side & filler panels
  • Optional top panel with cable pass-throughs

Applications

  • High density installations
  • Cloud & virtualization providers

Note: Height kit and depth kit required to purchase complete rack.


Rack accessories

Rack tops, caster kits, side panels & power strips may be purchased separately. Follow links in each accessory section below for offerings.

RackSolutions’ Open Frame Rack provides users with a versatile, customizable solution engineered to meet a diverse set of rack mounting needs. Ranging in heights from 5U to 58U, this rack optimizes cooling and promotes easy wiring, making it ideal for high density installations. It is perfect for data center deployment. It includes a vertical cable organizer (sold separately with 50U, 52U, 55U & 58U), as well as support for power strips, PDUs and for APC tool-less mounting. This rack features square holes for cage nuts, works perfectly with tool-less rails, and it’s quick and easy to assemble. The Open Frame Rack is compatible with 19” equipment developed by all of the leading OEMs including: Dell, HP, IBM, and Super Micro.Read more about Open Frame Racks. (opens in a new tab) The Open Frame Server Rack also features a number of new design attributes built specifically for data center deployment. The bottom of the open case has flush floor mounts that spread the rack's payload evenly over the floor. It can also be ordered with optional side and top panels. The top panel comes with or without holes for cable pass-through.


Softlayer (desktop image)Softlayer (mobile image)

RackSolutions® is proud to be a leading provider of server racks and equipment for SoftLayer® (opens in a new tab).


Rack Top Options

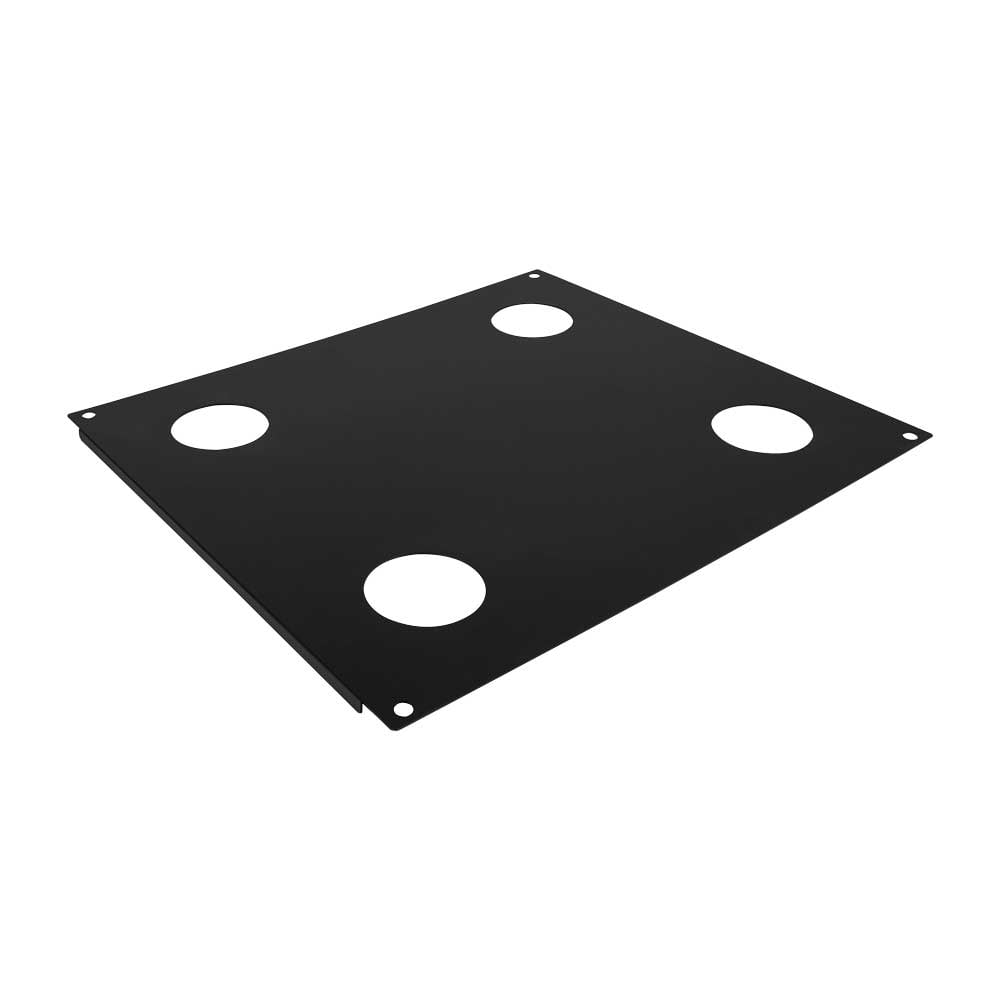

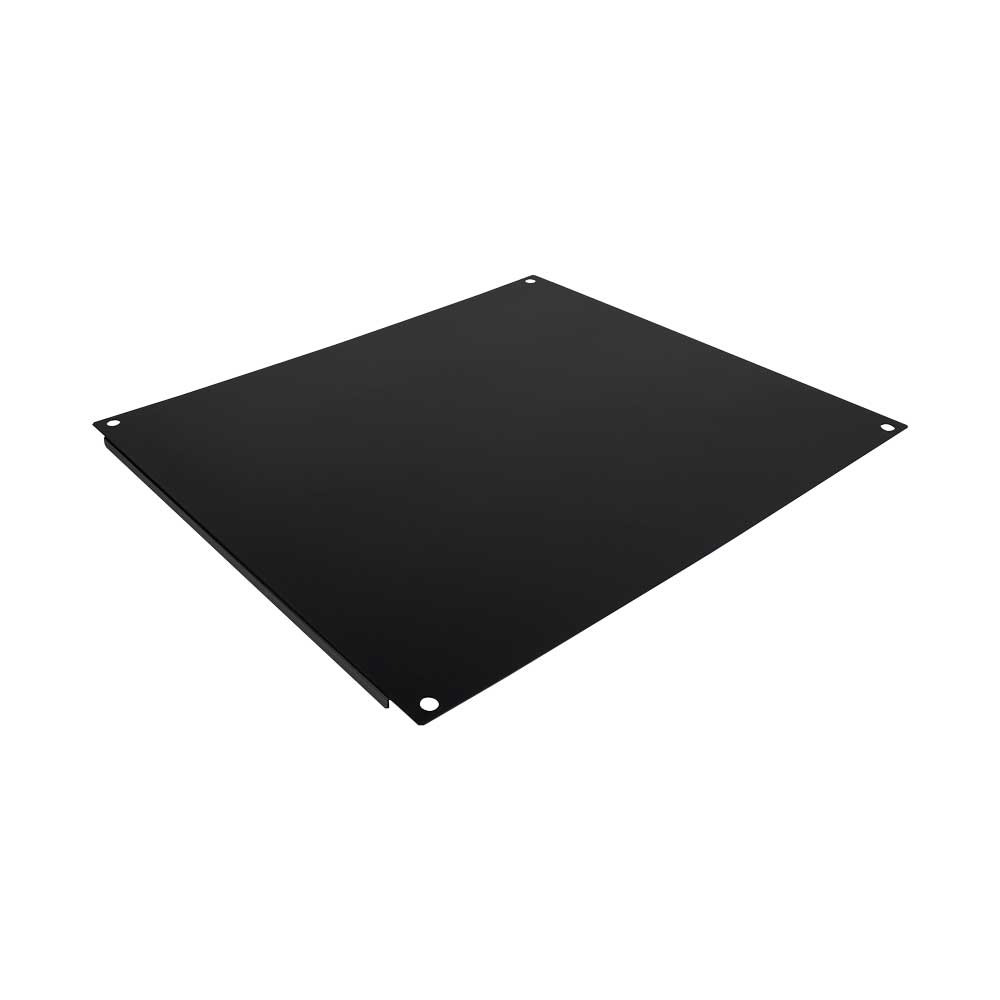

Close out the top of this rack with one of four Rack Top options. Choose from black or galvanized Rack Topswith or without cable pass-throughs. These are useful on short racks for providing additional storage space. Hardware included.

RackSolutions RACK-111 Rack Top - Without Cable Pass-Throughs (desktop image)RackSolutions RACK-111 Rack Top - Without Cable Pass-Throughs (mobile image)
RackSolutions RACK-111 Rack Top - With Cable Pass-Through (desktop image)RackSolutions RACK-111 Rack Top - With Cable Pass-Through (mobile image)

RackSolutions Rack-111 Side Panels (desktop image)RackSolutions Rack-111 Side Panels (mobile image)

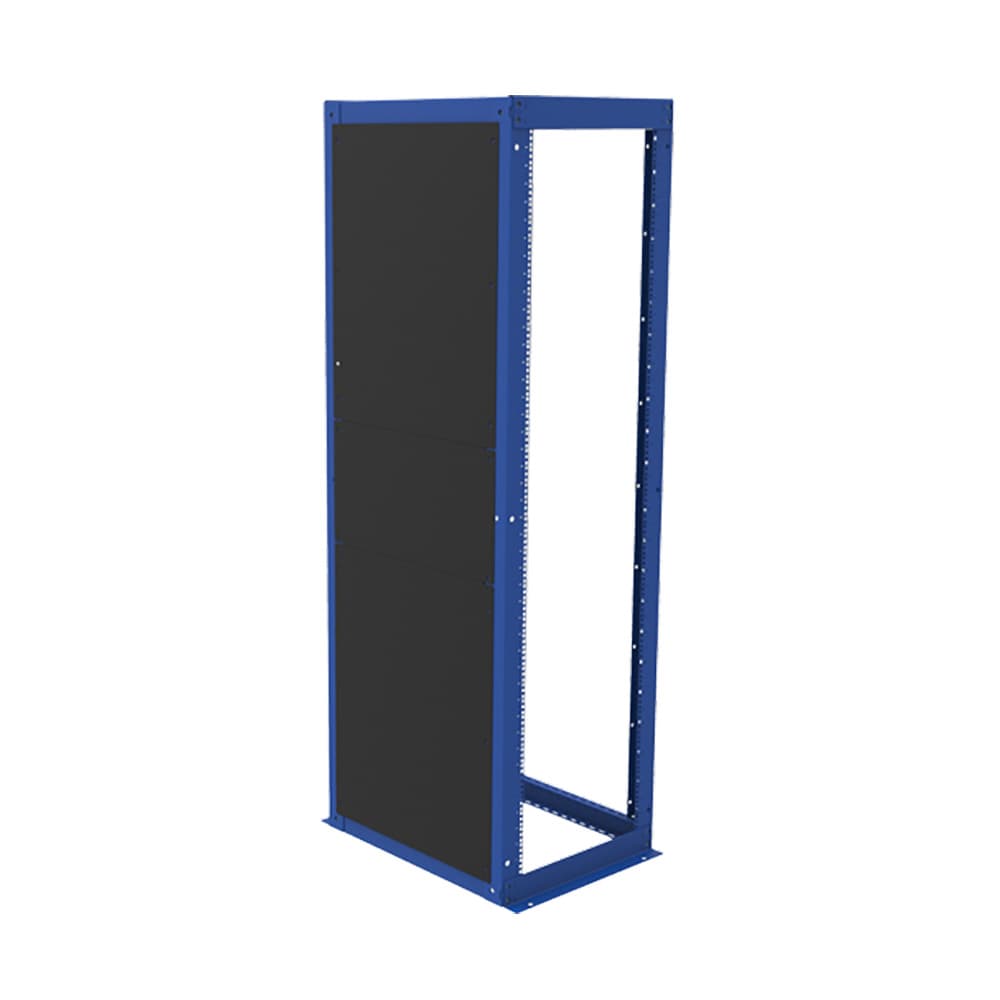

Rack Side Panels

These tool-less, non-locking, Side Panel Kitscome in 16U, 24U, 30U, 36U, 44U, 50U, 55U and 58U sizes. Each side panel kit is broken into 1, 2 or 3 sections (depending on U height) to make installation easy. 58U, 55U, 50U and 44U rack panels are broken into 3 sections per side. 36U, 30U and 24U rack panels are broken into 2 sections per side. 16U has 1 section per side. You must order 2 side panel kits per rack if you wish to install side panels on the left and right side of the rack. Open Frame Rack-111 side panels are easy to install. Side panels are only compatible with Rack-111 racks that are 28.875" deep.

RackSolutions Rack-111 Air Dams (desktop image)RackSolutions Rack-111 Air Dams (mobile image)

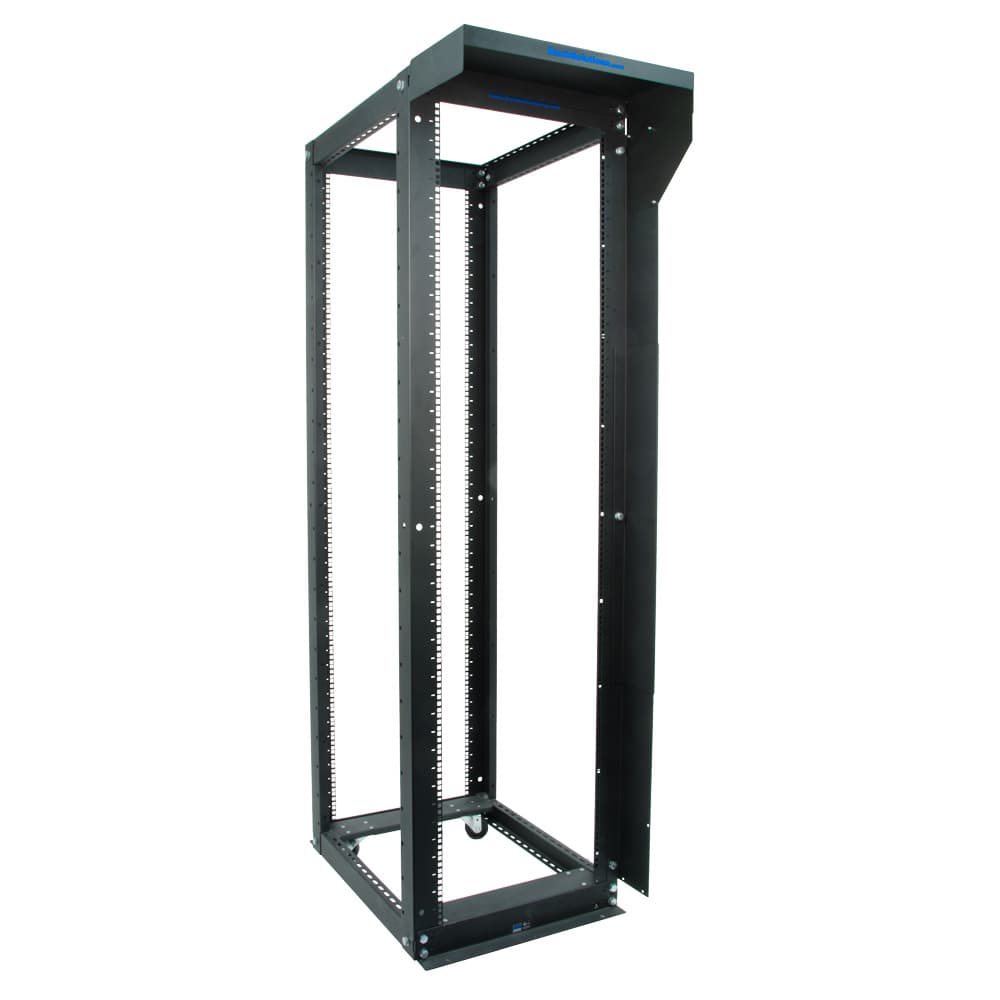

Rack Air Dams

The Air Dams from RackSolutions help direct the air toward the rack equipment, instead of at the ceiling. Choose between a 5" or 10" air dam that runs the length of the Rack 111. The adjustable size of the side air dams allow this option to work with Rack 111's in heights from 44U-58U.


Baying Kit

1 Baying Kit is required to join 2 of these racks together. 2 Baying Kits will join 3 racks together and so forth. Every rack is designed to be coupled to one-another (same height rack).

Vertical Cable Organizers

OneVertical Cable Organizeris included with each rack (sold separately with 50U, 55U, and 58U). There are eight (8) locations to mount this vertical organizer (front/rear, right/left, and inside/outside). The organizer supports up to four (4) power strips. Holes included for cable pass-thru. Multiple wire tie points. Management bar is shared with adjacent racks.

Caster Kit Option

Provides convenient rack access in tight spaces. The maximum capacity on casters is 1200 lbs (544 kg).
For safety reasons, this Caster Kitis only recommended on racks heights of 30U or less. Casters add 1.5" to overall rack height. Seeinstallation instructions (opens in a new tab)for more details.


Installation Examples

RackSolutions Rack-111 Installation Example  (desktop image)RackSolutions Rack-111 Installation Example  (mobile image)

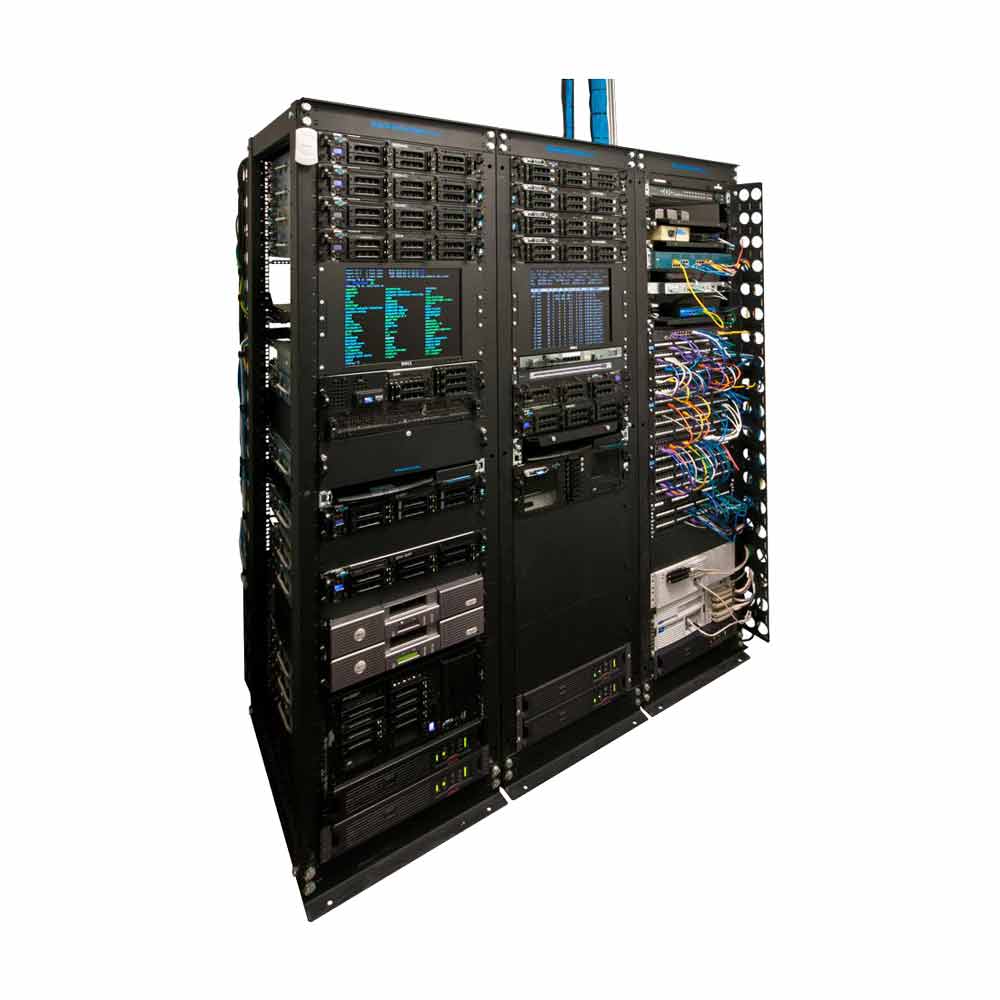

Note: Above is a great example of three, Open Frame Racks bayed together in a server room.

RackSolutions Rack-111 Installation Call Outs (desktop image)RackSolutions Rack-111 Installation Call Outs (mobile image)

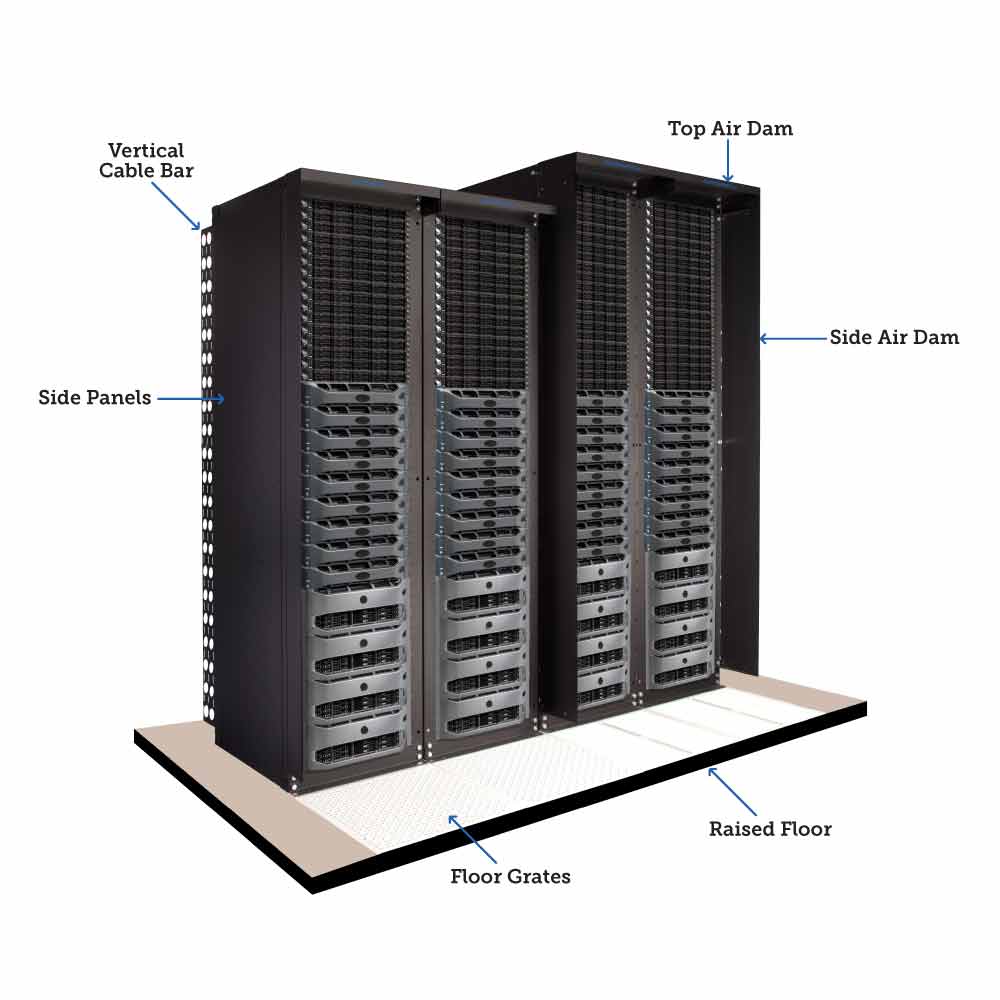

Note: Above is an example of two, 50U, Open Frame Server Racks bayed together with two, 55U Server Racks in a data center.


Customer Feedback

“RackSolutions’ quick turnaround time on racks and custom components has helped to support SoftLayer’s exponential growth at multiple domestic and international sites.”

- Joshua Rushe, V.P. of Operations at SoftLayer

"Please pass on to everyone at RackSolutions how pleased we are with the three 44U racks, shelving and rails we purchased from RackSolutions. I've been in this business a lot of years, put together many rack systems, and never have I had such an easy experience. Everything fits perfectly, plenty of hardware, easily understandable instructions, and the sliding shelving is great for all our older non-rackable servers. Our company has several different kinds of servers...Dell, Compaq, IBM, and HP, and everything fits great in your racks. We just wanted to say we would recommend your product for anyone looking for a new rack solution for their network."

- M. Morris, Systems Administrator

"You guys ROCK. I bought a 4-post rack for a client through a local reseller--am amazed at the quality of materials and the amount of care and forethought put into the design. It's a real pleasure these days to see a beautifully-made product, delivered on time, carefully packaged, with clear, simple assembly instructions. And it really made my day to see the included masonry fasteners AND the drill bit. Keep it up!"

- Brian K. IT Consultant

More Information
RoHS Compliant No
TAA Compliant No
UL Compliant No
ETL Compliant No
Country of Manufacture United States
Included Hardware
  • Metal Parts:
    • (4) Vertical Rack Posts
    • (4) Front-to-Rear Braces
    • (2) Top Angles
    • (2) Bottom Anchor Angles
    • (1) Vertical Wiring Bar
  • Fasteners:
    • (27) 1/2-13 Bolts
    • (11) 1/2-13 Nuts
    • (27) 1/2 Washers
    • (40) 12-24 Cage Nuts
    • (40) 12-24 Screws
    • (1) Floor Anchor Kit w/ Drill
Rack Type 4 Post Rack, Open Frame
Hole Type EIA 3/8" (9.5 mm) square hole
Rack Internal Width EIA 19" Standard Rack
Rack Mount Depth 28.875" (733 mm)
24" (610 mm)
20" depth (508 mm)
Dell Part Number 111-1725 - A0608138
111-1726 - A8930311
111-1728 - A1119234
111-1729 - A0608140
111-1731 - A5698624
For a full list of Dell SKUs setup in the Dell ordering system visit our Dell SKU page.
Tech Notes UL certified
Finish Black, textured powder coat
Rack Post Shape J-Form
Assembly Notes 3/4" (19 mm) wrench required
Assembly time is approximately 10 minutes
Rack Outside Dimensions Width = 24" (609 mm)
Depth = depth kit you select (28.875", 24" or 20") plus 5" or 11" based on the vertical cable bar selected
Example: 28.875" + 5" = 33.875" depth

Height
5U = 15.0" (381mm)
16U = 34.5" (870mm)
24U = 48.5" (1226mm)
30U = 59.0" (1493mm)
36U = 69.5" (1759mm)
44U = 83.5" (2115mm)
50U = 94.0" (2382mm)
52U = 97.5" (2471mm)
55U = 102.5" (2604mm)
58U = 108.0" (2737mm)
Rack Casters Optional Caster Kit with a weight capacity of 1200 lbs (544 kg). 111-1731
Dimensions Rack Height Options 5U,16U, 24U, 30U, 36U, 44U, 50U, 55U, 58U
