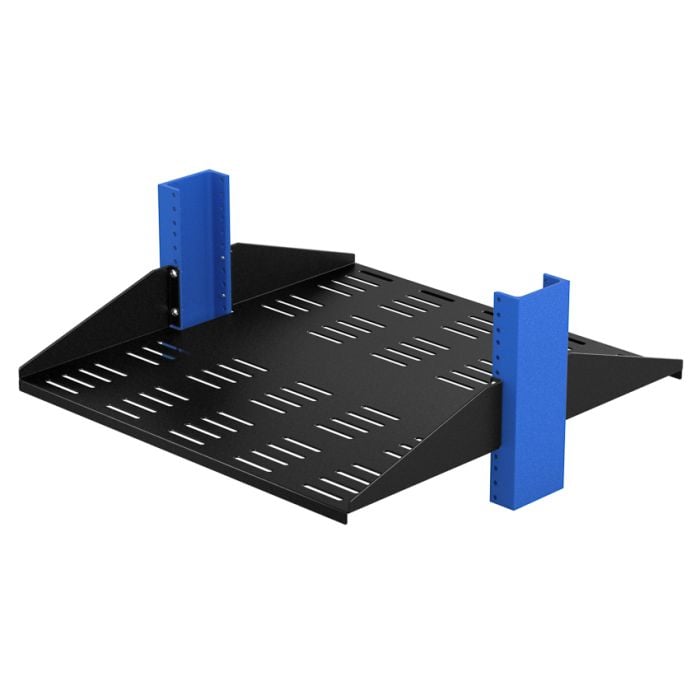

2RU 2 Post Relay Rack Shelf - 20" Depth

As low as $68.00 $61.82
In stock

Center Mounted Shelf for a Wide Variety of IT Equipment

  • Choose from solid or vented options
  • Options with flanges facing up or down
  • Center mounts to 2 Post Relay and Telco racks
  • Slots along the side of the shelf forĀ equipment straps

Compatible With Most 2 Post Racks

  • Weight Capacity: 150 lbs (68 kgs)
  • Shelf Depth: 20" (508 mm)
  • Compatible with round, threaded, or square rack holes

Want something more versatile? Check out our configurable (opens in a new tab) or adjustable (opens in a new tab) version.

NOTE: NOT Compatible with 2 Post racks with 5" - 6" wide uprights.

RackSolutions' 2RU 20 inch (508 mm) deep relay rack shelf is perfect for rack mounting networking and telecommunications rack in a 2 post rack, also called a "relay" or "telco" rack. Shelves can be used in a rack to mount equipment that might not ordinarily be rack mountable. It's large depth and 150 lb (68 kgs) weight capacity give it the ability to support a wide variety of electronic equipment. Four different configurations are available for this shelf, with vented and solid options to assist with airflow needs, as well as those with flanges facing up or down. The shelf features slots along the side of the shelf for securing equipment down using equipment straps. Our 20 inch deep 2RU 2 Post Relay Rack Shelf is EIA 310 compliant (opens in a new tab) meaning it can fit most standard 19" 2 post racks.

Shelf Features

The RackSolutions 2RU 2 Post Relay Rack Shelf is EIA 310 compliant meaning it can fit most standard 19" 2 post racks.

More Information
Country of Manufacture United States
Included Hardware 2USHL-022FULL-20UV | 2USHL-022FULL-20V
  • Assembly Hardware:
  • (1) Shelf
  • (12) 10-32 Pan Head Screws
  • (12) 12-24 Pan Head Screws

2USHL-022FULL-20US | 2USHL-022FULL-20DS
  • Assembly Hardware:
  • (1) Shelf
  • (12) 10-32 Pan Head Screws
  • (12) 12-24 Pan Head Screws
Dell Part Number 2USHL-022FULL-20DS - A7423049
2USHL-022FULL-20DV - A0475500
2USHL-022FULL-20UV - A1623696
2USHL-022FULL-20US - A9082832
For a full list of Dell SKUs setup in the Dell ordering system visit our Dell SKU page.
Synnex Part Number 2USHL-022FULL-20US - 5772007
2USHL-022FULL-20DS - 4614650
2USHL-022FULL-20UV - 4614651
2USHL-022FULL-20DV - 5070226
Ingram Part Number 2USHL-022FULL-20US - E93444
2USHL-022FULL-20DS - E93446
2USHL-022FULL-20UV - E93443
2USHL-022FULL-20DV - E93445
Assembly Notes Phillips head screwdriver required
Shelf Type Solid , Vented
Rack Type 2 Post
Fixed/Sliding Fixed
Finish Black, textured powder coat
Weight Capacity 150 lbs (68 kgs)
Rack Units 2RU
Tool-less/Standard Standard
Overall Installation Depth 20" (508 mm)
Material 16 GA Steel
TAA Compliant Yes
RoHS Compliant Yes
Tech Notes Shelf depth is measured from front to rear including flanges
