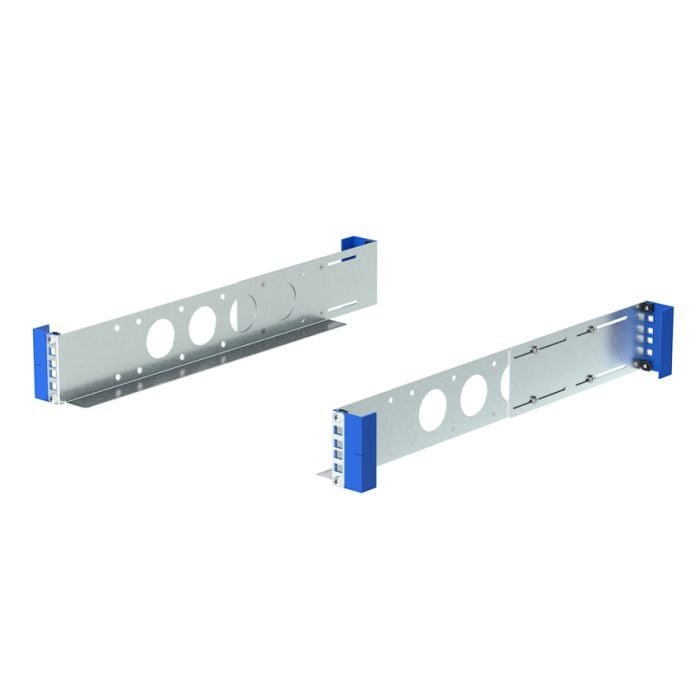

Universal Shallow Rack Rails
Fits square, round or threaded holes
- Rack mounts a variety of equipment
- Mounting depths from 10" - 24" (254 - 609.6 mm)
- 45 lbs, 75 lbs or 200 lbs capacity (1U, 2U, 3U)
Dell, HP & IBM compatible
- Alternative to OEM slide rails
Rack rails can be installed into racks with square, round or threaded holes. Rack mount equipment weighing up to 200 lbs (91 kgs) can be installed using rack rails. The rack rail can be installed into server racks with installation depths from 10" - 24" (254 - 609.6 mm).
Adjustable Rack Rails and Square Hole Mounting
The rail kit depth is fully adjustable from 10"-31.75" (254mm-806mm) all by loosening the screws and nuts. The rail kit is made from 18 GA steel and is zinc plated. The RackSolutions Universal rail kits are square hole to allow for the rails to be compatible with round, square or threaded hole racks.
The rails to be compatible with round, square or threaded hole racks.
Sizes Available
1U, 2U, 3U
Rack Type
4-Post
Mounting Depth Range
10 - 31.5"
(254-800 mm)
Rack Hole Type
Square, Round, Threaded
Cable Management Bar
Yes
Sizes Available
1U, 2U, 3U
Rack Type
2-Post Only
Mounting Depth Range
Center or Flush Mount
Rack Hole Type
Square, Round, Threaded
Cable Management Bar
Yes
Sizes Available
1U, 2U, 3U
Rack Type
4-Post
Mounting Depth Range
28 - 30"
(711 - 762 mm)
Rack Hole Type
Square, Round, Threaded
Cable Management Bar
Yes
Sizes Available
1U, 2U, 3U
Rack Type
4-Post
Mounting Depth Range
1U: 11 - 28"
(279 - 711mm)
2U: 10 - 27"
(253 - 686 mm)
Rack Hole Type
Square, Round, Threaded
Cable Management Bar
No
Size Available
1U, 2U, 3U
Rack Type
4-Post
Mounting Depth Range
11 - 39.5"
(279 - 1003 mm)
Rack Hole Type
Square, Round, Threaded
Cable Management Bar
Yes
XUKIT-109
XUKIT-009
XUKIT-109-QR
XUKIT-109-20
XUKIT-109-31
Sizes Available
1U, 2U, 3U
1U, 2U, 3U
1U, 2U, 3U
1U, 2U, 3U
1U, 2U, 3U
Rack Type
4-Post
2-Post Only
4-Post
4-Post
4-Post
Mounting Depth Range
10 - 31.5"
(254-800 mm)
Center or Flush Mount
28 - 30"
(711 - 762 mm)
1U: 11 - 28"
(279 - 711mm)
2U: 10 - 27"
(253 - 686 mm)
11 - 39.5"
(279 - 1003 mm)
Rack Hole Type
Square, Round, Threaded
Square, Round, Threaded
Square, Round, Threaded
Square, Round, Threaded
Square, Round, Threaded
Cable Management Bar
Yes
Yes
Yes
No
Yes
| Made In America | Yes | BABA Compliant | No | RoHS Compliant | Yes | TAA Compliant | Yes | UL Compliant | No | ETL Compliant | No | Country of Manufacture | United States | OEM Compatibility | Dell, HP / HPE, Lenovo, Universal | U Height | 1U, 2U, 3U | Rack Type | 4 Post | Rack Hole Type | 10-32 Thread, 12-24 Thread, M6 Thread, Square Hole | Fixed/Sliding | Sliding | Weight Capacity | 30 - 100 lbs, 125 - 250 lbs | Finish | Galvanized | Dell Part Number | 1UKIT-109-20 - A2778999 |
Synnex Part Number | 1UKIT-109-20 - 4614573 2UKIT-109-20 - 4614574 3UKIT-109-20 - 4614575 | Ingram Part Number | 1UKIT-109-20 - Y74703 2UKIT-109-20 - PQ8682 |
|---|
Components:
- (1) Left Fixed Rail
- (1) Right Fixed Rail
- (2) Rear Brackets
Assembly Hardware Kit:
- (8) 8-32 Flat Head Screws
- (8) 8-32 Nuts
Cage Nuts for Equipment Thumb Screws:
- (2) 10-32 Cage Nuts “Silver” (Dell Standard)
- (2) 12-24 Cage Nuts “Black”
- (2) M6 Cage Nuts “Gold” (HP-Compaq Standard)
Rack Hardware Kit (2 bags):
- (8) 10-32 Pan Head Screws
- (8) 12-24 Pan Head Screws
- (8) 12-24 Cage Nuts
- (8) 12-24 Square Nuts
Components:
- (1) Left Fixed Rail
- (1) Right Fixed Rail
- (2) Rear Brackets
Assembly Hardware Kit:
- (8) 8-32 Flat Head Screws
- (8) 8-32 Nuts
Cage Nuts for Equipment Thumb Screws:
- (2) 10-32 Cage Nuts “Silver” (Dell Standard)
- (2) 12-24 Cage Nuts “Black”
- (2) M6 Cage Nuts “Gold” (HP-Compaq Standard)
Rack Hardware Kit (2 bags):
- (8) 10-32 Pan Head Screws
- (8) 12-24 Pan Head Screws
- (8) 12-24 Cage Nuts
- (8) 12-24 Square Nuts
Components:
- (1) Left Fixed Rail
- (1) Right Fixed Rail
- (2) Rear Brackets
Assembly Hardware Kit:
- (8) 8-32 Flat Head Screws
- (8) 8-32 Nuts
Cage Nuts for Equipment Thumb Screws:
- (2) 10-32 Cage Nuts “Silver” (Dell Standard)
- (2) 12-24 Cage Nuts “Black”
- (2) M6 Cage Nuts “Gold” (HP-Compaq Standard)
Rack Hardware Kit (2 bags):
- (8) 10-32 Pan Head Screws
- (8) 12-24 Pan Head Screws
- (8) 12-24 Cage Nuts
- (8) 12-24 Square Nuts
