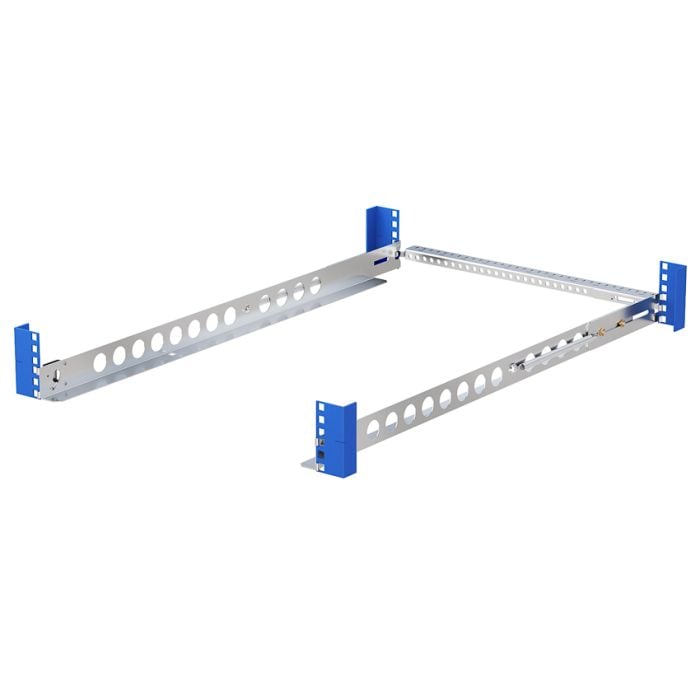

Tool-less Rack Rails
Installs quickly into square hole, 4Post racks
- Rackmounts a variety of equipment
- Tool-less rack rails install in seconds
- 45 lbs, 75 lbs or 200 lbs capacity (1U, 2U, 3U)
Dell, HP, Apple & IBM compatible
- Alternative to OEM slide rails
- Mounting depth from 28 - 30" (711 - 762 mm)
- Tool-less, cable management bar included
- Work with square hole, 4Post racks
2Post rack mounting
- Center mount installation also requires 2POST-2UKIT
- Flush mount installation also requires 4UKIT-003
Tool-less rack rails can be installed into racks with square holes. Rackmount equipment weighing up to 200 lbs (90.7 kgs) can be installed using a tool-less rack rail. The rack rail is 27.87" (708 mm) deep and can be installed into server racks with installation depths from 28 - 30" (711 - 762 mm) and supports equipment up to 35" (889 mm). The tool-less rack rail is primarily for 4Post racks, but it can be installed in other 2Post configurations as well with the addition of 2Post conversion kits. Center mount installations require 2POST-2UKIT and flush mount installations require 4UKIT-003
Sizes Available
1U, 2U, 3U
Rack Type
4-Post
Mounting Depth Range
10 - 31.5"
(254-800 mm)
Rack Hole Type
Square, Round, Threaded
Cable Management Bar
Yes
Sizes Available
1U, 2U, 3U
Rack Type
2-Post Only
Mounting Depth Range
Center or Flush Mount
Rack Hole Type
Square, Round, Threaded
Cable Management Bar
Yes
Sizes Available
1U, 2U, 3U
Rack Type
4-Post
Mounting Depth Range
28 - 30"
(711 - 762 mm)
Rack Hole Type
Square, Round, Threaded
Cable Management Bar
Yes
Sizes Available
1U, 2U, 3U
Rack Type
4-Post
Mounting Depth Range
1U: 11 - 28"
(279 - 711mm)
2U: 10 - 27"
(253 - 686 mm)
Rack Hole Type
Square, Round, Threaded
Cable Management Bar
No
Size Available
1U, 2U, 3U
Rack Type
4-Post
Mounting Depth Range
11 - 39.5"
(279 - 1003 mm)
Rack Hole Type
Square, Round, Threaded
Cable Management Bar
Yes
XUKIT-109
XUKIT-009
XUKIT-109-QR
XUKIT-109-20
XUKIT-109-31
Sizes Available
1U, 2U, 3U
1U, 2U, 3U
1U, 2U, 3U
1U, 2U, 3U
1U, 2U, 3U
Rack Type
4-Post
2-Post Only
4-Post
4-Post
4-Post
Mounting Depth Range
10 - 31.5"
(254-800 mm)
Center or Flush Mount
28 - 30"
(711 - 762 mm)
1U: 11 - 28"
(279 - 711mm)
2U: 10 - 27"
(253 - 686 mm)
11 - 39.5"
(279 - 1003 mm)
Rack Hole Type
Square, Round, Threaded
Square, Round, Threaded
Square, Round, Threaded
Square, Round, Threaded
Square, Round, Threaded
Cable Management Bar
Yes
Yes
Yes
No
Yes
| BABA Compliant | No |
|---|---|
| RoHS Compliant | Yes |
| TAA Compliant | Yes |
| UL Compliant | No |
| ETL Compliant | No |
| Country of Manufacture | United States |
| Included Hardware | 1UKIT-109-QR | 2UKIT-109-QR | 3UKIT-109-QR
|
| Dell Part Number | 1UKIT-109-QR - A2849214 |
| Synnex Part Number | 1UKIT-109-QR - 5744754 2UKIT-109-QR - 5744756 3UKIT-109-QR - 5744757 |
| Ingram Part Number | 1UKIT-109-QR - T25824 2UKIT-109-QR - T25825 3UKIT-109-QR - T25826 |
| Fixed/Sliding | Fixed |
| Finish | Zinc plated |
| Hole Type | Square hole only |
