RackSolutions 1U-3U Deep Server Rack Rails Shareable

Get shareable link

RackSolutions 1U-3U Deep Server Rack Rails Hint

Designed for deep server racks

Installs in server racks up to 39.5" (1003 mm)
Work with square, round, threaded holes
45 lbs, 75 lbs or 200 lbs capacity (1U, 2U, 3U)

Dell, HP & IBM compatible

Alternative to OEM slide rails
Mounting depth from 11" to 39.5" (279 mm - 1003 mm)
Universal rails mount in any 4Post rack

Details

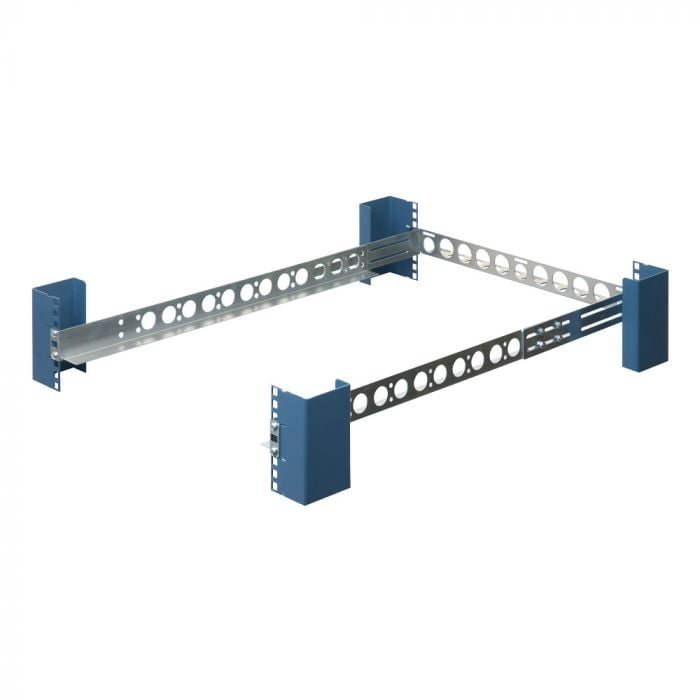

31" Universal Rackmount Rails are designed for deep Server Racks. These Rackmount Rails can be installed into racks with square, round, or threaded holes. Rack Mount Equipment weighing up to 200 lbs (90.7 kgs) can be installed using Rackmount Rails. The Rackmount Rail is 30.6" (777 mm) deep and can be installed into Server Racks with installation depths up to 39.5" (1003 mm).

Adjustable Rack Rails and Square Hole Mounting

The rail kit depth is fully adjustable from 10"-31.75" (254mm-806mm) all by loosening the screws and nuts. The rail kit is made from 18 GA steel and is zinc plated. The RackSolutions Universal rail kits are square hole to allow for the rails to be compatible with round, square or threaded hole racks.

XUKIT-109 Universal Rack Rails (desktop image)

XUKIT-109 Universal Rack Rails (mobile image)

XUKIT-009 2 Post Rack Rails (desktop image)

XUKIT-009 2 Post Rack Rails (mobile image)

XUKIT-109-QR Tool-Less Rack Rails (desktop image)

XUKIT-109-QR Tool-Less Rack Rails (mobile image)

XUKIT-109-20 Universal Shallow Rack Rails (desktop image)

XUKIT-109-20 Universal Shallow Rack Rails (mobile image)

XUKIT-109

XUKIT-009

XUKIT-109-QR

XUKIT-109-20

XUKIT-109-31

Sizes Available

1U, 2U, 3U

Rack Type

4-Post

2-Post Only

4-Post

Mounting Depth Range

10 - 31.5"
(254-800 mm)

Center or Flush Mount

28 - 30"
(711 - 762 mm)

1U: 11 - 28"
(279 - 711mm)
2U: 10 - 27"
(253 - 686 mm)

11 - 39.5"
(279 - 1003 mm)

Rack Hole Type

Square, Round, Threaded

Cable Management Bar

Yes

Additional Information

More Information
BABA Compliant	No
RoHS Compliant	Yes
TAA Compliant	Yes
UL Compliant	No
ETL Compliant	No
Country of Manufacture	United States
Included Hardware	1UKIT-109-31 \| 2UKIT-109-31 \| 3UKIT-109-31 Components: (1) Left Fixed Rail (1) Right Fixed Rail (2) Rear Brackets (1) Cable Crossbar (1) 30” Hook and Loop Cable Tie Assembly Hardware Kit: (8) 8-32 Flat Head Screws (8) 8-32 Nuts Cage Nuts for Equipment Thumb Screws: (2) 10-32 Cage Nuts “Silver” (Dell Standard) (2) 12-24 Cage Nuts “Black” (2) M6 Cage Nuts “Gold” (HP-Compaq Standard) Rack Hardware Kit (2 bags): (12) 10-32 Pan Head Screws (12) 12-24 Pan Head Screws (12) 12-24 Cage Nuts (12) 12-24 Square Nuts
Dell Part Number	2UKIT-109-31 - A2778997 3UKIT-109-31 - A7200309 For a full list of Dell SKUs setup in the Dell ordering system visit our Dell SKU page.
Synnex Part Number	1UKIT-109-31 - 4884525 2UKIT-109-31 - 4884526 3UKIT-109-31 - 4884527
Ingram Part Number	1UKIT-109-31 - Y74704 2UKIT-109-31 - Y74705 3UKIT-109-31 - Y74706
Fixed/Sliding	Fixed
Tech Notes	The Rackmount Rail Kit should be used when the depth of the Server Rack exceeds the installation range of the Server's Rail Kit. The Rackmount Rail Kit can be used in circumstances where the original Rail Kit has been lost or damaged.
Finish	Zinc Plated
Hole Type	Compatible with the industry standard 3/8" square hole racks Cage nuts included for square hole mounting Compatible with all standard round (non-threaded) holes Compatible with all standard threads including 10-32, 12-24, and Metric M6
