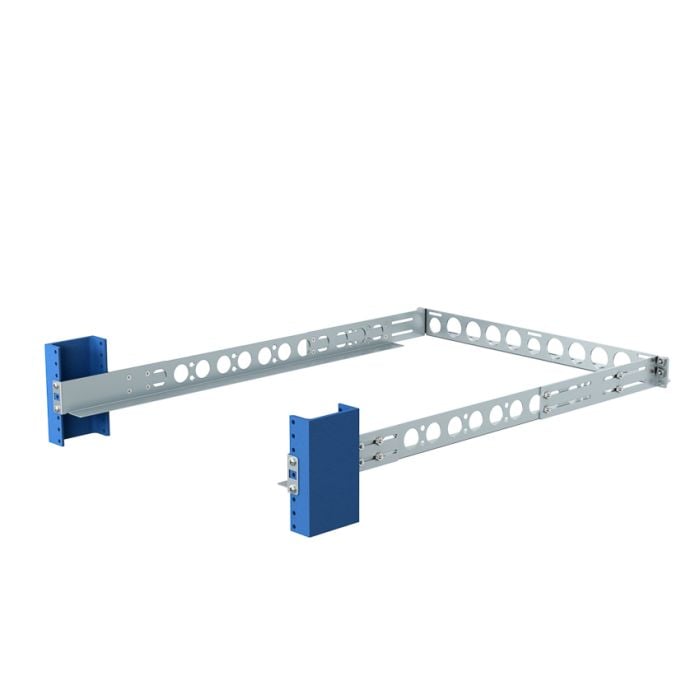

2 Post Rack Rails

As low as $160.00 $145.45
In stock

Mounts in any 2Post rack

  • Square or round hole racks (10-32, 12-24, metric M6 threads)
  • Weight capacity, 45 - 200 lbs
  • Includes cable management bar
  • Hook-and-loop straps provided for securing cables

Excellent alternative to OEM rails

  • Dell, HP & IBM compatible
  • Mounting depth: 10 - 31.75" (254 - 806 mm)
  • 24" (610 mm) long

The RackSolutions 2 Post Rack Rails are designed to give users a durable, high-performance rail solution for standard 19" server racks. As a result, the 2 Post Rack Rails are simultaneously durable and versatile. Durability comes from strong construction principles and a zinc plating finish. This allows the device to support 45 lbs for 1U devices, 75 lbs for 2U and a maximum weight of 200 lbs for 3U devices. All of this is achieved in a form factor 24" long with a mounting depth of 10" to 31.75". The 2 Post Rack Rails get their diversity from a form factor compatible with DellHP (opens in a new tab) and IBM (opens in a new tab). servers. Furthermore, the rails can be mounted in both center and flush settings, making them easy to deploy in a variety of settings. This ease is furthered by the rails' compatibility with square, round or threaded holes. Besides giving users durability and versatility, the rails also offer a reliable, professional solution. To make this possible, RackSolutions equipped the rails with a built-in cable management bar to ease cable routing and hook-and-loop straps to help keep wires from going astray. The 2 Post Rack Rails ship with screws, cage nuts and nuts for all rack types, easing installation and ensuring users have all the hardware they need to assemble the server storage solution.

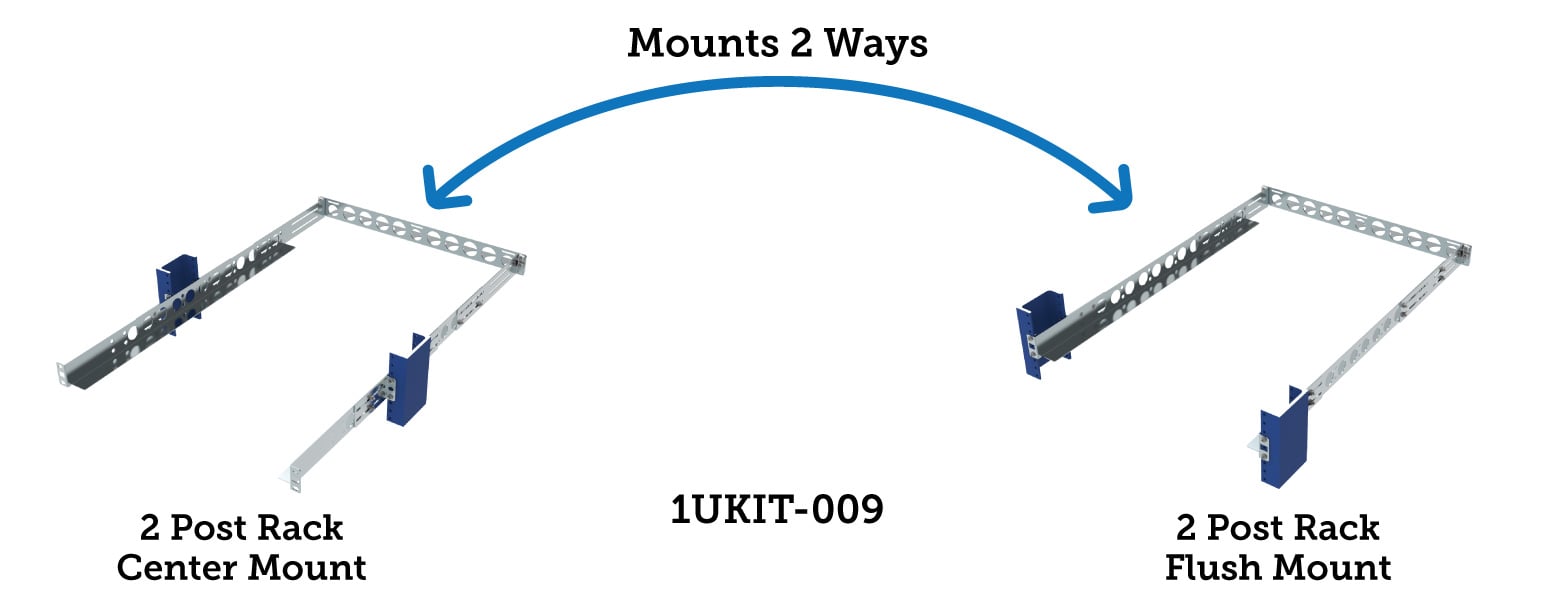

1UKIT-009 2 Way Mounting (desktop image)1UKIT-009 2 Way Mounting (mobile image)

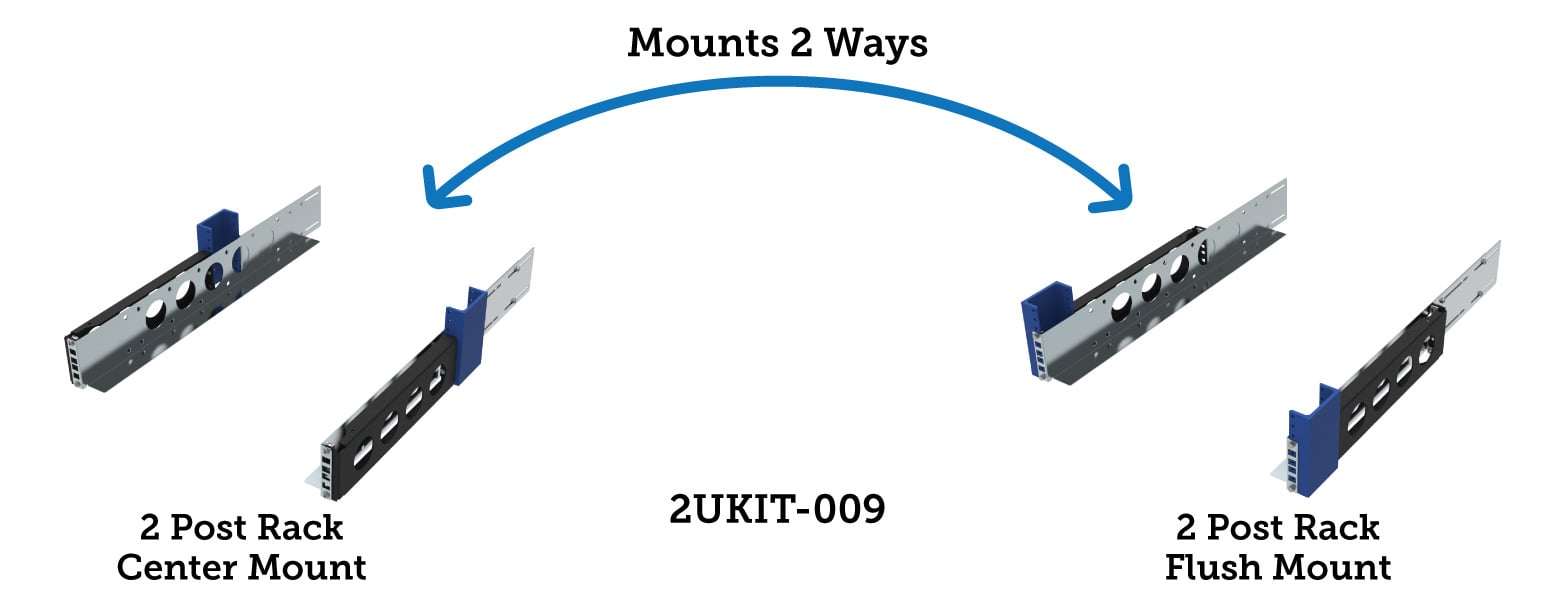

2UKIT-009 2 Way Mounting (desktop image)2UKIT-009 2 Way Mounting (mobile image)

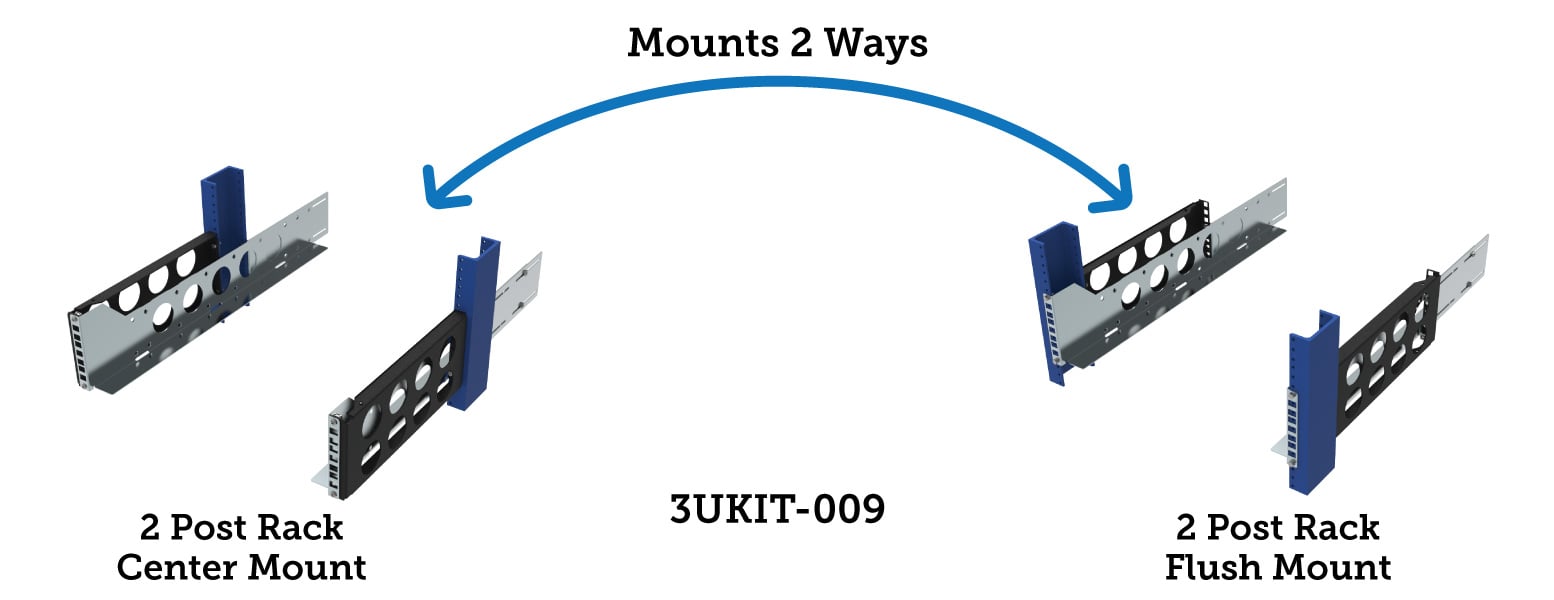

3UKIT-009 2 Way Mounting (desktop image)3UKIT-009 2 Way Mounting (mobile image)

XUKIT-109 Universal Rack Rails  (desktop image)XUKIT-109 Universal Rack Rails  (mobile image)

Sizes Available
1U, 2U, 3U

Rack Type
4-Post

Mounting Depth Range
10 - 31.5"
(254-800 mm)

Rack Hole Type
Square, Round, Threaded

Cable Management Bar
Yes

XUKIT-009 2 Post Rack Rails  (desktop image)XUKIT-009 2 Post Rack Rails  (mobile image)

Sizes Available
1U, 2U, 3U

Rack Type
2-Post Only

Mounting Depth Range
Center or Flush Mount

Rack Hole Type
Square, Round, Threaded

Cable Management Bar
Yes

XUKIT-109-QR Tool-Less Rack Rails (desktop image)XUKIT-109-QR Tool-Less Rack Rails (mobile image)

Sizes Available
1U, 2U, 3U

Rack Type
4-Post

Mounting Depth Range
28 - 30"
(711 - 762 mm)

Rack Hole Type
Square, Round, Threaded

Cable Management Bar
Yes

XUKIT-109-20 Universal Shallow Rack Rails (desktop image)XUKIT-109-20 Universal Shallow Rack Rails (mobile image)

Sizes Available
1U, 2U, 3U

Rack Type
4-Post

Mounting Depth Range
1U: 11 - 28"
(279 - 711mm)
2U: 10 - 27"
(253 - 686 mm)

Rack Hole Type
Square, Round, Threaded

Cable Management Bar
No

XUKIT-109-31 Deep Mount Rack Rails  (desktop image)XUKIT-109-31 Deep Mount Rack Rails  (mobile image)

Size Available
1U, 2U, 3U

Rack Type
4-Post

Mounting Depth Range
11 - 39.5"
(279 - 1003 mm)

Rack Hole Type
Square, Round, Threaded

Cable Management Bar
Yes

Blue Stack Logo Web CC (desktop image)Blue Stack Logo Web CC (mobile image)
XUKIT-109 Universal Rack Rails  (desktop image)XUKIT-109 Universal Rack Rails  (mobile image)
XUKIT-009 2 Post Rack Rails  (desktop image)XUKIT-009 2 Post Rack Rails  (mobile image)
XUKIT-109-QR Tool-Less Rack Rails (desktop image)XUKIT-109-QR Tool-Less Rack Rails (mobile image)
XUKIT-109-20 Universal Shallow Rack Rails (desktop image)XUKIT-109-20 Universal Shallow Rack Rails (mobile image)
XUKIT-109-31 Deep Mount Rack Rails  (desktop image)XUKIT-109-31 Deep Mount Rack Rails  (mobile image)

XUKIT-109

XUKIT-009

XUKIT-109-QR

XUKIT-109-20

XUKIT-109-31

Sizes Available

1U, 2U, 3U

1U, 2U, 3U

1U, 2U, 3U

1U, 2U, 3U

1U, 2U, 3U

Rack Type

4-Post

2-Post Only

4-Post

4-Post

4-Post

Mounting Depth Range

10 - 31.5"
(254-800 mm)

Center or Flush Mount

28 - 30"
(711 - 762 mm)

1U: 11 - 28"
(279 - 711mm)
2U: 10 - 27"
(253 - 686 mm)

11 - 39.5"
(279 - 1003 mm)

Rack Hole Type

Square, Round, Threaded

Square, Round, Threaded

Square, Round, Threaded

Square, Round, Threaded

Square, Round, Threaded

Cable Management Bar

Yes

Yes

Yes

No

Yes


More Information
BABA Compliant No
RoHS Compliant Yes
TAA Compliant Yes
UL Compliant No
ETL Compliant No
Country of Manufacture United States
Included Hardware 2UKIT-009 | 3UKIT-009
  • Kit Contents:
    • (2) Rail (Left & Right)
    • (2) Rear Bracket
    • (1) Cable Management Bar
    • (2) Adapter
    • (1) 30" Hook and Loop Cable Tie
  • Rack Hardware Kit:
    • (14) 12-24 Nuts
    • (14) 10-32 Pan Head Screws
    • (14) 12-24 Pan Head Screws
    • (14) 12-24 Cage Nuts "Black"
  • Mounting Hardware:
    • (9) 8-32 x .500 Flat Head Screws
    • (9) 8-32 Nuts
    • (9) 12-24 Hex Head Screws
  • Cage Nuts:
    • (2) 10-32 Cage Nuts "Silver"
    • (2) M6 Cage Nuts "Yellow"
    • (2) 12-24 Cage Nuts "Black"
Dell Part Number 1UKIT-009 - A0389974
2UKIT-009 - A5548286
3UKIT-009 - A8930303
Synnex Part Number 1UKIT-009 - 4614570
2UKIT-009 - 4614571
3UKIT-009 - 4614572
Ingram Part Number 1UKIT-009 - D34828
2UKIT-009 - 5JU692
3UKIT-009 - 4E8809
Fixed/Sliding Fixed
Finish Zinc plating
Hole Type Compatible with all standard threads including 10-32, 12-24 and metric M6
